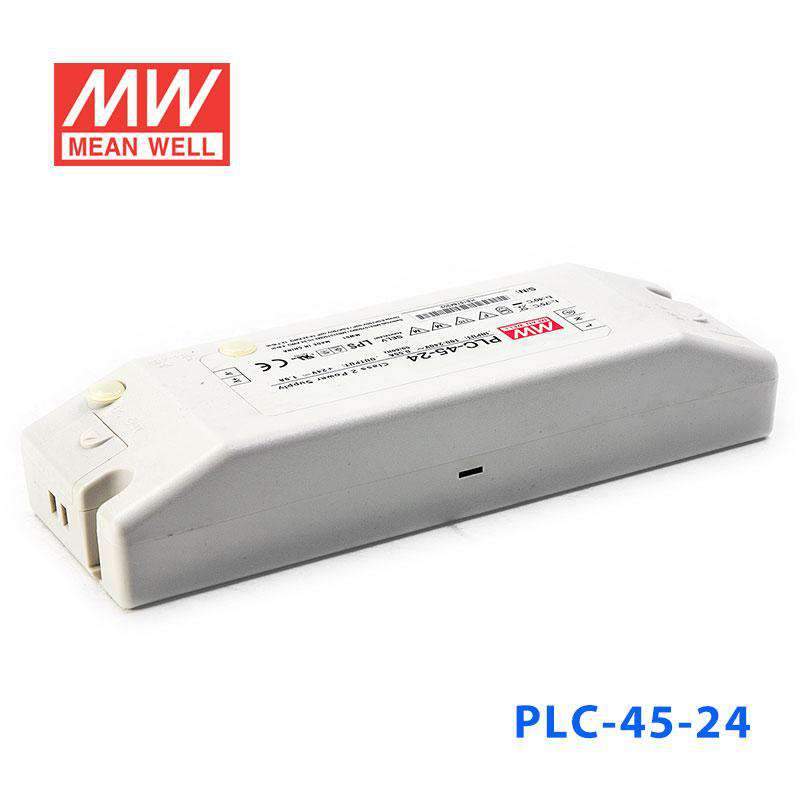

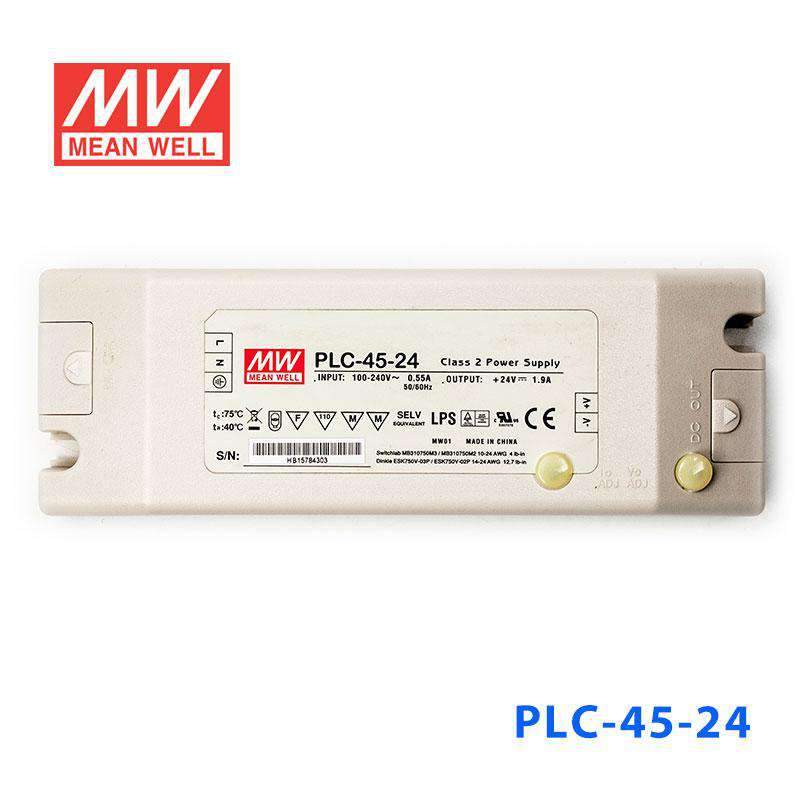

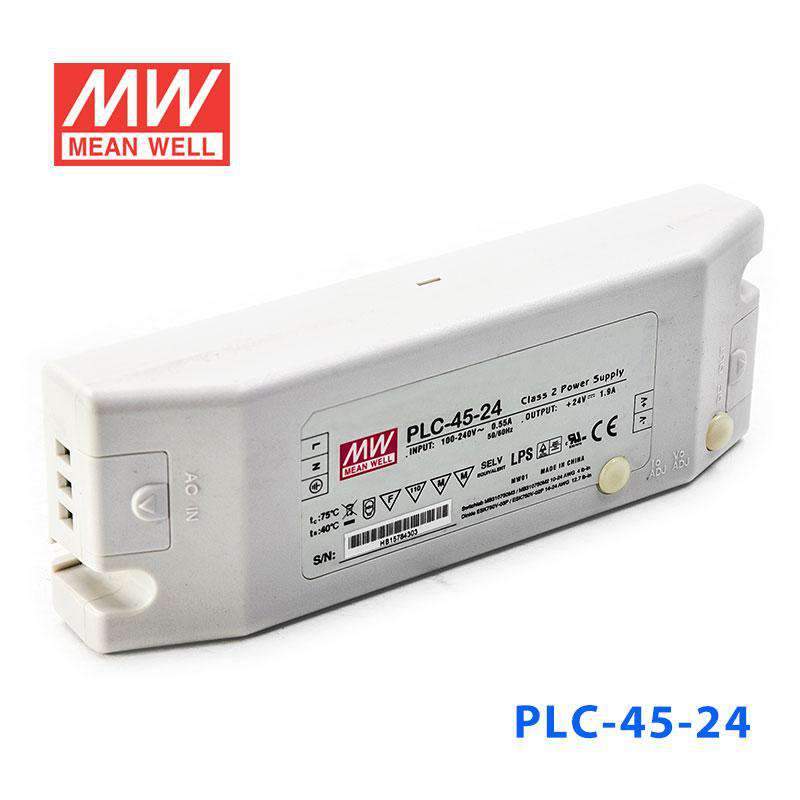

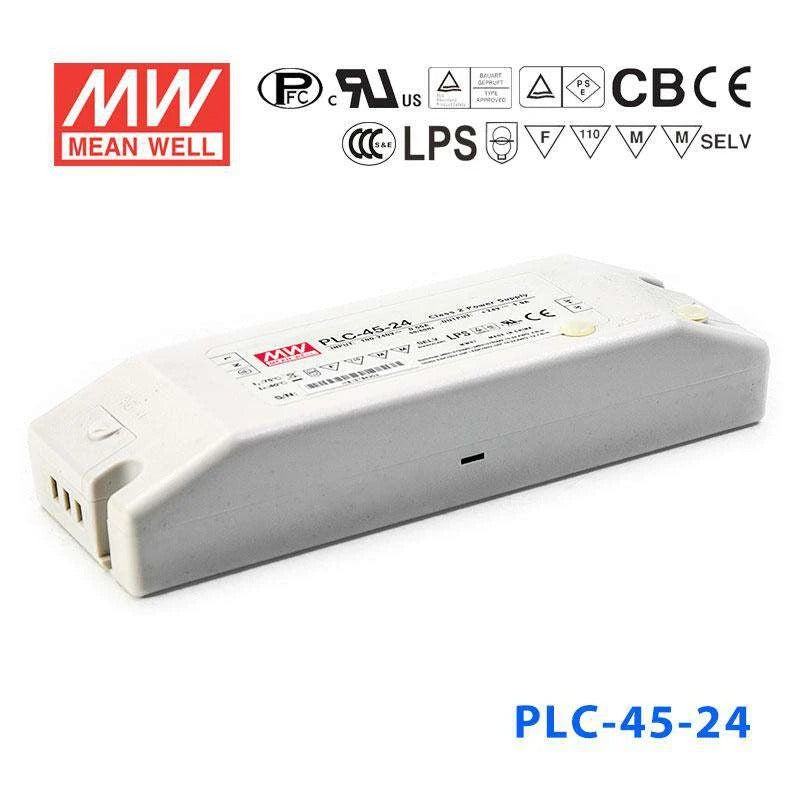

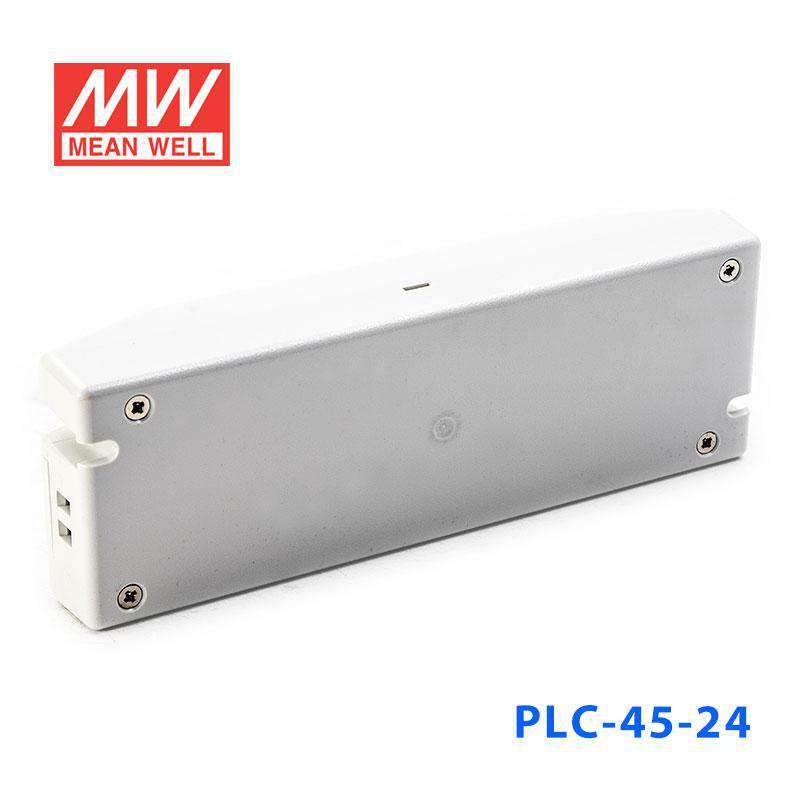

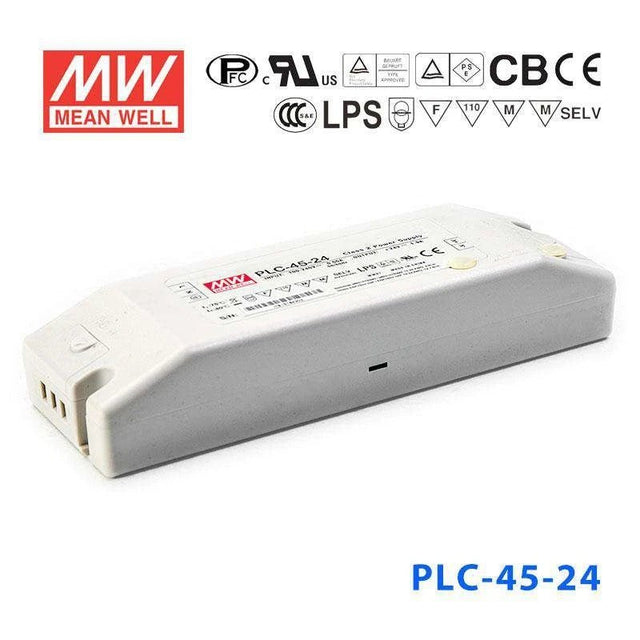

Mean Well PLC-45-24 Power Supply 45W 24V - PFC
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PLC-45-24 Power Supply 45W 24V - PFC
The PLC-45 is a 45W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+50℃).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Ul1310, TUV EN61347-1, EN61347-2-13, GB19510.14, GB19510.1, CAN/CSA C22.2 No. 223-M91(except for 48V), J61347-1, J61347-2-13 ,EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLC Series
-
Power Rating45.6 Watt
-
Output Voltage24 Volt
-
Rated Current1.9 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-30°C~50°C
-
Warranty2 Year
-
Length7.15 in
-
Width2.44 in
-
Height1.38 in
-
Weight0.9 lb
::specification::
Frequently Asked Questions
What is the Mean Well PLC-45-24 designed for?
The PLC-45-24 is a 45W 24V power supply intended for LED lighting and moving sign applications. It is a constant voltage model with built-in constant current limiting, which makes it suitable for applications that benefit from C.V. + C.C. mode behavior.
What are the main electrical ratings of the PLC-45-24?
This model is rated for 24V output, 1.9A rated current, and 45.6W power. It also supports universal AC input and includes active power factor correction for improved power performance at higher load levels.
Does the PLC-45-24 include power factor correction (PFC)?
Yes, the PLC-45-24 has built-in active PFC. The listed specification states PF greater than 0.9 at 75% load or higher, which can be important for commercial and lighting applications where power quality matters.
Is the PLC-45-24 suitable for demanding operating environments?
This power supply is rated for operation from -30°C to 50°C. It also has a fully isolated plastic case and includes protection for short circuit, over current, over voltage, and over temperature.
Does this model support dimming control?
No, the PLC-45-24 does not include a dimming control function. If dimming is required, you would need to compare it against another model that specifically lists dimming support.
What protections and compliance-related features does the PLC-45-24 offer?
The PLC-45-24 includes short circuit, over current, over voltage, and over temperature protection. It is also described as a Class 2 power unit and Pass LPS, which are relevant attributes for many LED power applications.
