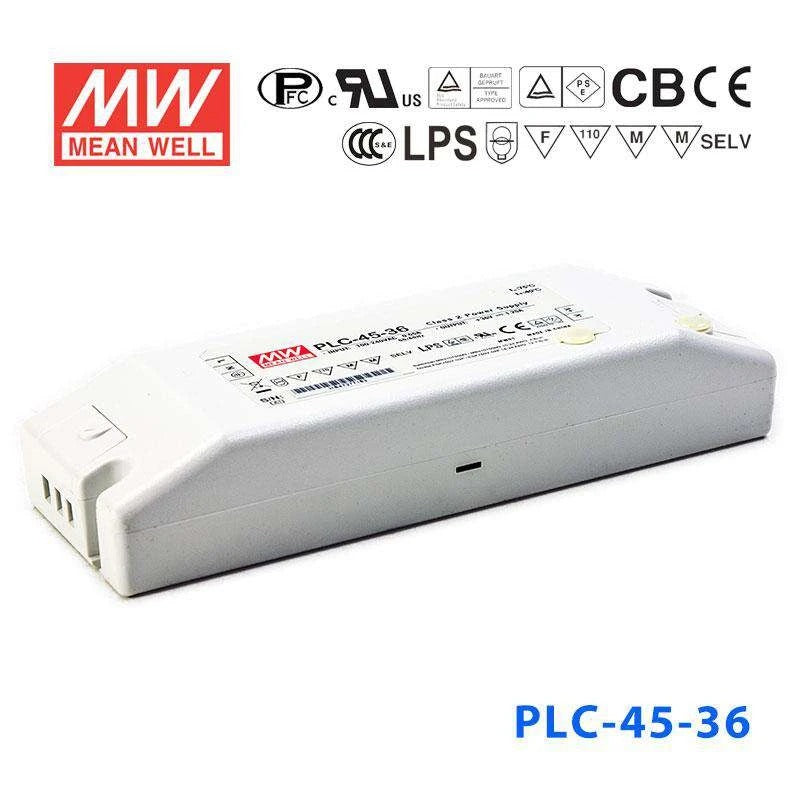

Mean Well PLC-45-36 Power Supply 45W 36V - PFC
Notify me when it's back in stock
Your order will be processed within 24 hours

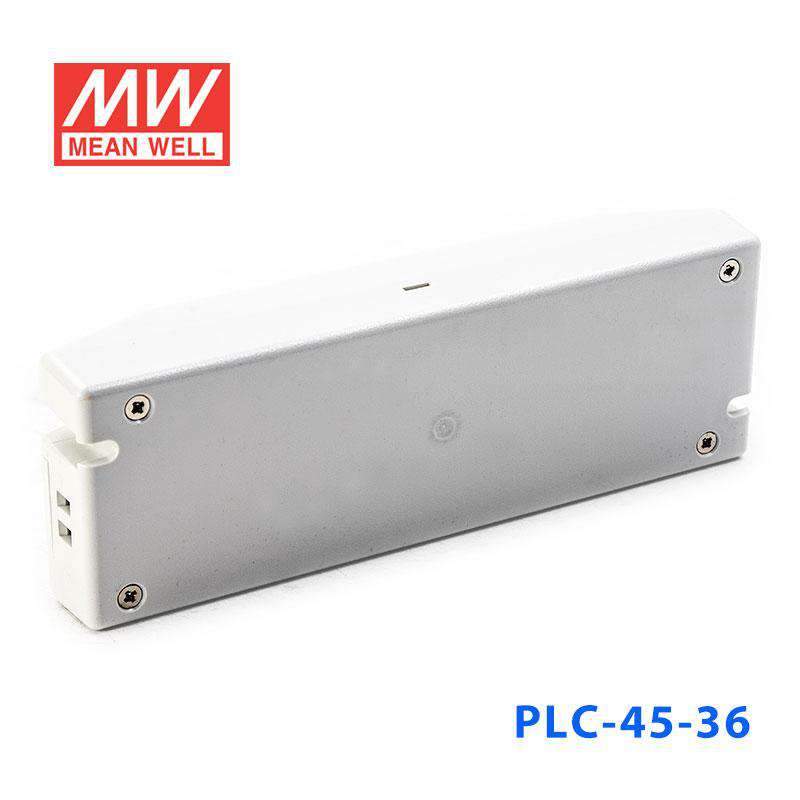

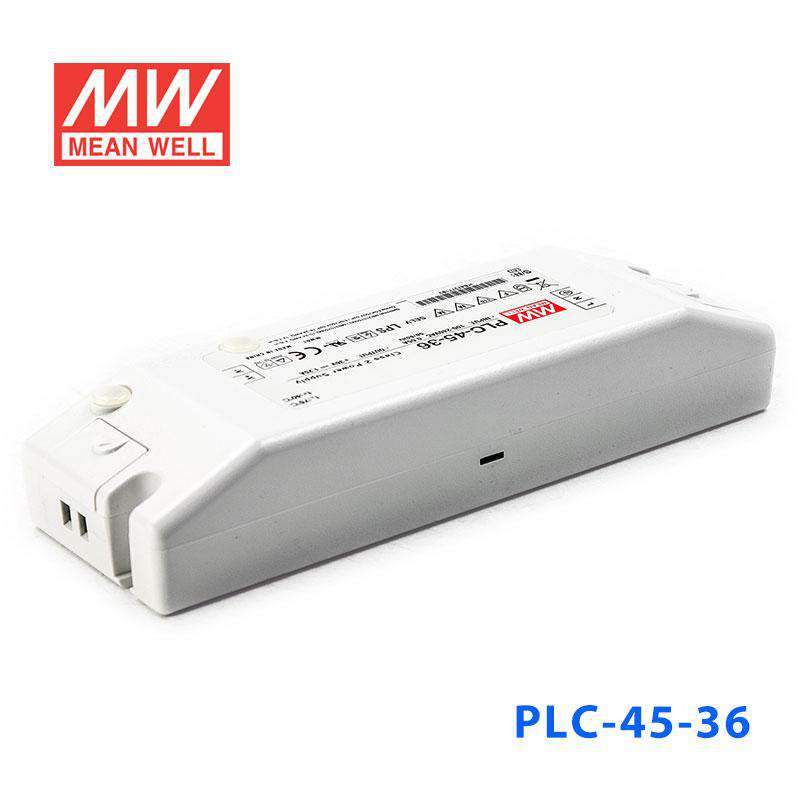

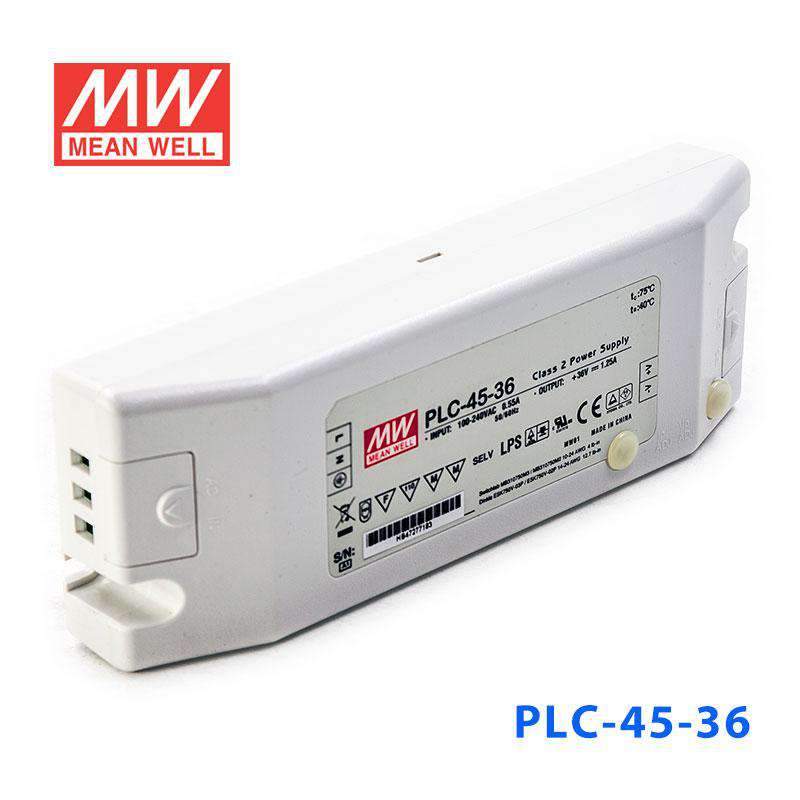

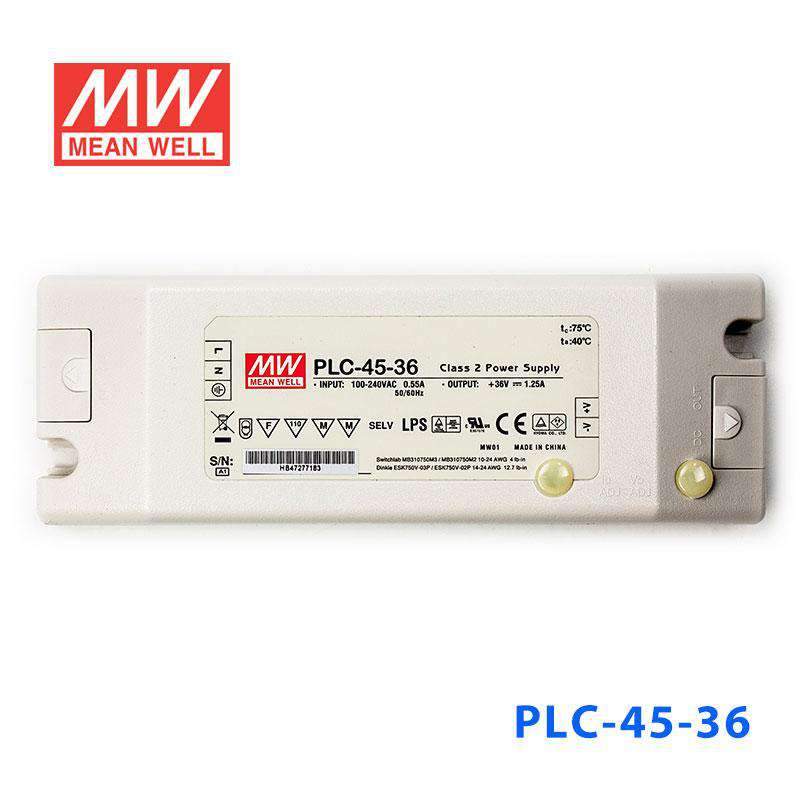

Mean Well PLC-45-36 Power Supply 45W 36V - PFC
The PLC-45 is a 45W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+50℃).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Ul1310, TUV EN61347-1, EN61347-2-13, GB19510.14, GB19510.1, CAN/CSA C22.2 No. 223-M91(except for 48V), J61347-1, J61347-2-13 ,EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLC Series
-
Power Rating45 Watt
-
Output Voltage36 Volt
-
Rated Current1.25 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-30°C~50°C
-
Warranty2 Year
-
Length7.15 in
-
Width2.44 in
-
Height1.38 in
-
Weight0.9 lb
::specification::
Frequently Asked Questions
What type of power supply is the Mean Well PLC-45-36?
The PLC-45-36 is a 45W AC/DC power supply with a 36V output. It uses a constant voltage design with built-in constant current limiting and includes active power factor correction. This model is intended for applications that need a regulated 36V DC output.
What is the output rating of the PLC-45-36?
This model is rated for 36V DC output at 1.25A, with a total power rating of 45W. Those ratings make it suitable for loads designed to operate within that voltage and current range. Buyers should match the load requirement to the unit's 36V, 1.25A capacity.
Is the PLC-45-36 suitable for LED lighting applications?
Yes, this model is described as suitable for LED lighting and moving sign applications. Its constant voltage output with built-in current limiting can be useful in systems that require a stable 36V DC supply. It is positioned as a power solution for commercial and industrial lighting-related use cases.
Does the Mean Well PLC-45-36 support dimming control?
No, the PLC-45-36 does not include a dimming control function. If a project requires integrated dimming, this model may not be the right fit. It is better suited to applications needing fixed-output 36V DC power.
What operating environment is the PLC-45-36 designed for?
The specified operating temperature range is -30°C to 50°C. It also uses a fully isolated plastic case and includes protections for short circuit, over current, over voltage, and over temperature. These characteristics make it appropriate for demanding indoor equipment environments within its rated temperature limits.
What are the key protection and performance features of the PLC-45-36?
The PLC-45-36 includes protection for short circuit, over current, over voltage, and over temperature. It also features active PFC, with PF greater than 0.9 at 75% load or higher, and efficiency up to 89%. These features help distinguish it from more basic fixed-output power supplies.
