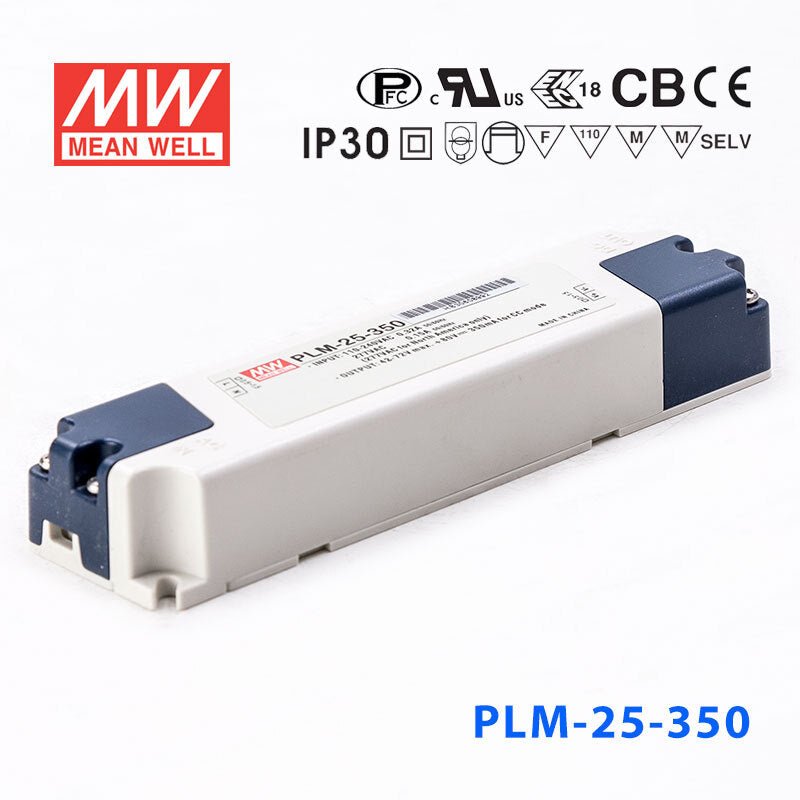

Mean Well PLM-25-350, 350mA Constant Current with PFC - Terminal Block
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PLM-25-350, 350mA Constant Current with PFC - Terminal Block
The PLM-25 is a 25W Mean Well DIN rail power converter with a 145mm profile (input range: 110~295VAC, operating temperature: -30~+45℃).
Key Features
- ✓ 145mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 110~295VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+45℃
- ✓ Protections: Short circuit
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750, CSA C22.2 No. 250.13-12(for Blank type only); ENEC EN61347-1, EN61347-2-13, EN62384, GB19510.14,GB19510.1 (for E type only) ,EAC TP TC 004, IP30
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLM Series
-
Power Rating25.2 Watt
-
Output Voltage80 Volt
-
Rated Current0.35 Ampere
-
Input Voltage110V~295V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-30°C~45°C
-
Warranty2 Year
-
Length5.71 in
-
Width1.5 in
-
Height0.87 in
-
Weight0.28 lb
::specification::
Frequently Asked Questions
Can I use the PLM-25-350 for a 350mA LED downlight?
Yes, if the fixture is built for constant current operation at 350mA and the LED load falls within the 42-72V constant-current range. This model is a constant current driver, not a constant voltage power supply.
Is the PLM-25-350 a good fit for long-series small LED arrays?
It is intended for constant current LED arrays that need 350mA and a higher forward-voltage span. The usable CC output range is 42-72V, with a 25.2W rating.
Can this driver power constant current signage modules with a higher total forward voltage?
Yes, if the signage module string is designed for 350mA constant current and its total forward voltage stays within 42-72V. It should not be used in place of a constant voltage supply for fixed-voltage signage products.
What makes the PLM-25-350 compatible or incompatible with my LED load?
The LED load must require 350mA constant current, and its combined forward voltage must remain inside the 42-72V CC range. The number of LEDs depends on each LED's forward voltage, so compatibility is determined by current and total voltage rather than a specific LED quantity.
Can the PLM-25-350 handle cold or warm operating conditions?
Its specified operating temperature range is -30°C to +45°C. That gives it a defined working range for temperature-sensitive LED driver applications, but the product data does not list an IP rating for wet or dust-heavy environments.
