Mean Well PLP-45-48 Single Output LED Driver 45W
Notify me when it's back in stock
Your order will be processed within 24 hours

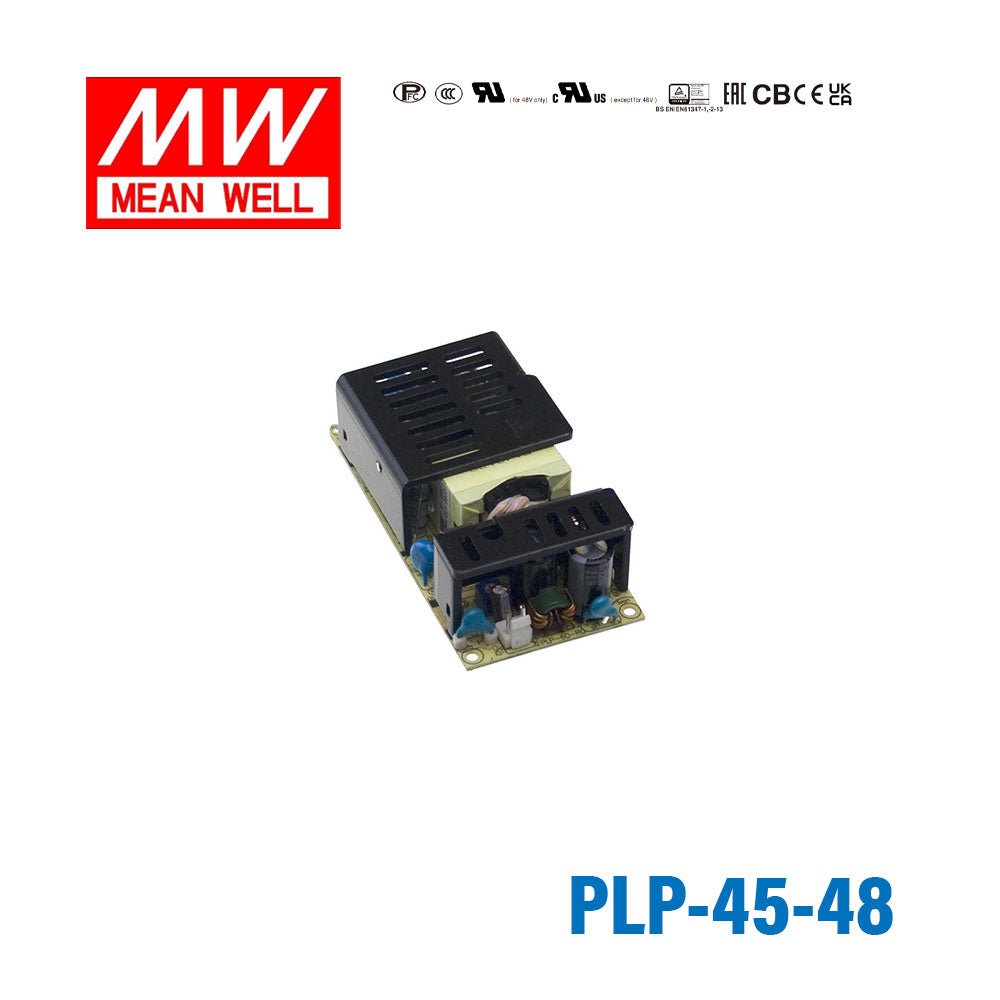

Mean Well PLP-45-48 Single Output LED Driver 45W
The PLP-45 is a 45W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: GB19510.1,GB19510.14,UL8750, TUV BS EN/EN61347-1, BS EN/EN61347-2-13, CSA C22.2 No. 250.0-08(except for 48V), EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLP Series
-
Power Rating45 Watt
-
Output Voltage48 Volt
-
Rated Current0.95 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length4 in
-
Width2 in
-
Height1.17 in
-
Weight0.35 lb
::specification::
Frequently Asked Questions
What type of product is the Mean Well PLP-45-48?
The Mean Well PLP-45-48 is a single output LED driver rated for 45W. It provides a 48V output and is designed for built-in LED lighting applications where a constant, reliable power source is needed.
What are the main electrical ratings of the PLP-45-48?
This model is rated for 45W output power with a 48V output voltage and 0.95A rated current. It also supports a universal AC input range of 90 to 264VAC, which helps it fit a wide range of commercial and industrial power environments.
Is the Mean Well PLP-45-48 dimmable?
No, the PLP-45-48 is a non-dimmable LED driver. It is better suited to applications that require stable fixed-output power rather than lighting systems that need dimming control.
Can the output current be adjusted on this LED driver?
Yes, the output current level on the PLP-45-48 is adjustable. The listed DC adjustment range is 75% to 100% of rated current, which can help when matching the driver to compatible LED load requirements.
Is the PLP-45-48 suitable for demanding temperature conditions?
This model is rated for operation from -30°C to 70°C. That makes it a practical option for LED lighting projects exposed to a broad range of ambient temperatures, provided the overall application stays within the product's specified limits.
What protection features does the Mean Well PLP-45-48 include?
The PLP-45-48 includes protection for short circuit, overload, and over voltage conditions. These built-in protections support reliability in professional LED lighting applications and help distinguish it from more basic power units.
