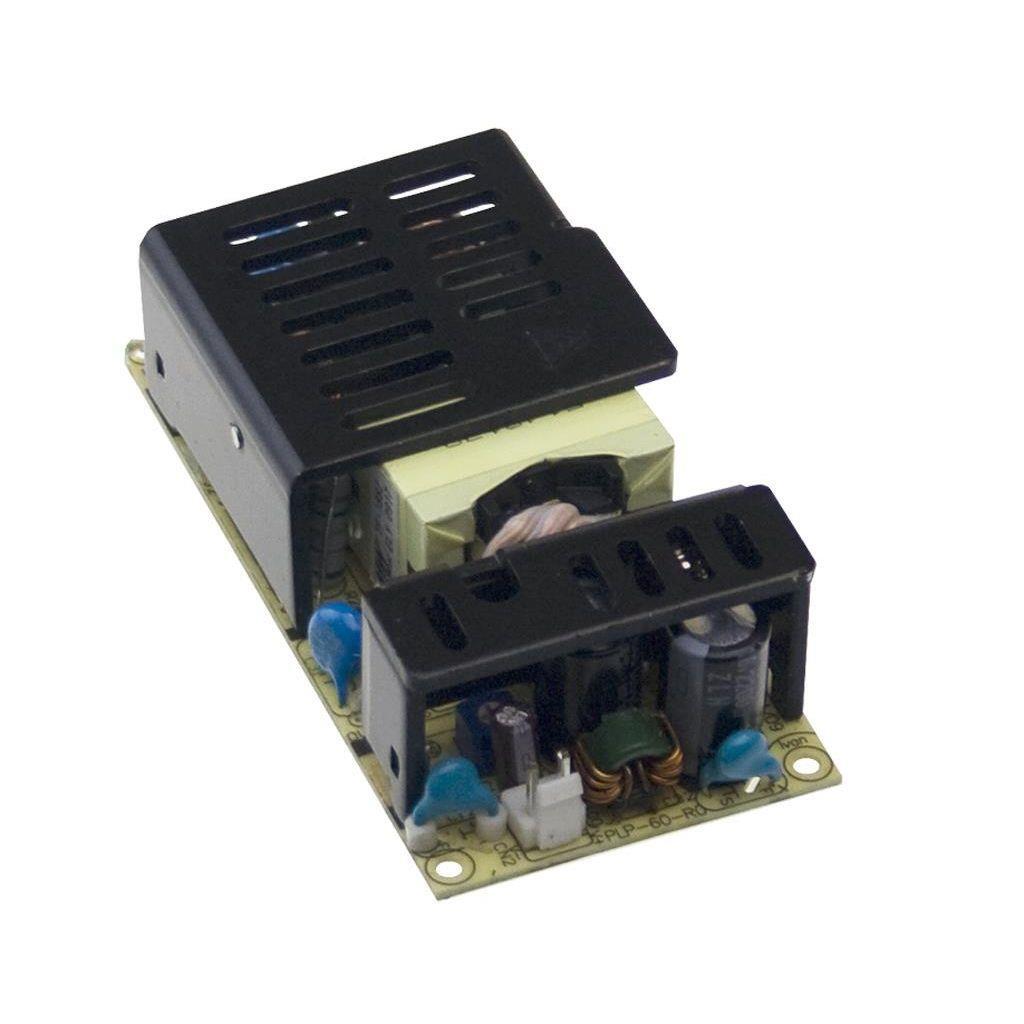

Mean Well PLP-45-12 Single Output LED Driver 45W
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PLP-45-12 Single Output LED Driver 45W
The PLP-45 is a 45W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: GB19510.1,GB19510.14,UL8750, TUV BS EN/EN61347-1, BS EN/EN61347-2-13, CSA C22.2 No. 250.0-08(except for 48V), EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLP Series
-
Power Rating45 Watt
-
Output Voltage12 Volt
-
Rated Current3.8 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length4 in
-
Width2 in
-
Height1.17 in
-
Weight0.35 lb
::specification::
Frequently Asked Questions
What are the main electrical ratings of the Mean Well PLP-45-12?
The PLP-45-12 is a 45W single-output LED driver with a 12V DC output and a rated current of 3.8A. It accepts a universal AC input range of 90 to 264VAC, with active PFC built in. This makes it a compact option for applications that need a regulated 12V output within that power class.
Is the PLP-45-12 dimmable?
No. This model is specified as non-dimmable, so it is intended for applications that need a fixed output rather than integrated dimming control. Buyers who need dimming functionality should treat that as a separate requirement when comparing driver options.
What kinds of LED applications is the PLP-45-12 designed for?
Mean Well lists the PLP-45-12 as suitable for built-in LED lighting applications. Its 12V output and 45W power rating make it relevant for LED systems that match those electrical requirements. It is best evaluated against fixtures or assemblies that call for a 12V driver in this output range.
What protection features does the Mean Well PLP-45-12 include?
This model includes short circuit, overload, and over-voltage protection. Those built-in protections help support reliability in normal LED power applications. Mean Well also states that the unit receives a 100% full-load burn-in test.
What operating temperature range is the PLP-45-12 rated for?
The specified operating temperature range is -30°C to 70°C. Cooling is by free air convection, so the product is designed to run without forced-air cooling under appropriate conditions. This range makes it suitable for a broad set of indoor and enclosed equipment environments where those temperatures apply.
Is the PLP-45-12 a good fit for a 12V LED system that draws up to 3.8A?
It is designed for a 12V output with a rated current of 3.8A, so it aligns with LED applications that require those electrical values. Buyers should confirm that the target load matches the driver's 12V output and stays within its 45W rating. It is also identified as a Class 2 power unit, which may matter for project selection requirements.
What warranty comes with the Mean Well PLP-45-12?
The listed warranty period for the PLP-45-12 is 2 years. That matches the product description provided for this model. For buyers comparing Mean Well drivers, the warranty can be one useful factor alongside output rating and application fit.
