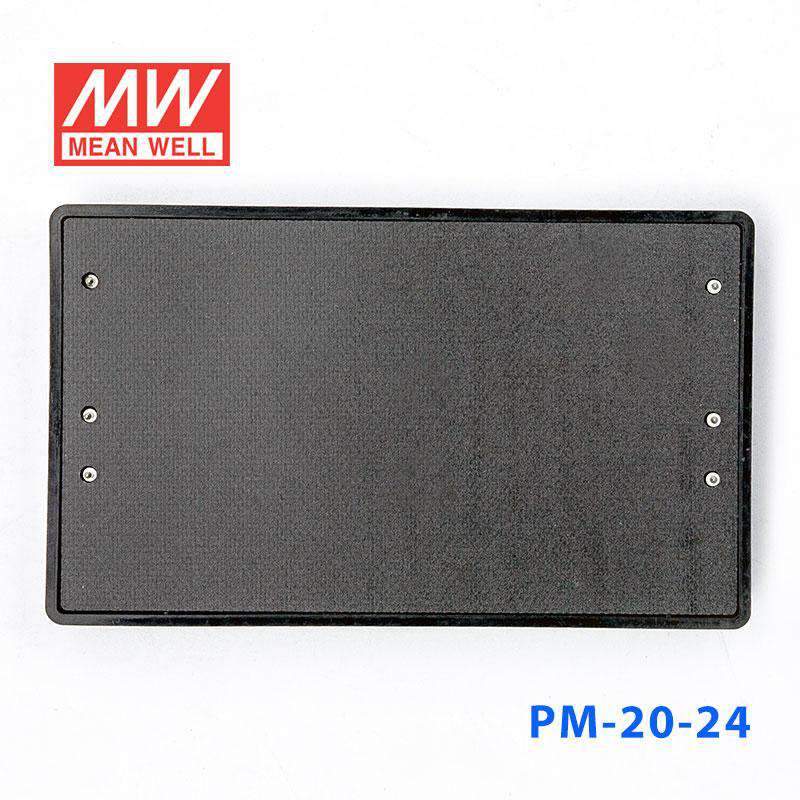

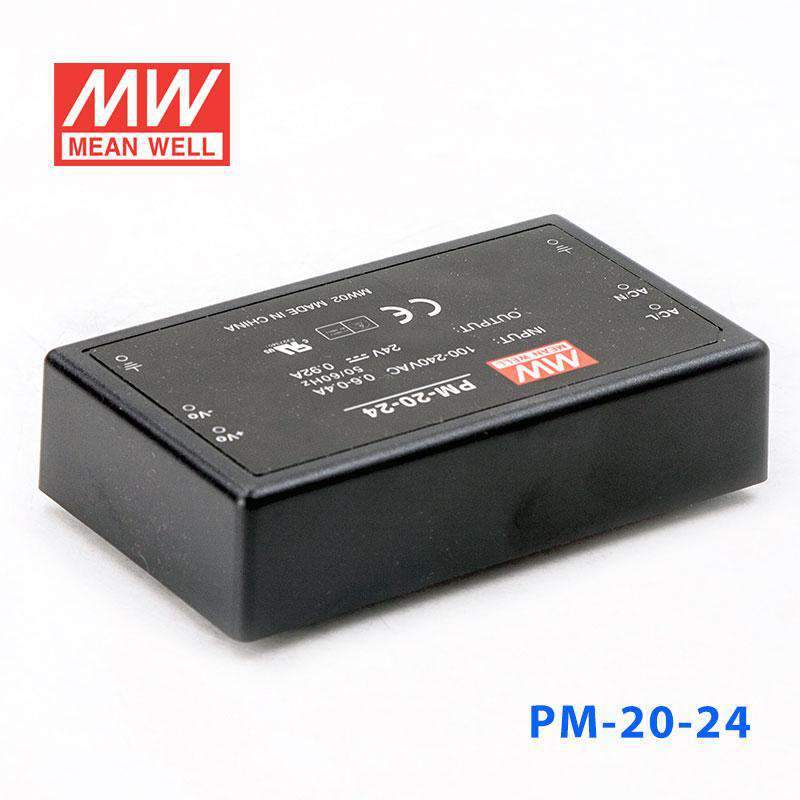

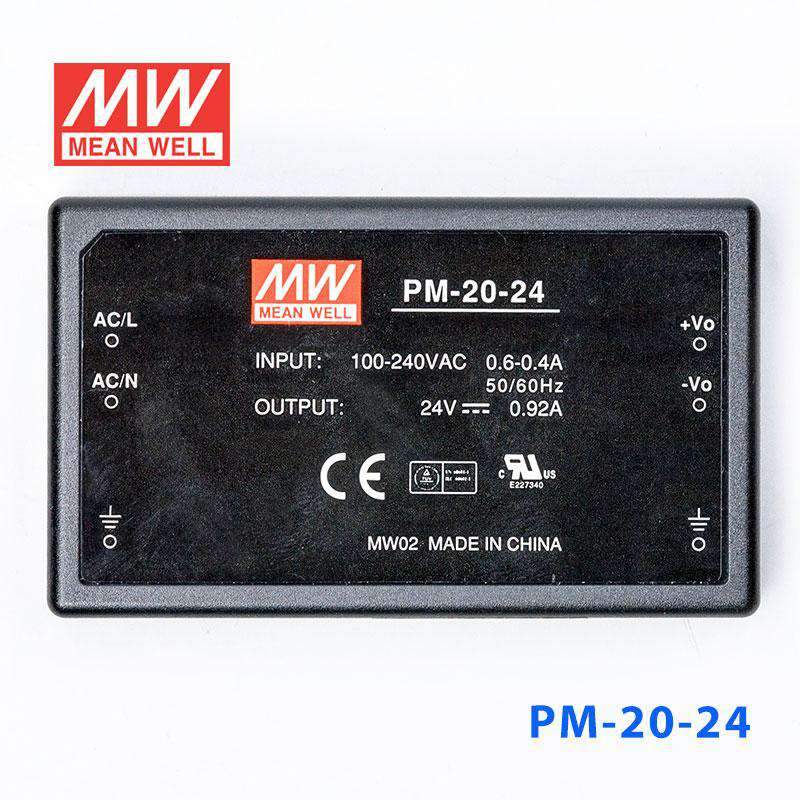

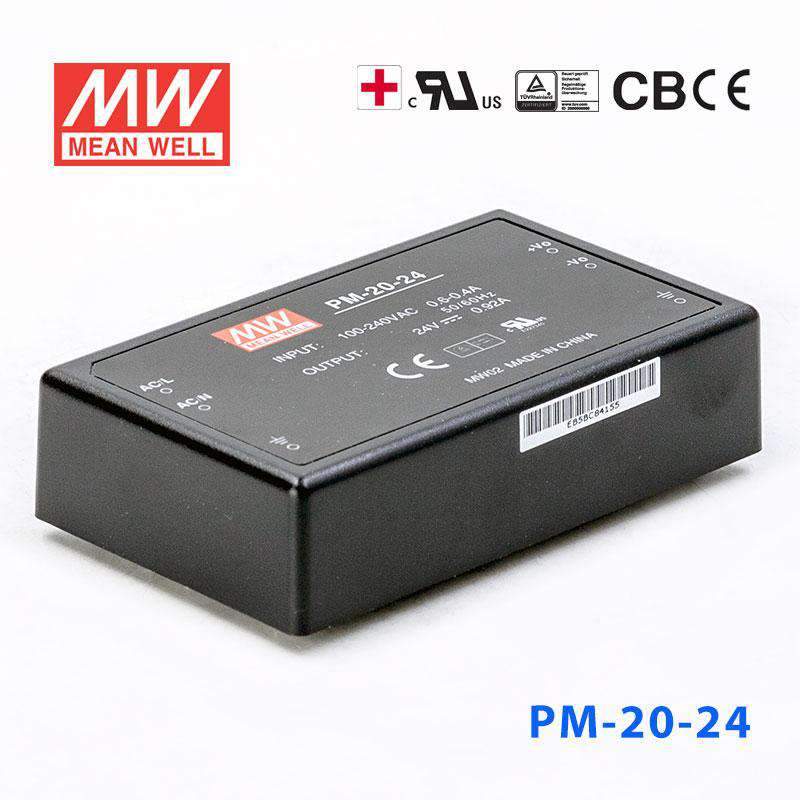

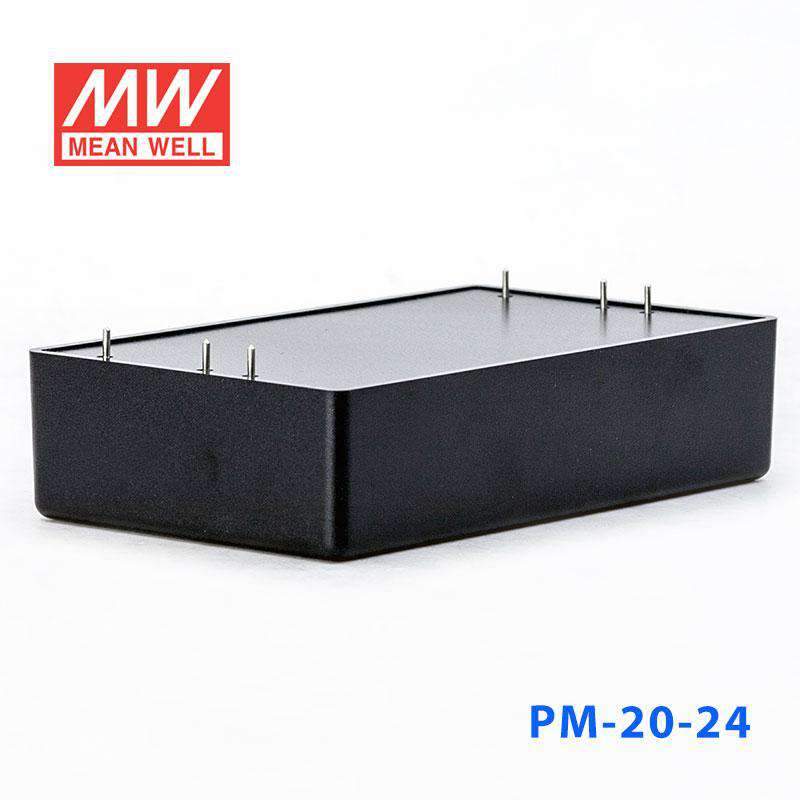

Mean Well PM-20-24 Power Supply 20W 24V
The PM-20 is a 20W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL SAFETY &
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPM Series
-
Power Rating22.08 Watt
-
Output Voltage24 Volt
-
Rated Current0.92 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty3 Year
-
Length3.7 in
-
Width2.2 in
-
Height0.89 in
-
Weight0.4 lb
::specification::
Frequently Asked Questions
Can I use the PM-20-24 for a compact 24V automation load?
Yes, it provides a constant 24V output with up to 0.92A available. That suits small 24V automation loads when the total demand stays within 22.08W and 0.92A.
Is the PM-20-24 suitable for 24V control devices inside industrial equipment?
It can support 24V control devices that need regulated DC power and do not exceed 0.92A output current. The maximum output power is 22.08W.
Can this model power 24V embedded interfaces or monitoring modules?
It is designed for constant-voltage 24V output, so it can be used with embedded interfaces or monitoring modules built for 24V DC input. Load sizing should stay within the unit's 22.08W and 0.92A ratings.
How much 24V load can the PM-20-24 handle?
The unit is rated for 24V output at 0.92A, with 22.08W total power. For compatibility, the connected 24V equipment should stay at or below those current and power limits.
Is the PM-20-24 suitable for outdoor or temperature-variable areas?
Its published operating temperature range is -20°C to +60°C. No IP rating is listed, so the specs do not confirm enclosure protection for exposed outdoor, damp, or washdown environments.
