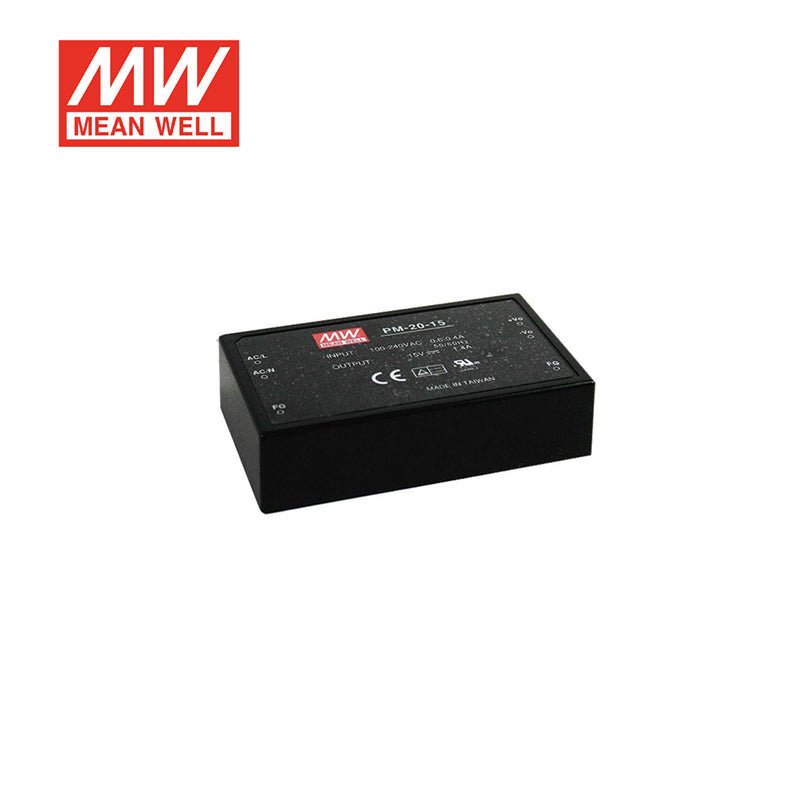

Mean Well PM-20-15 On Board Switching Power Supply

$17.43 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range
Low leakage current <300uA
Protections: Short circuit / Overload / Over voltage
Ultra-miniature size, light weight
Cooling by free air convection
Medical safety approved (2 x MOPP between primary to secondary)
No load power consumption<0.75W
100% full load burn-in test
Fixed switching frequency at 90KHz
High reliability
Suitable for BF application with appropriate system consideration
3 years warranty

General Specification

Line regulation (max.) ± 0.5%
Load regulation (max.) ± 1.0%
Overload protection Range Above 105% rated output power
Overload protection Type Hiccup mode, recovers automatically after fault condition is removed
Over-voltage protection Shut off o/p voltage, clamping by zener diode
Withstand voltage I/P-O/P:4KVAC | I/P-FG:2KVAC | O/P-FG:1.5KVAC
Isolation resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH
Working temperature -20 ~ +60 ℃ (Refer to "Derating Curve")
Safety standards ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1 approved
Dimension (LxWxH) (mm) 94*56*22.7mm (L*W*H)
Packing 0.18Kg; 90pcs/17.2Kg/0.94CUFT

Specifications

  • Brand
    Mean Well
  • Series
    PM Series
  • Power Rating
    21 Watt
  • Output Voltage
    15 Volt
  • Rated Current
    1.4 Ampere
  • Input Voltage
    85V~264V
  • No of Output
    1
  • Dimming Control
    Non Dimmable
  • Standards Met
    CB,CCC,CE,cUL,EAC,FCC
  • Operating Temperature
    -20°C~60°C
  • Warranty
    3 Year
  • Length
    3.7 in
  • Width
    2.2 in
  • Height
    0.87 in
  • Weight
    0.4 lb

File Downloads
