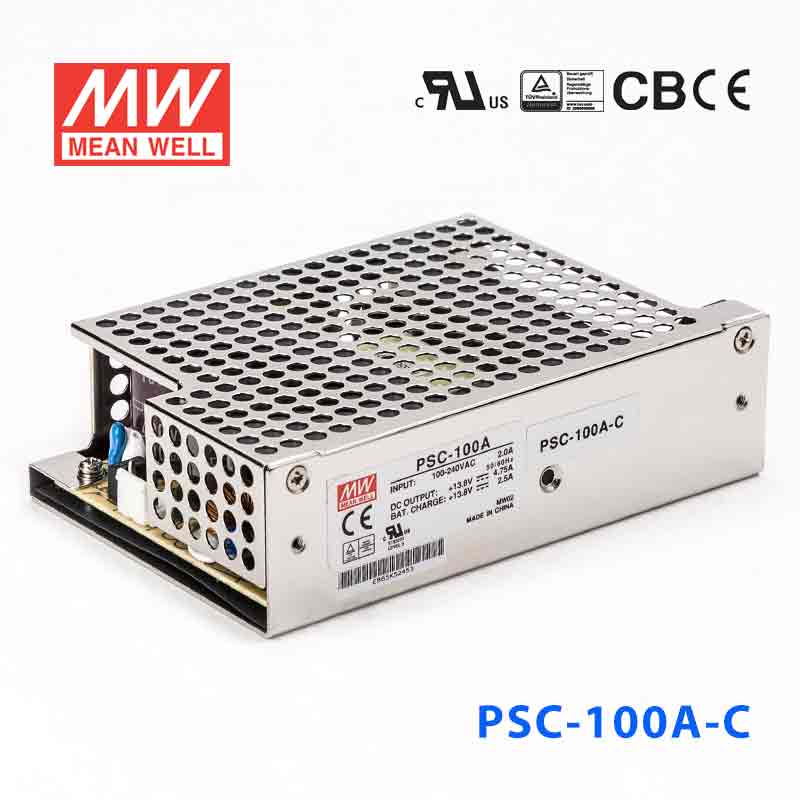

Mean Well PSC-100A-C Battery Chargers 100.05W 13.8V 4.75A - PFC
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PSC-100A-C Battery Chargers 100.05W 13.8V 4.75A - PFC
<1mA / 240VAC
Key Features
- ✓Universal AC input / Full range
- ✓5"x3" compact size
- ✓Models with L-Bracket and cover available(PSC-100x-C, x=A,B)
- ✓Protections: Short circuit/Overload/Over voltage
- ✓Battery low protection/Battery reverse polarity protection by fuse
- ✓Relay contact signal output for AC OK and Battery low
- ✓Cooling by free convection
- ✓100% full load burn-in test
- ✓2 years warranty
-
BrandMean Well
-
SeriesPSC Series
-
Power Rating100.05 Watt
-
Output Voltage13.8 Volt
-
Rated Current4.75 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty2 Year
-
Length5.12 in
-
Width3.35 in
-
Height1.46 in
-
Weight0.97 lb
::specification::
Frequently Asked Questions
Can I use the PSC-100A-C for 13.8V backup power in industrial monitoring or automation equipment?
The PSC-100A-C provides 13.8V DC in constant-voltage mode with up to 4.75A and 100.05W available. That suits equipment built for a 13.8V battery-backed DC bus, provided the total load does not exceed 4.75A or 100.05W.
Is the PSC-100A-C appropriate for telecom, radio, or communications hardware that uses a 13.8V DC bus?
It is designed around a 13.8V constant-voltage output and can supply up to 4.75A. For communications hardware that is specified for 13.8V operation, those output limits define whether the unit is a match.
Can the PSC-100A-C support battery-backed embedded systems or industrial controllers during AC interruptions?
This model includes a UPS function and delivers up to 100.05W at 13.8V. That makes it relevant for embedded or control equipment intended to run on a 13.8V battery-backed supply, as long as the current stays within 4.75A.
Is the PSC-100A-C suitable for use in global OEM equipment shipped to different AC power regions?
The input range is 90-264VAC, so the supply can operate across a broad AC mains range without changing the DC output rating. The output remains 13.8V constant voltage at up to 4.75A and 100.05W.
Can the PSC-100A-C be used in hot or cold indoor electrical cabinets?
The rated operating temperature is -20°C to +70°C, which supports use across a wide ambient range. The provided specifications do not include an IP rating, so dust-tight or outdoor exposure suitability cannot be confirmed from the listed data.
What practical differences should I note between the PSC-100A and PSC-100A-C form factors?
Both versions are rated 100.05W, 13.8V, and 4.75A with the same -20°C to +70°C operating temperature range, certifications, and 2-year warranty. The PSC-100A-C is larger and heavier at 130.0 × 85.0 × 37.0 mm and 0.44 kg, while the PSC-100A is 127.0 × 76.2 × 31.0 mm and 0.23 kg.
