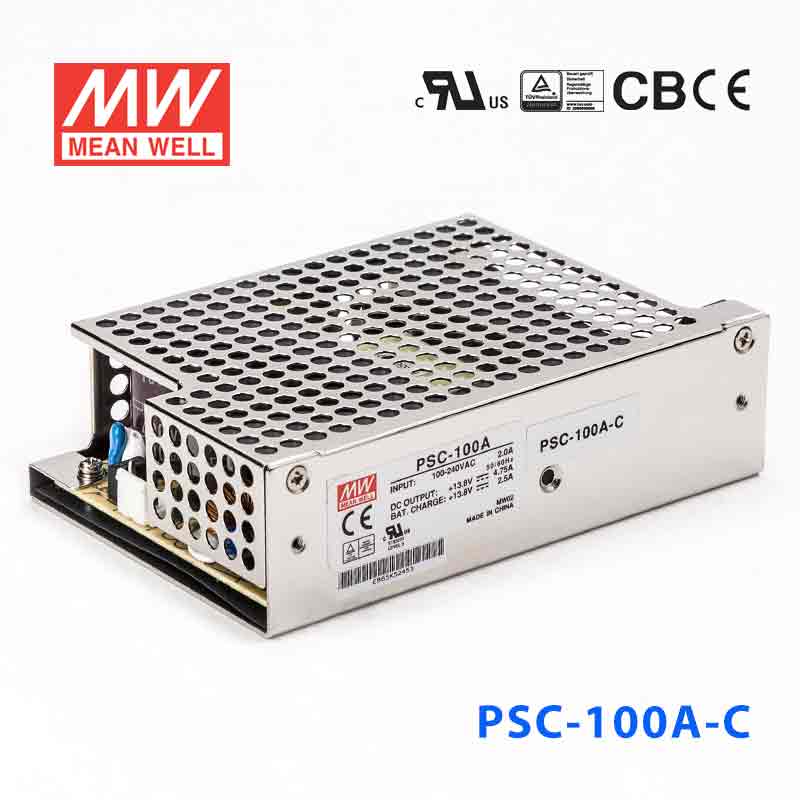

Mean Well PSC-100A-C Battery Chargers 100.05W 13.8V 4.75A - PFC

with UPS function, models with L-bracket and cover available(-C type)
$44.14 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range
5"x3" compact size
Models with L-Bracket and cover available(PSC-100x-C, x=A,B)
Protections: Short circuit/Overload/Over voltage
Battery low protection/Battery reverse polarity protection by fuse
Relay contact signal output for AC OK and Battery low
Cooling by free convection
100% full load burn-in test
2 years warranty

General Specification

AC input voltage range 90~264VAC; 127~370VDC
AC inrush current COLD START 35A/115VAC; 70A/230VAC
Leakage current

<1mA / 240VAC

Overload protection 105%~150% rated output power
Over-voltage protection 105%~135% rated output voltage
Setup, rise, hold up time 2400ms, 30ms/230VAC; 2400ms, 30ms/115VAC at full load; 40ms/230VAC; 14ms/115VAC at full load
Withstand voltage I/P-O/P:3KVAC; I/P-FG:2KVAC; O/P-FG:0.5KVAC
Working temperature -20 ~ +70℃ (Refer to "Derating Curve")
Vibration 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, and Z axes
Safety standards UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
Dimension (LxWxH) 127x76.2x31 mm
Packing 63pcs / 15.5kg

Specifications

  • Brand
    Mean Well
  • Series
    PSC Series
  • Power Rating
    100.05 Watt
  • Output Voltage
    13.8 Volt
  • Rated Current
    4.75 Ampere
  • Input Voltage
    90V~264V
  • No of Output
    1
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~70°C
  • Warranty
    2 Year
  • Length
    5.12 in
  • Width
    3.35 in
  • Height
    1.46 in
  • Weight
    0.97 lb
