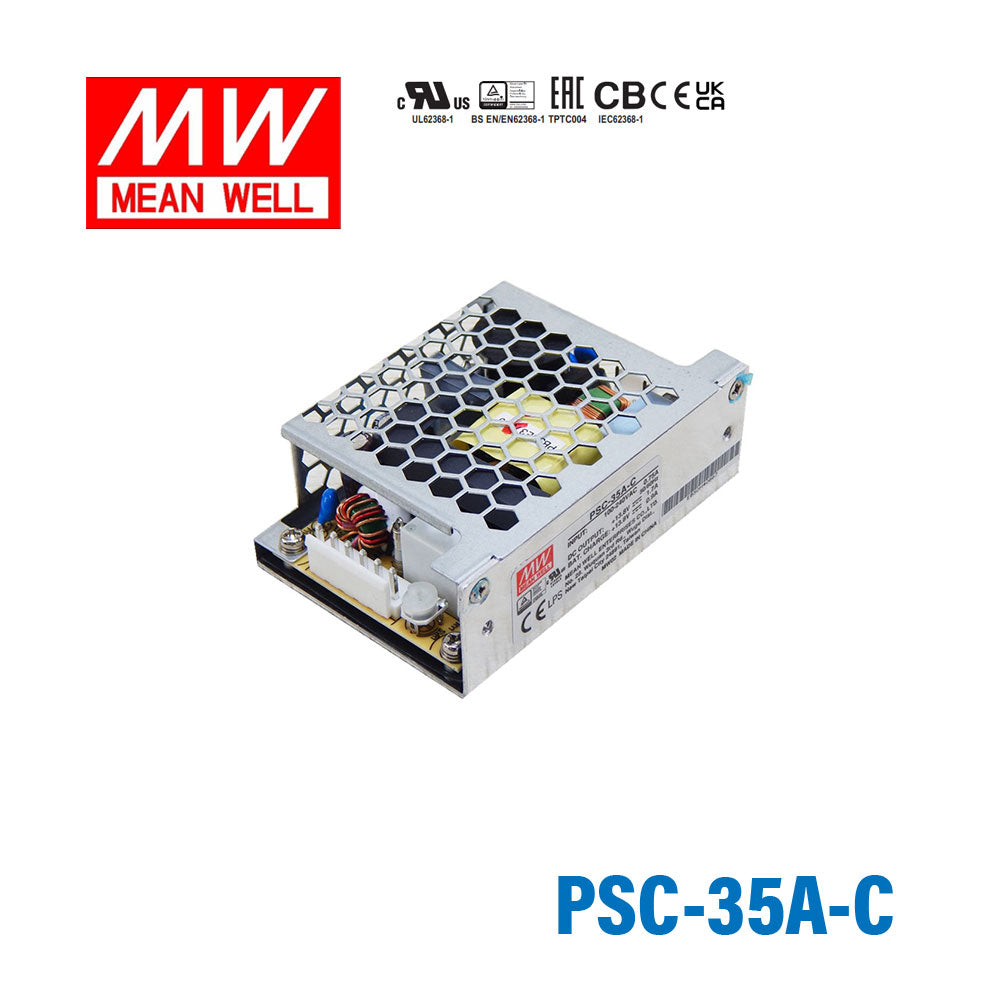

Mean Well PSC-35A-C Battery Chargers 35.88W 13.8V 1.7A - PFC
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PSC-35A-C Battery Chargers 35.88W 13.8V 1.7A - PFC
<1mA/240VAC
Key Features
- ✓Universal AC input / Full range
- ✓3.3"x2" compact PCB size
- ✓Models with L-Bracket and cover available (PSC-35x-C, X=A, B)
- ✓Protections: Short circuit/Overload/Over voltage
- ✓Battery low protection/Battery reverse polarity protection by fuse
- ✓Alarm signal for AC OK and Battery low
- ✓Cooling by free convection
- ✓100% full load burn-in test
- ✓2 years warranty
-
BrandMean Well
-
SeriesPSC Series
-
Power Rating35.88 Watt
-
Output Voltage13.8 Volt
-
Rated Current1.7 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length3.4 in
-
Width2.35 in
-
Height1.18 in
-
Weight0.32 lb
::specification::
Frequently Asked Questions
Can I use the PSC-35A-C in a small 12V industrial standby power application?
It delivers 13.8V constant-voltage output at up to 1.7A, with 35.88W total output power. That makes it a fit for smaller 12V-class standby applications that need UPS function support and stay within those limits.
Is the PSC-35A-C suitable for compact embedded or control devices with 12V battery backup?
Yes, for lower-power systems it offers 13.8V and 1.7A from a 90-264VAC input range. It fits embedded, control, or instrumentation use cases where the required charging or backup power does not exceed 35.88W.
Can the PSC-35A-C be used where a covered version of a 13.8V charger is preferred?
This model has the same 13.8V, 1.7A, and 35.88W electrical rating as the PSC-35A, and the feature list notes that -C types are models with L-bracket and cover available. It is relevant when the application calls for that covered variant while staying in the same low-power 12V-class range.
Can the PSC-35A-C be used outdoors or in washdown areas?
The listed operating temperature range is -30°C to +70°C, but the provided specs do not show an IP rating. Without an IP rating in the spec set, outdoor or washdown use should not be assumed.
What is the difference between PSC-35A-C and the other 13.8V PSC options?
PSC-35A-C is rated at 35.88W, 13.8V, and 1.7A, while PSC-60A and PSC-60A-C are 59.34W and 2.8A, PSC-100A and PSC-100A-C are 100.05W and 4.75A, and PSC-160A and PSC-160A-C are 160W and 7.6A. Compared with PSC-35A, the PSC-35A-C keeps the same electrical rating but has dimensions of 86.4 × 59.6 × 30.0 mm and weight of 0.145 kg.
