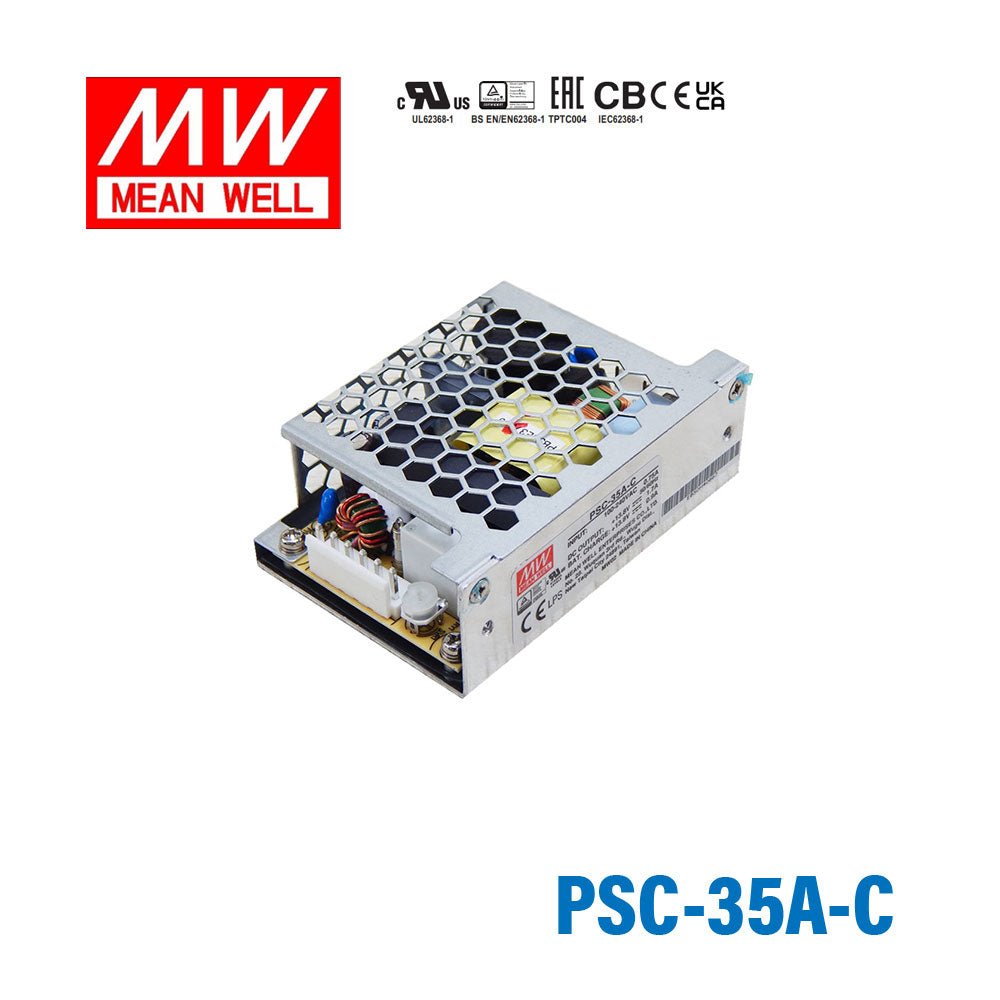

Mean Well PSC-35A-C Battery Chargers 35.88W 13.8V 1.7A - PFC

Name: Mean Well PSC-35A-C Battery Chargers 35.88W 13.8V 1.7A - PFC
Brand: Mean Well
SKU: PSC-35A-C
Price: 20.75 USD
Availability: InStock

with UPS function, models with L-bracket and cover available(-C type)

SKU:

PSC-35A-C

$20.75 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range

3.3"x2" compact PCB size

Models with L-Bracket and cover available (PSC-35x-C, X=A, B)

Protections: Short circuit/Overload/Over voltage

Battery low protection/Battery reverse polarity protection by fuse

Alarm signal for AC OK and Battery low

Cooling by free convection

100% full load burn-in test

2 years warranty

General Specification

AC input voltage range	90~264VAC; 127~370VDC
AC inrush current	Cold start 20A/115VAC; 40A/230VAC
Leakage current	<1mA/240VAC
Overload protection	105%~150% rated output power
Over voltage protection	105%~141% rated output voltage
Setup, rise, hold up time	800ms, 50ms, 50ms
Withstand voltage	I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC
Working temperature	-30~+60°C
Vibration	10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Safety standards	UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
EMC standards	EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Case No.	235A-D & 235A-T
Dimension (LxWxH)	84.6x50.8x24 mm
Packing	90pcs / 9.28kg

Specifications

Brand

Mean Well
Series

PSC Series
Power Rating

35.88 Watt
Output Voltage

13.8 Volt
Rated Current

1.7 Ampere
Input Voltage

90V~264V
No of Output

1
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

2 Year
Length

3.4 in
Width

2.35 in
Height

1.18 in
Weight

0.32 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Features

Universal AC input / Full range

3.3"x2" compact PCB size

Models with L-Bracket and cover available (PSC-35x-C, X=A, B)

Protections: Short circuit/Overload/Over voltage

Battery low protection/Battery reverse polarity protection by fuse

Alarm signal for AC OK and Battery low

Cooling by free convection

100% full load burn-in test

2 years warranty

General Specification

AC input voltage range

90~264VAC; 127~370VDC

AC inrush current

Cold start 20A/115VAC; 40A/230VAC

Leakage current

<1mA/240VAC

Overload protection

105%~150% rated output power

Over voltage protection

105%~141% rated output voltage

Setup, rise, hold up time

800ms, 50ms, 50ms

Withstand voltage

I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC

Working temperature

-30~+60°C

Vibration

10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

Safety standards

UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved

EMC standards

EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11

Case No.

235A-D & 235A-T

Dimension (LxWxH)

84.6x50.8x24 mm

Packing

90pcs / 9.28kg
