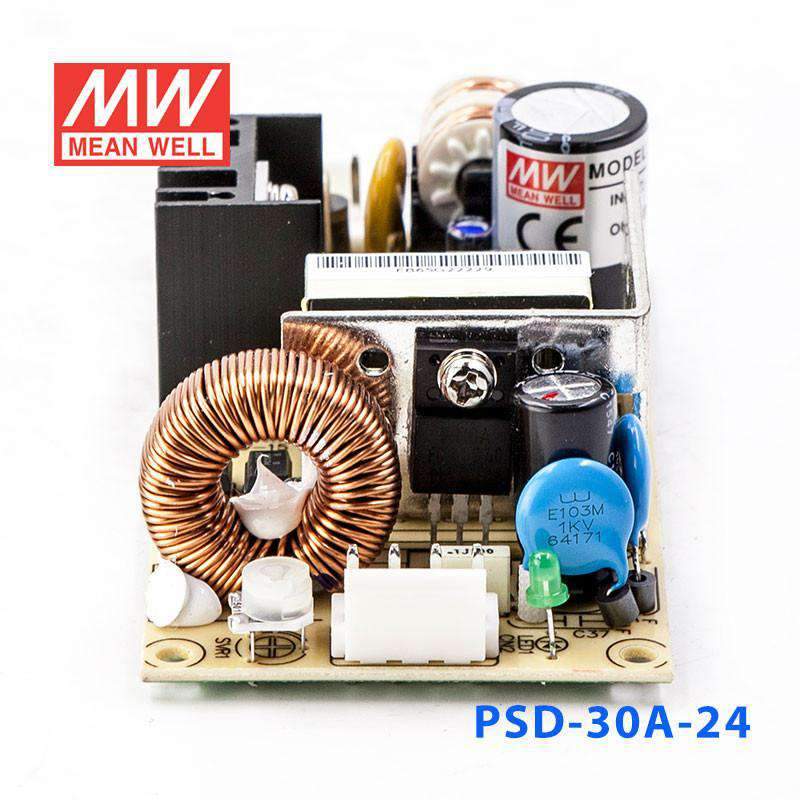

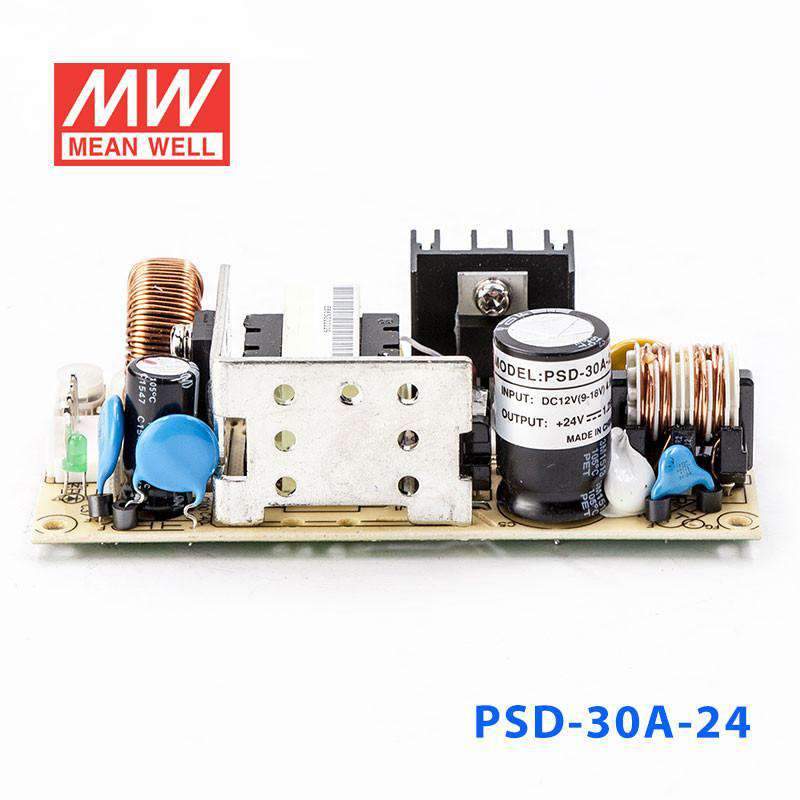

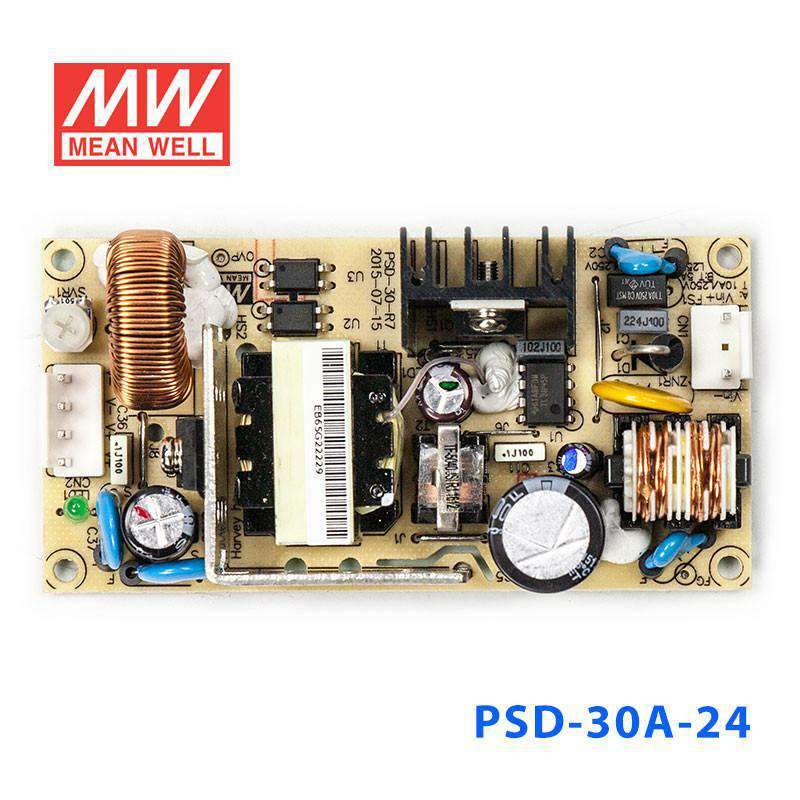

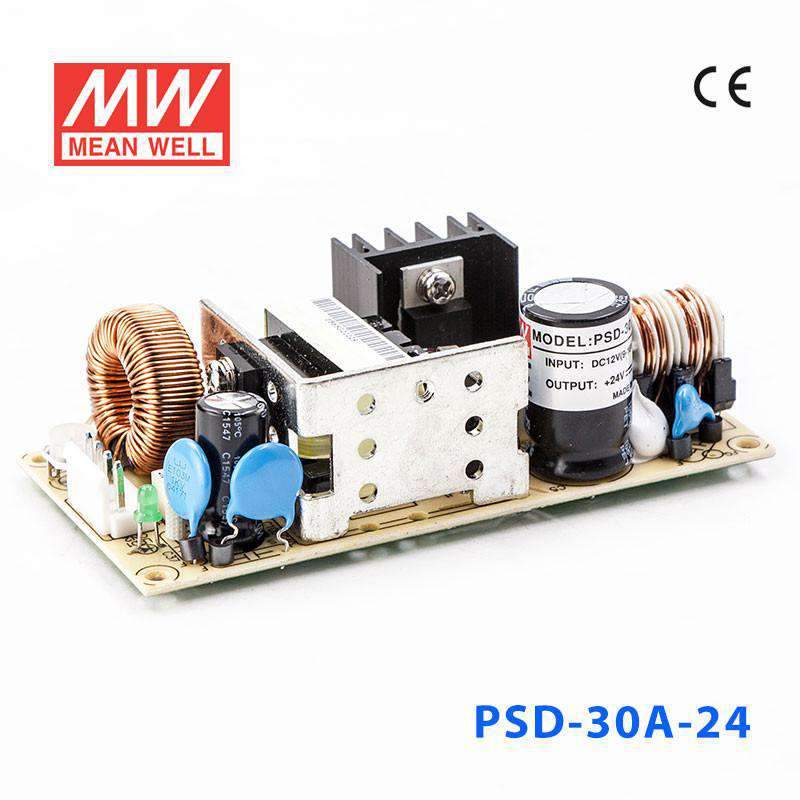

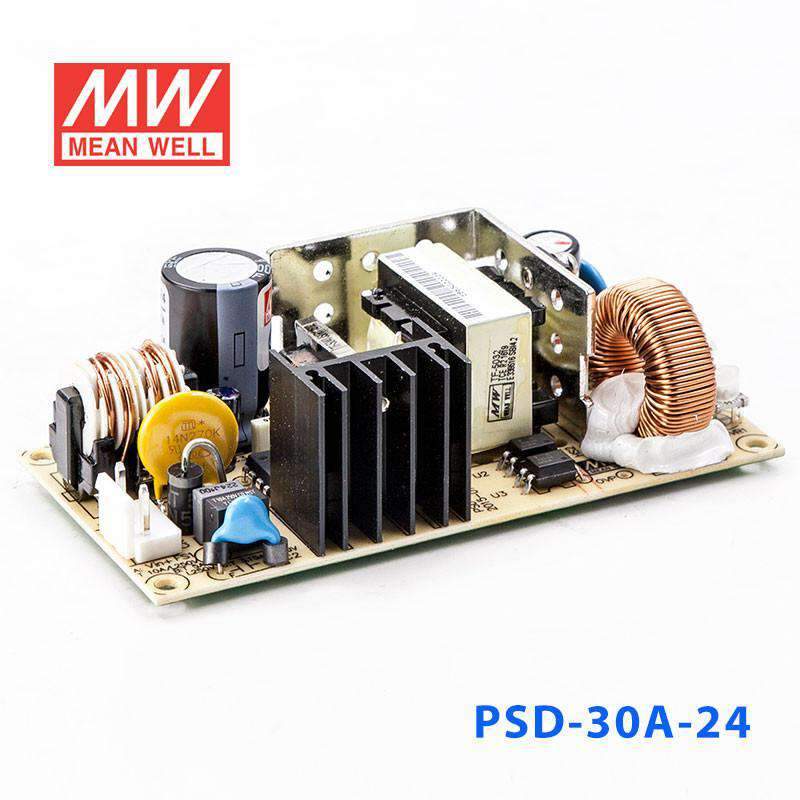

Mean Well PSD-30A-24 DC-DC Converter - 30W - 9~18V in 24V out
The PSD-30A is a 30W Mean Well power converter (input range: 9~18VDC).
Key Features
- ✓ Input voltage range: 9~18VDC
- ✓ DC output voltage adjustable ±10%
- ✓ 1.5KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Reverse polarity
- ✓ Safety approvals: IEC 62368-1 CB
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPSD Series
-
Power Rating30 Watt
-
Output Voltage24 Volt
-
Rated Current1.25 Ampere
-
Input Voltage9V~18V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,EMC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty2 Year
-
Length4 in
-
Width2 in
-
Height1.18 in
-
Weight0.33 lb
::specification::
Frequently Asked Questions
Can I use the PSD-30A-24 for 24V industrial control circuits?
Yes, it is a constant voltage 24V DC-DC converter rated for up to 1.25A and 30W. It fits 24V industrial control or automation circuits when the load stays within the 24V, 1.25A, 30W output rating.
Is the PSD-30A-24 a good fit for 24V sensors, relays, or monitoring devices?
It can be a fit for 24V sensors, relays, or monitoring devices that need constant-voltage 24V power. The key limit is output capacity: 24V at up to 1.25A, with 30W total available.
Can this converter be used in embedded or OEM equipment that runs on 24V?
Yes, for 24V embedded or OEM equipment with moderate power demand, this model provides constant 24V output up to 1.25A. Its input range is 9-18VAC, so the source side needs to stay within that range.
How does the PSD-30A-24 compare with other 24V options in the PSD family?
For 24V siblings listed here, PSD-15A-24, PSD-15B-24, and PSD-15C-24 are 14.4W, 24V, 666A as listed; PSD-30A-24, PSD-30B-24, PSD-30C-24, and PSD-45A-24 are 30W, 24V, 1.25A. PSD-45B-24 and PSD-45C-24 are 45W, 24V, 1.88A.
Can I use the PSD-30A-24 in outdoor equipment?
The product data gives an operating temperature range of -20°C to +60°C, so that is the defined environmental performance in the specs. Because no IP rating is listed, the specs do not establish outdoor or weather-exposed suitability on their own.
