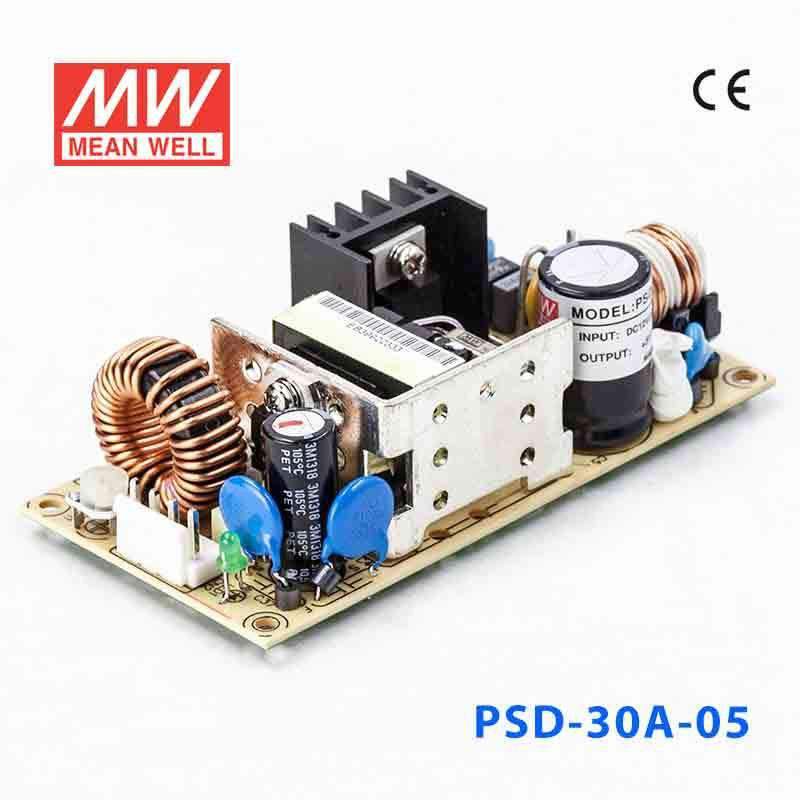

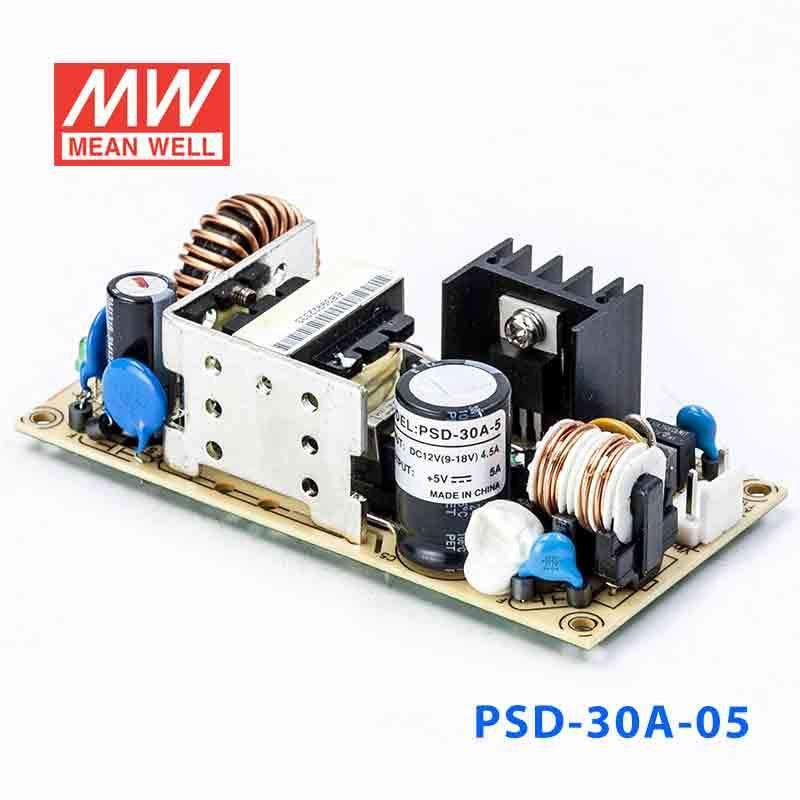

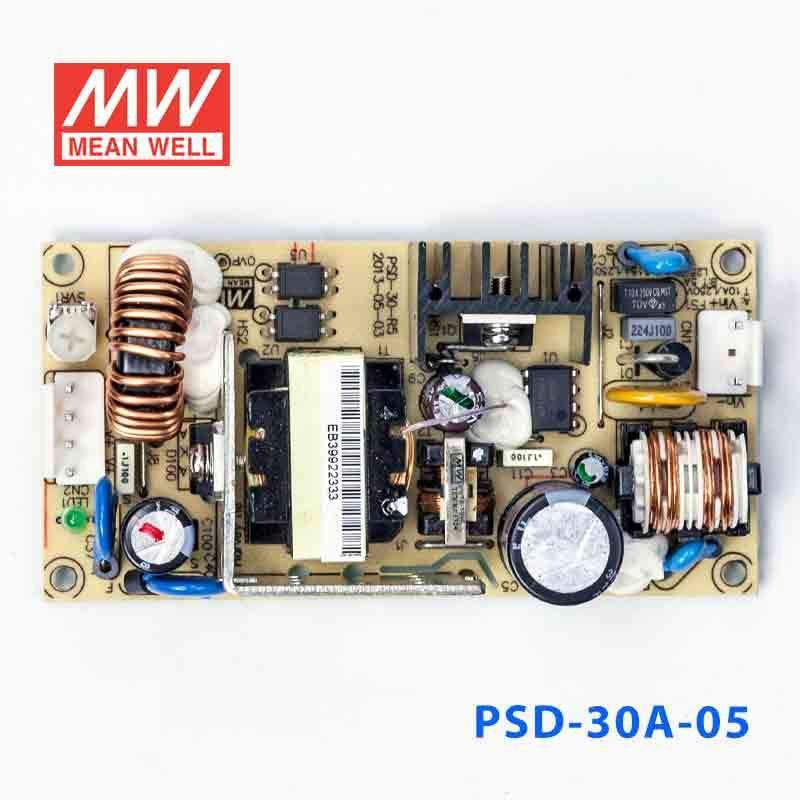

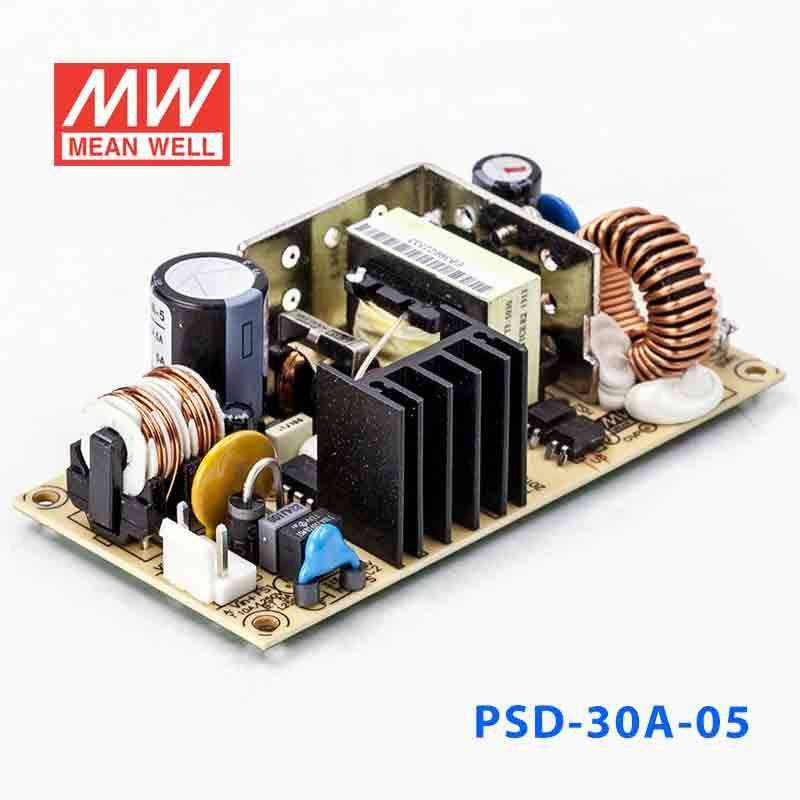

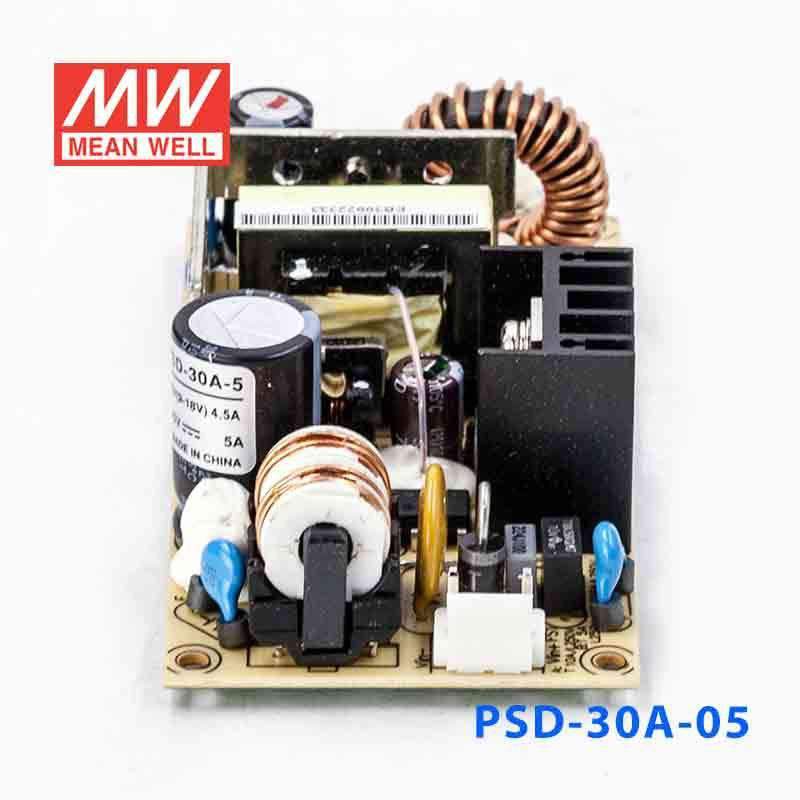

Mean Well PSD-30A-5 DC-DC Converter - 25W - 9~18V in 5V out
The PSD-30A is a 30W Mean Well power converter (input range: 9~18VDC).
Key Features
- ✓ Input voltage range: 9~18VDC
- ✓ DC output voltage adjustable ±10%
- ✓ 1.5KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Reverse polarity
- ✓ Safety approvals: IEC 62368-1 CB
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPSD Series
-
Power Rating25 Watt
-
Output Voltage5 Volt
-
Rated Current5 Ampere
-
Input Voltage9V~18V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,EMC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty2 Year
-
Length4 in
-
Width2 in
-
Height1.18 in
-
Weight0.33 lb
::specification::
Frequently Asked Questions
Can I use the PSD-30A-5 for higher-current 5V embedded systems?
Yes, this model provides constant 5V output with up to 5A available and a 25W power rating. That makes it a better fit for higher-current 5V embedded or controller loads than 5V models limited to 3A or 1A.
Is the PSD-30A-5 suitable for 5V automation controllers and logic assemblies?
It can be suitable when the automation controller or logic assembly requires regulated 5V power and the load stays within 5A and 25W. Its 9-18VAC input range also makes it specific to systems with source power in that range.
Can this converter power multiple 5V devices in one industrial subsystem?
It can, provided the combined demand remains within the unit's 5V, 5A, and 25W output limits. For grouped 5V electronics, that gives more current headroom than the 15W, 3A 5V versions in the same series.
How does the PSD-30A-5 compare with other 5V siblings in the PSD line?
In the listed 5V siblings, PSD-05-05 and PSD-05-5 are 5W, 5V, 1A; PSD-15A-05, PSD-15A-5, PSD-15B-05, PSD-15B-5, PSD-15C-05, and PSD-15C-5 are 15W, 5V, 3A. PSD-30A-5, PSD-30B-5, and PSD-30C-5 are 25W, 5V, 5A; PSD-45A-5 is 30W, 5V, 6A; PSD-45B-5 and PSD-45C-5 are 45W, 5V, 9A.
Is the PSD-30A-5 meant for protected indoor environments only?
The operating temperature range is -20°C to +60°C, which defines the temperature envelope in the published specs. No IP rating is shown, so the product data supports temperature suitability but does not by itself indicate outdoor or exposed-environment use.
