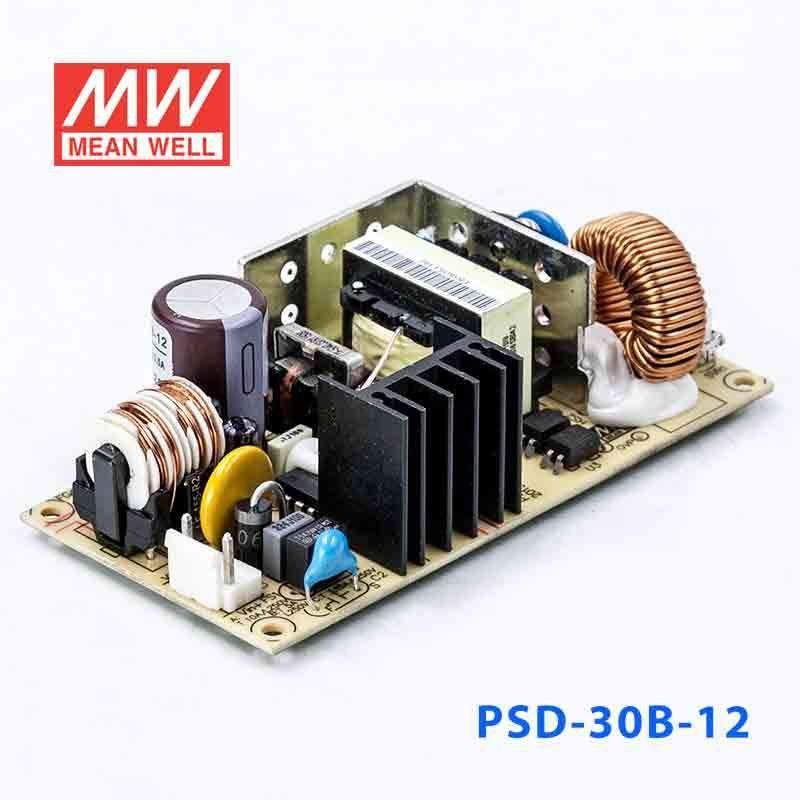

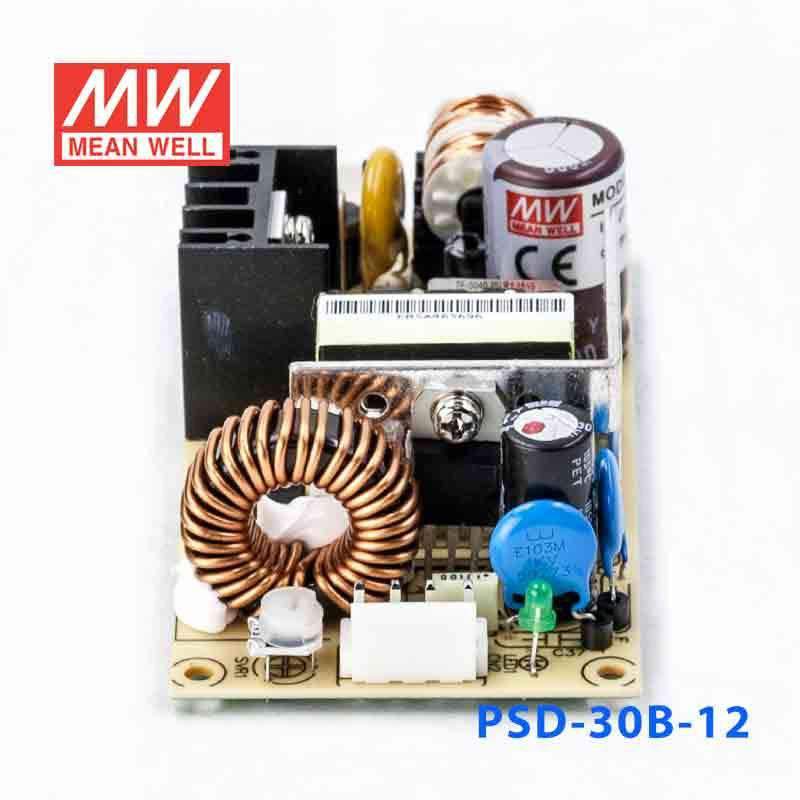

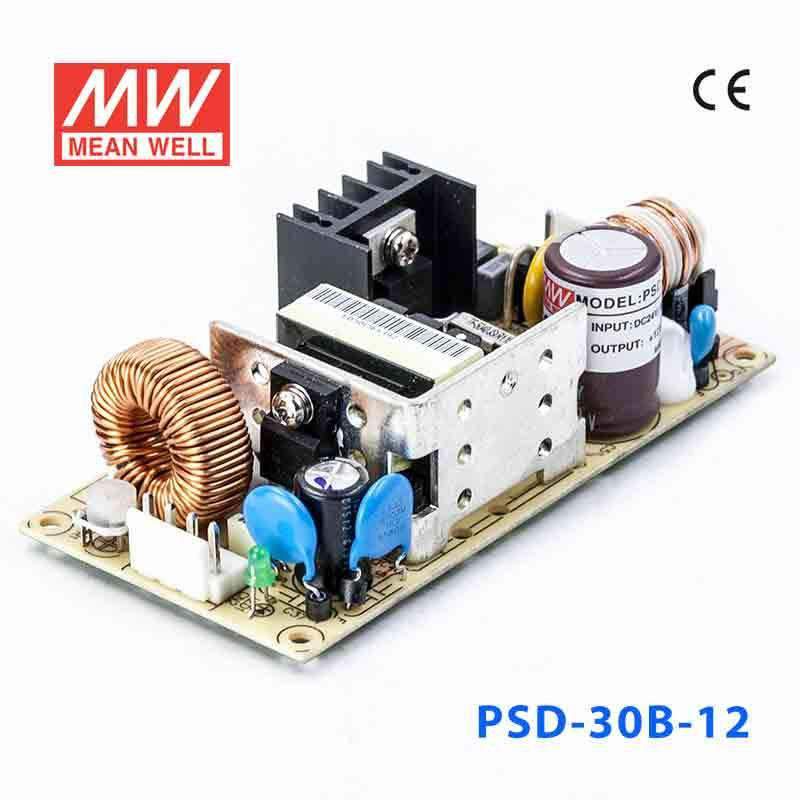

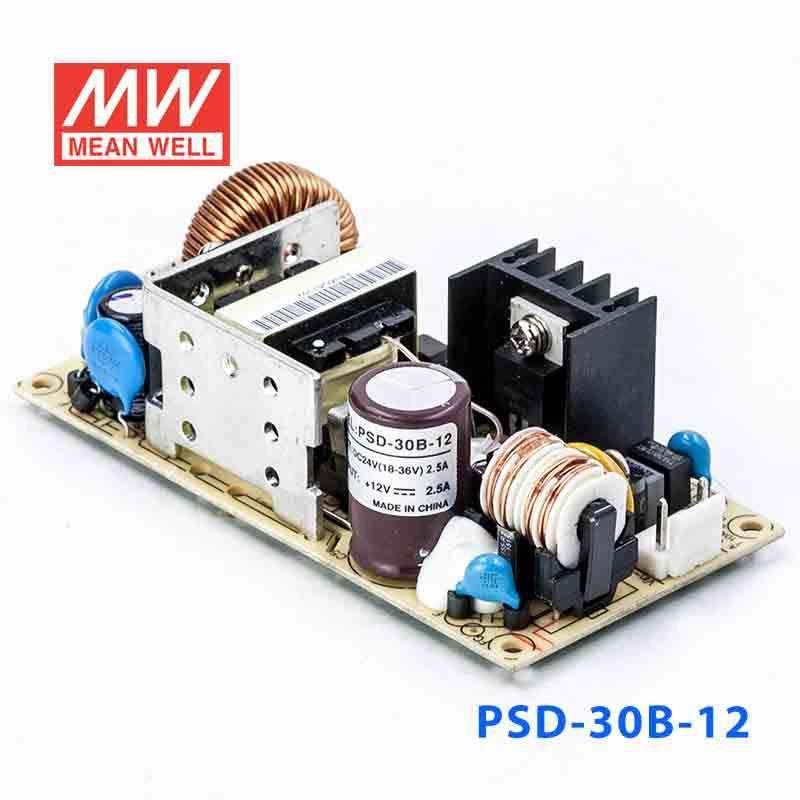

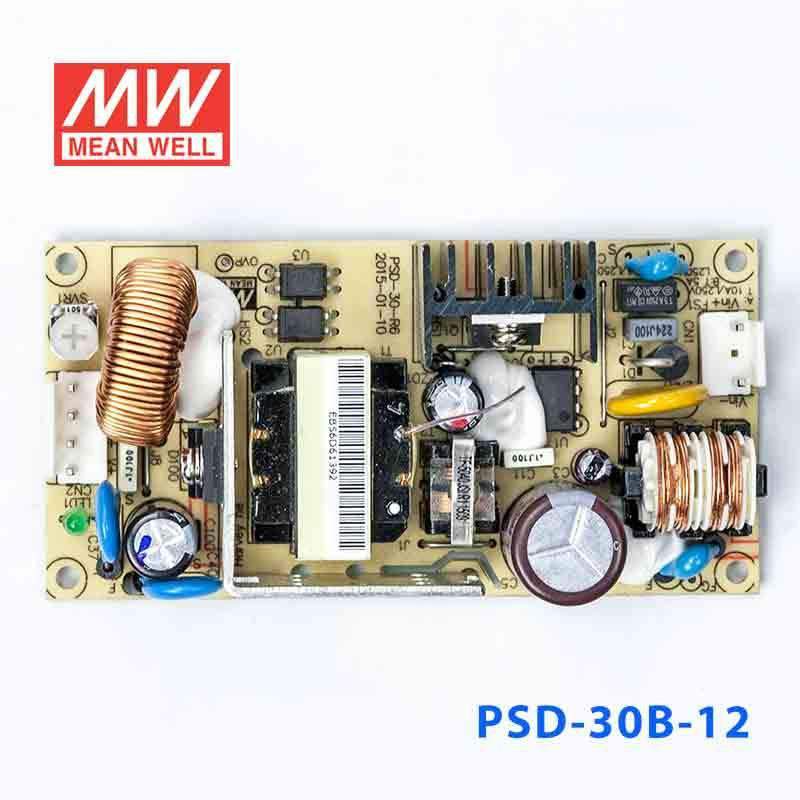

Mean Well PSD-30B-12 DC-DC Converter - 30W - 18~36V in 12V out
The PSD-30B is a 30W Mean Well power converter (input range: 9~18VDC).
Key Features
- ✓ Input voltage range: 9~18VDC
- ✓ DC output voltage adjustable ±10%
- ✓ 1.5KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Reverse polarity
- ✓ Safety approvals: IEC 62368-1 CB
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPSD Series
-
Power Rating30 Watt
-
Output Voltage12 Volt
-
Rated Current2.5 Ampere
-
Input Voltage18V~36V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,EMC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty2 Year
-
Length4 in
-
Width2 in
-
Height1.18 in
-
Weight0.33 lb
::specification::
Frequently Asked Questions
Can I use the PSD-30B-12 in a 24V-class industrial system that needs 12V output?
Yes, this model has an 18-36VAC input range and provides constant 12V output at up to 2.5A and 30W. That makes it suitable for applications where the source falls within 18-36VAC and the load needs regulated 12V power.
Is the PSD-30B-12 a fit for 12V automation, relay, or control electronics?
It can be a fit for 12V automation, relay, or control electronics because it supplies constant 12V output with 2.5A available. The load must remain within the 30W maximum output rating.
Can this converter power 12V embedded or OEM equipment from an 18-36VAC source?
Yes, that is the type of source range this version is designed around, with 18-36VAC input and 12V constant-voltage output. It is appropriate for 12V embedded or OEM assemblies that do not exceed 2.5A or 30W.
How does the PSD-30B-12 differ from the other 12V versions in this sibling list?
For 12V siblings shown here, PSD-15A-12, PSD-15B-12, and PSD-15C-12 are 15W, 12V, 1.25A. PSD-30A-12, PSD-30B-12, PSD-30C-12, and PSD-45A-12 are 30W, 12V, 2.5A, while PSD-45B-12 and PSD-45C-12 are 45W, 12V, 3.75A.
Is the PSD-30B-12 suitable for wide-temperature industrial enclosures?
The specified operating temperature is -20°C to +60°C, so it is rated for that temperature span. No IP rating is listed in the provided specs, so the data supports temperature performance but does not establish outdoor or washdown suitability.
