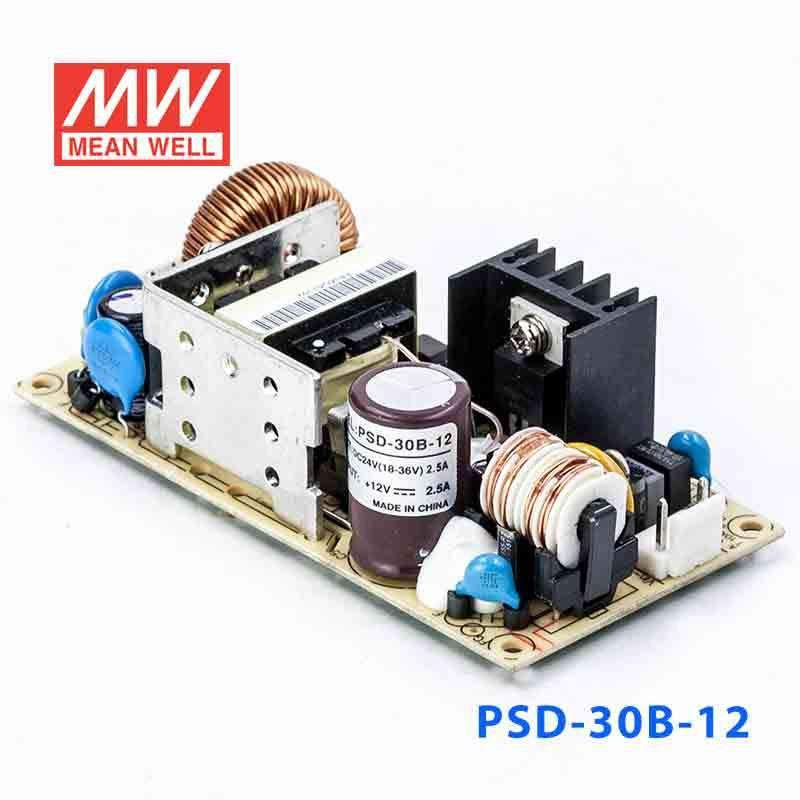

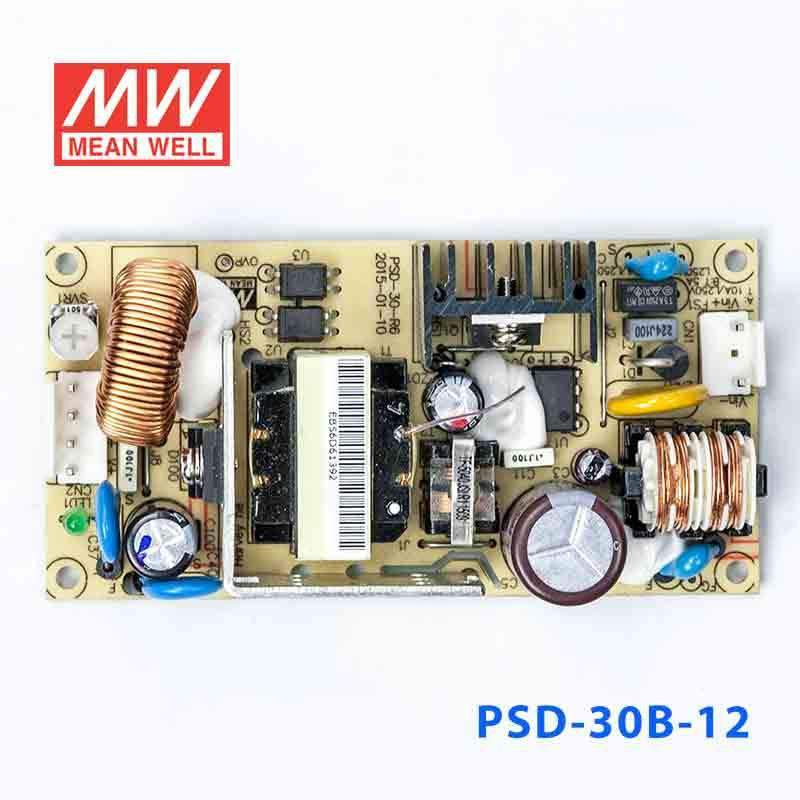

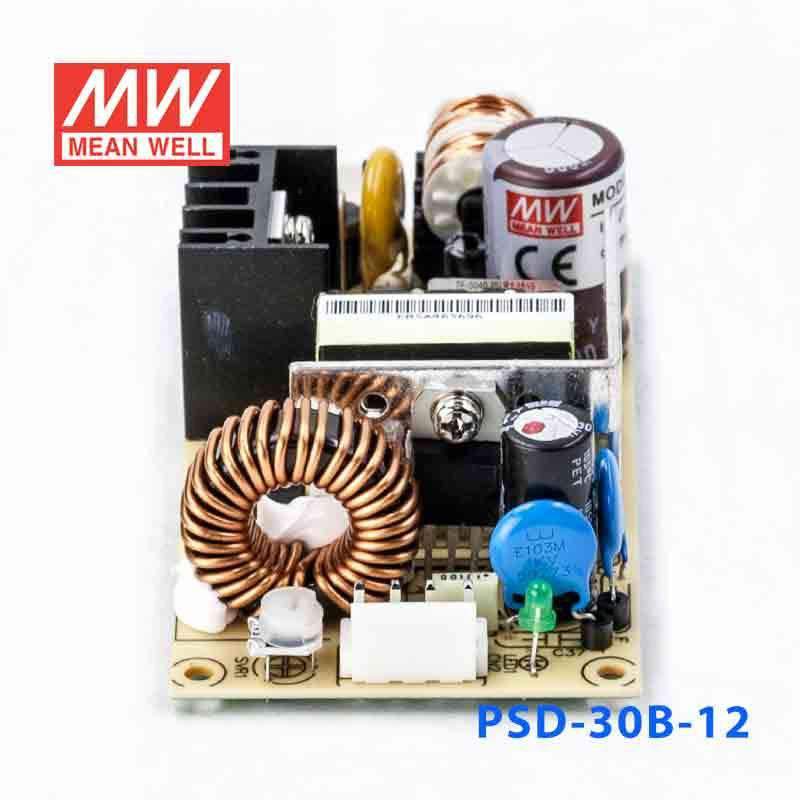

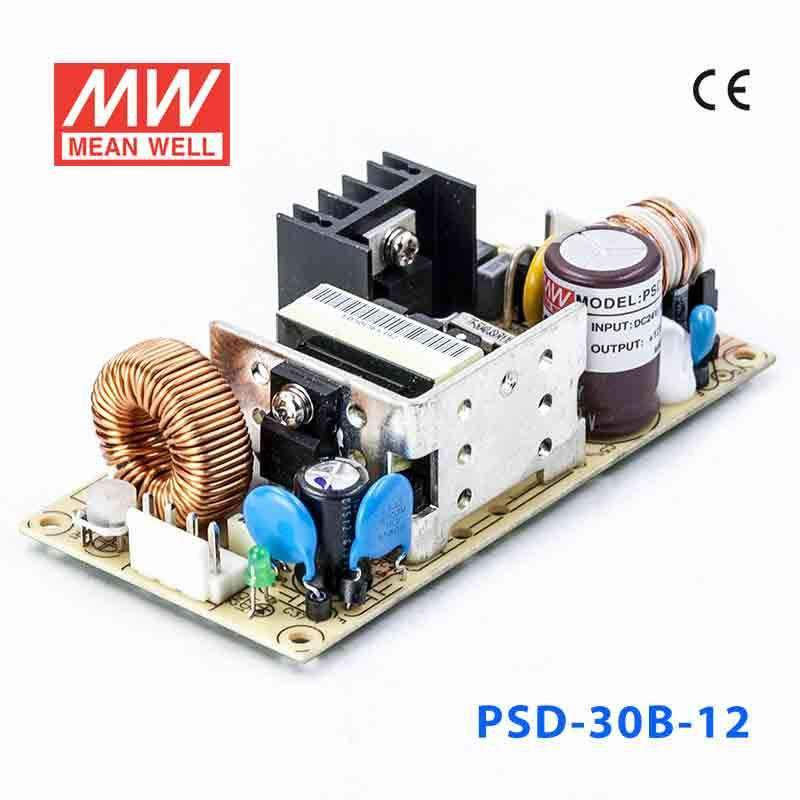

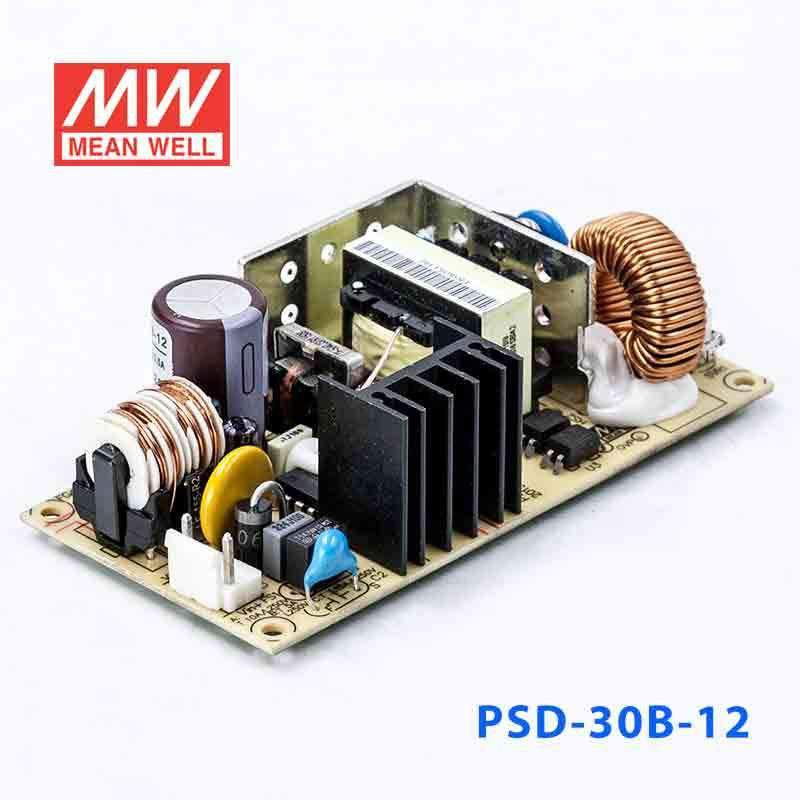

Mean Well PSD-30B-12 DC-DC Converter - 30W - 18~36V in 12V out

2:1 wide input range, 1.5~2KVAC isolation by models
$15.50 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

2: 1 wide input range
1500VAC I / O isolation
Built-in EMI filter, low ripple noise
Protections: Short circuit / Overload / Over voltage / Reverse polarity
100% full load burn-in test
Low cost, high reliability
Cooling by free air convection
2 years warranty

General Specification

DC adjustment range 5V: 4.5 to 5.5 V, 12 V: 11 to 13.5 V, 24 V 22 to 26 V
Overload protection 105% ~ 150% hiccup mode, auto-recovery
Over voltage protection 115% ~ 150% rated output voltage
Withstand voltage I / PO / P: 1.5 k VAC, I / P-FG: 1.5 k VAC, 1 minute
Line and load regulation ± 1% (max.)
Working temperature -20 ~ + 60 ° C (refer to output derating curve)
Connection 3P, 4P / 3.96mm pitch, JST B3P / B4P-VH-B
EMC standards EN55022 class B, EN61000-4-2,3,4,6,8, EN55024
Dimension (LxWxH) (mm) 101.6x 50.8x 30 mm

Specifications

  • Brand
    Mean Well
  • Series
    PSD Series
  • Power Rating
    30 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    2.5 Ampere
  • Input Voltage
    18V~36V
  • No of Output
    1
  • Dimming Control
    None
  • Standards Met
    CB,CE,EAC,EMC,RCM
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~60°C
  • Warranty
    2 Year
  • Length
    4 in
  • Width
    2 in
  • Height
    1.18 in
  • Weight
    0.33 lb
