Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

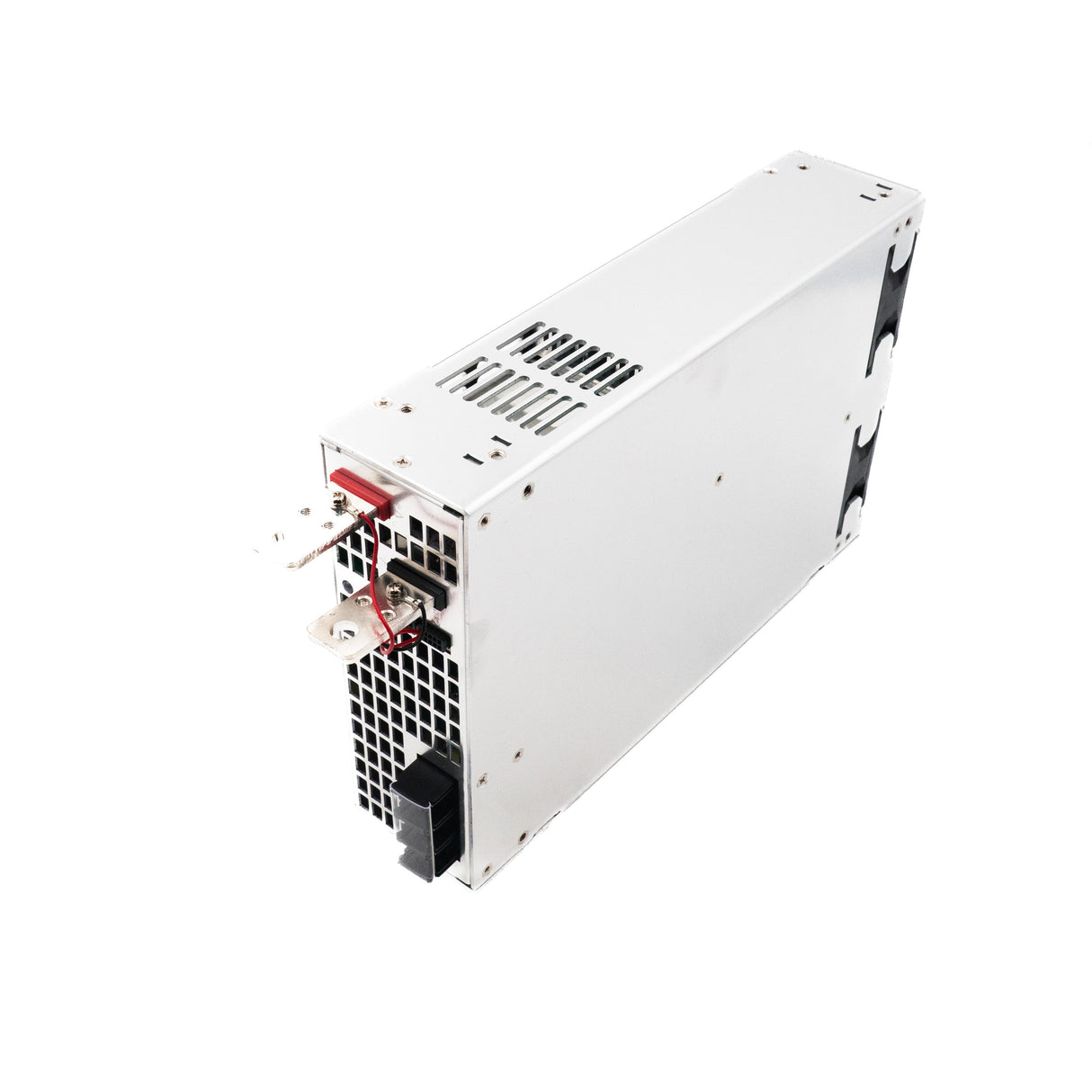

Mean Well RSP-2400-24 Power Supply 2400W 24V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RSP-2400-24 Power Supply 2400W 24V
The RSP-2400 is a 2400W Mean Well power converter (input range: 180~264VAC).
Key Features
- ✓ Input voltage range: 180~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL62368-1, TUV EN62368-1, EAC TP TC 004, BSMI CNS14336-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating2400 Watt
-
Output Voltage24 Volt
-
Rated Current100 Ampere
-
Input Voltage180V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty5 Year
-
Length10.94 in
-
Width7 in
-
Height2.5 in
-
Weight7.28 lb
::specification::
Frequently Asked Questions
What is the RSP-2400-24 suited for in industrial automation?
The RSP-2400-24 supplies 24V at 100A (2400W), which matches the bus voltage used in many PLC systems, servo amplifiers, and industrial robot controllers. Its 5-year warranty and UL/CE/TÜV certifications support deployment in regulated industrial environments.
Can the RSP-2400-24 operate in a wide range of ambient temperatures?
The RSP-2400-24 is rated for -20°C to +70°C ambient operation. It is designed for indoor use and does not carry an IP rating for outdoor or wash-down environments.
How does the RSP-2400-24 differ from the RSP-3000-24?
The RSP-2400-24 and RSP-3000-24 share the same 278.0 × 177.8 × 63.5 mm enclosure and both require 180-264VAC input. The RSP-2400-24 delivers 2400W at 100A, while the RSP-3000-24 increases output to 3000W at 125A. Both feature 2+1 active current sharing.
What input voltage does the RSP-2400-24 require?
The RSP-2400-24 accepts 180-264VAC input only, which means it is not suitable for standard 100-120V North American wall outlets. It is intended for 200V-class industrial AC power systems.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other RSP-2400 Models
1 other model| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well RSP-2400-48 Power Supply 2400W 48V | 2400W | 48V | 50A | Indoor | $474.31 | View |
