Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

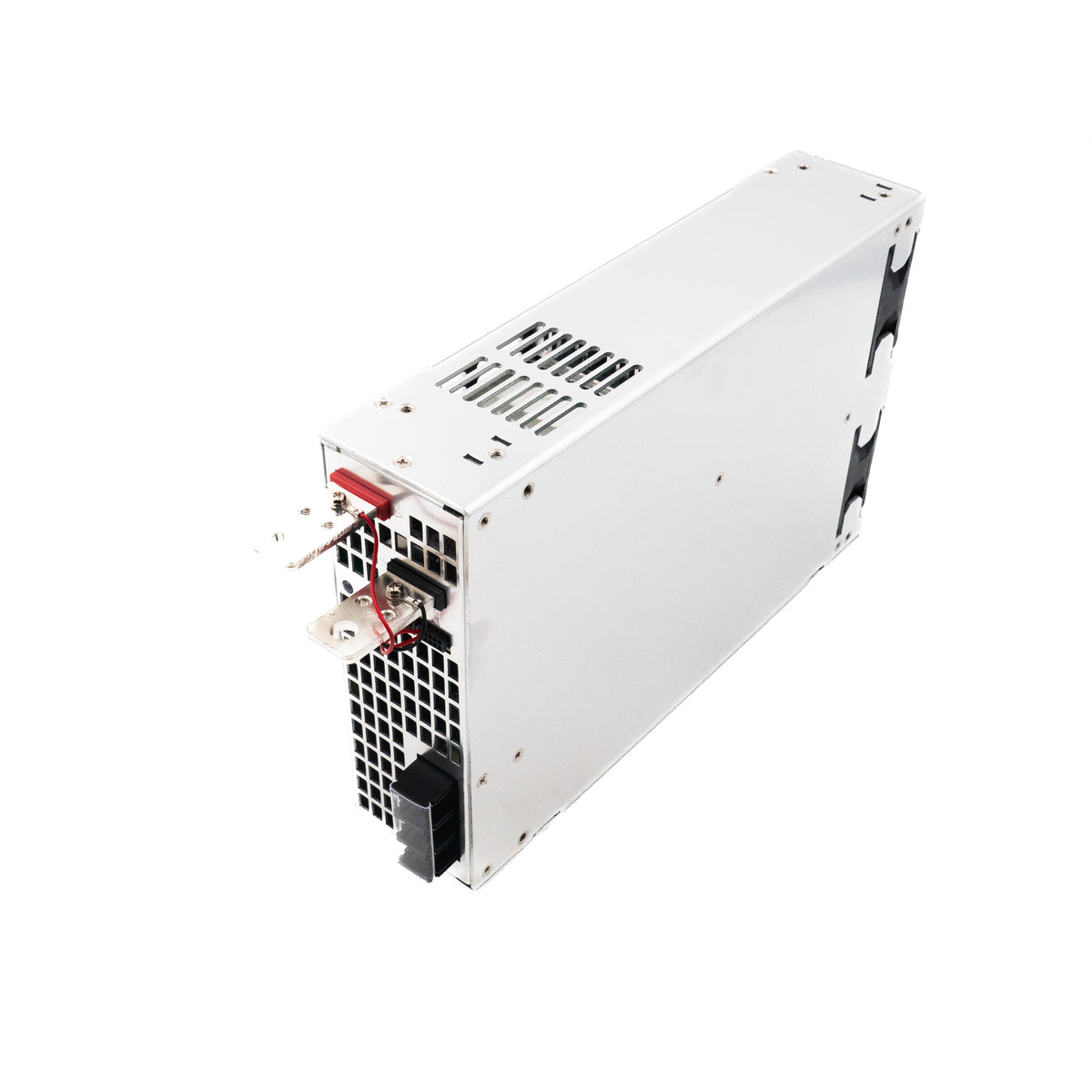

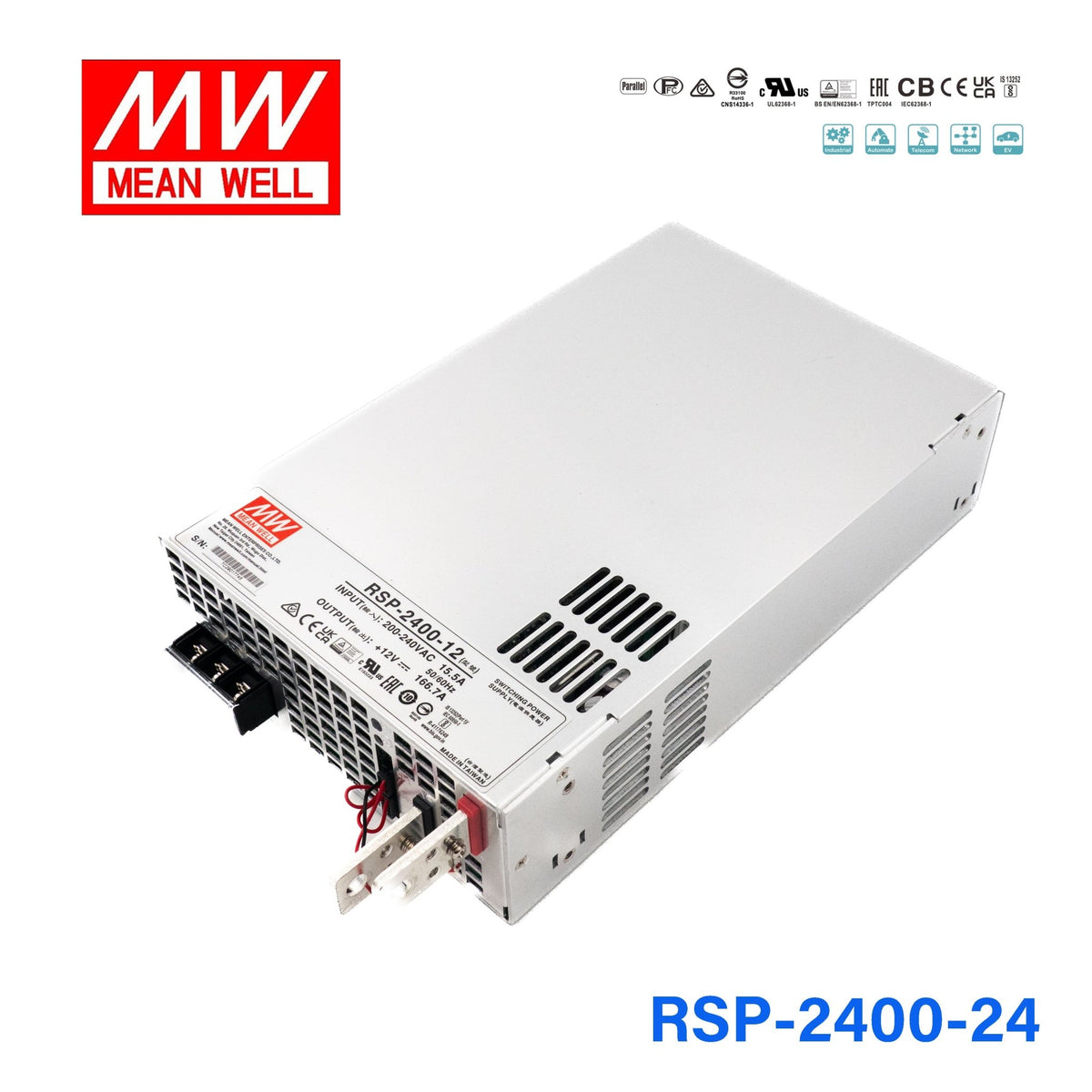

Mean Well RSP-2400-24 Power Supply 2400W 24V

Name: Mean Well RSP-2400-24 Power Supply 2400W 24V
Brand: Mean Well
SKU: RSP-2400-24
Price: 499.27 USD
Availability: InStock

9 units in stock

$499.27 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

AC input voltage range	180~264VAC; 254~370VDC
AC inrush current (max.)	Cold start, 60A at 230VAC
DC adjustment range	±10% rated output voltage
Overload protection Range	100%~112%
Overload protection Type	Constant current limiting, shut off after 5 sec., re-power on to recover (can adjust to continuous constant current limiting)
Over voltage protection Range	115%~140%
Over voltage protection Type	Shut down O/P voltage, re-power on to recover
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-20~+70°C
Safety standards	UL60950-1, TUV EN60950-1 approved
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection Input	3P/13mm pitch terminal block with cover
Connection Output	Copper pillars
Dimension (LxWxH)	278x177.8x63.5
Case No.	982B
Packing	3.3kg; 4pcs / 14.2kg / 1.89CUFT
