Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

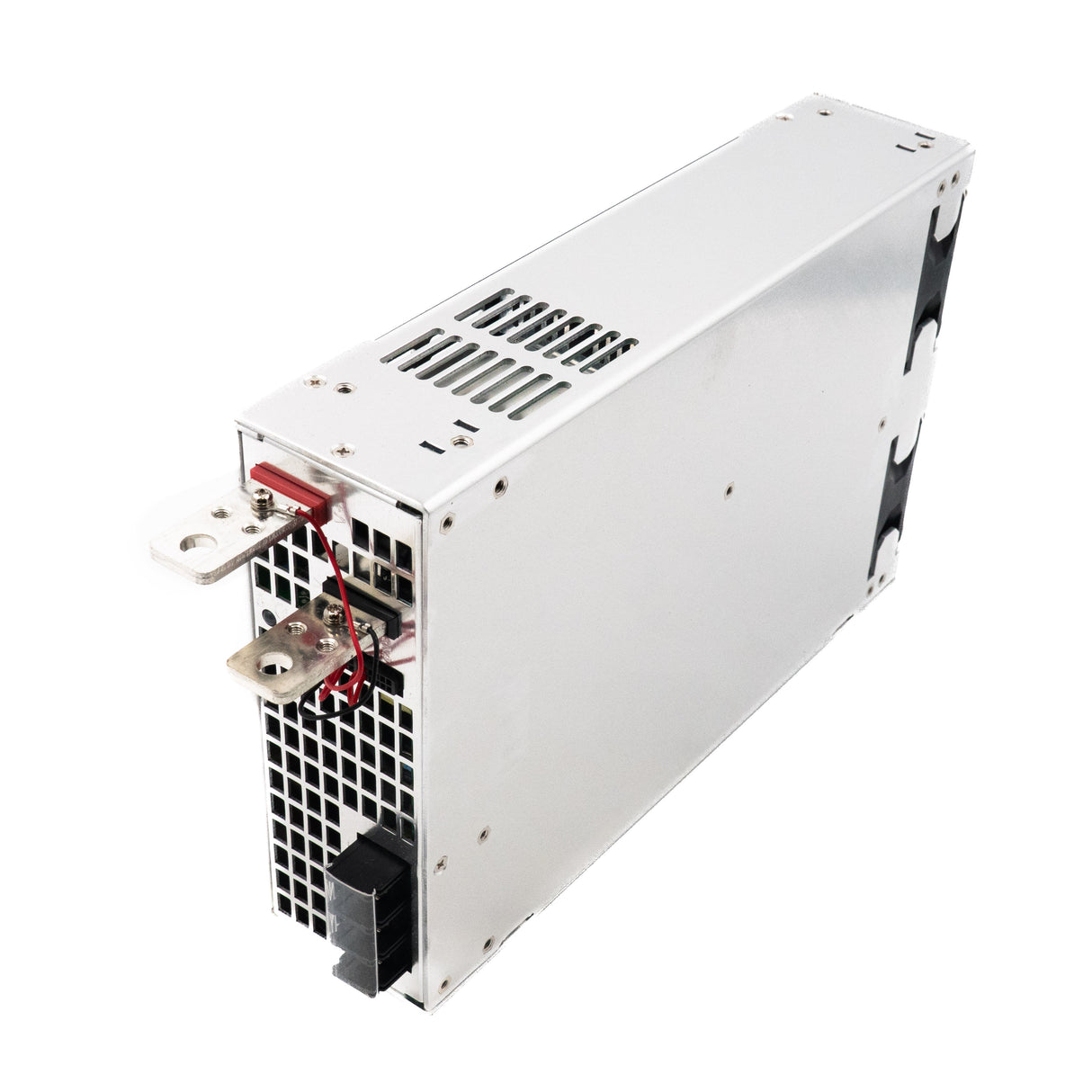

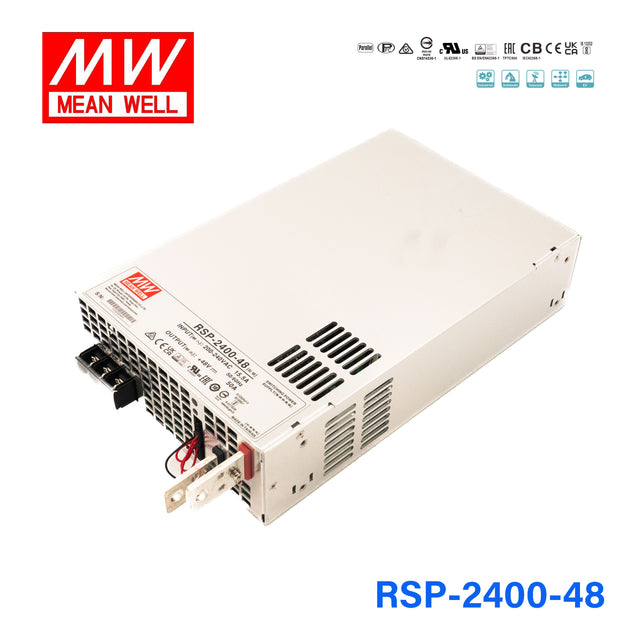

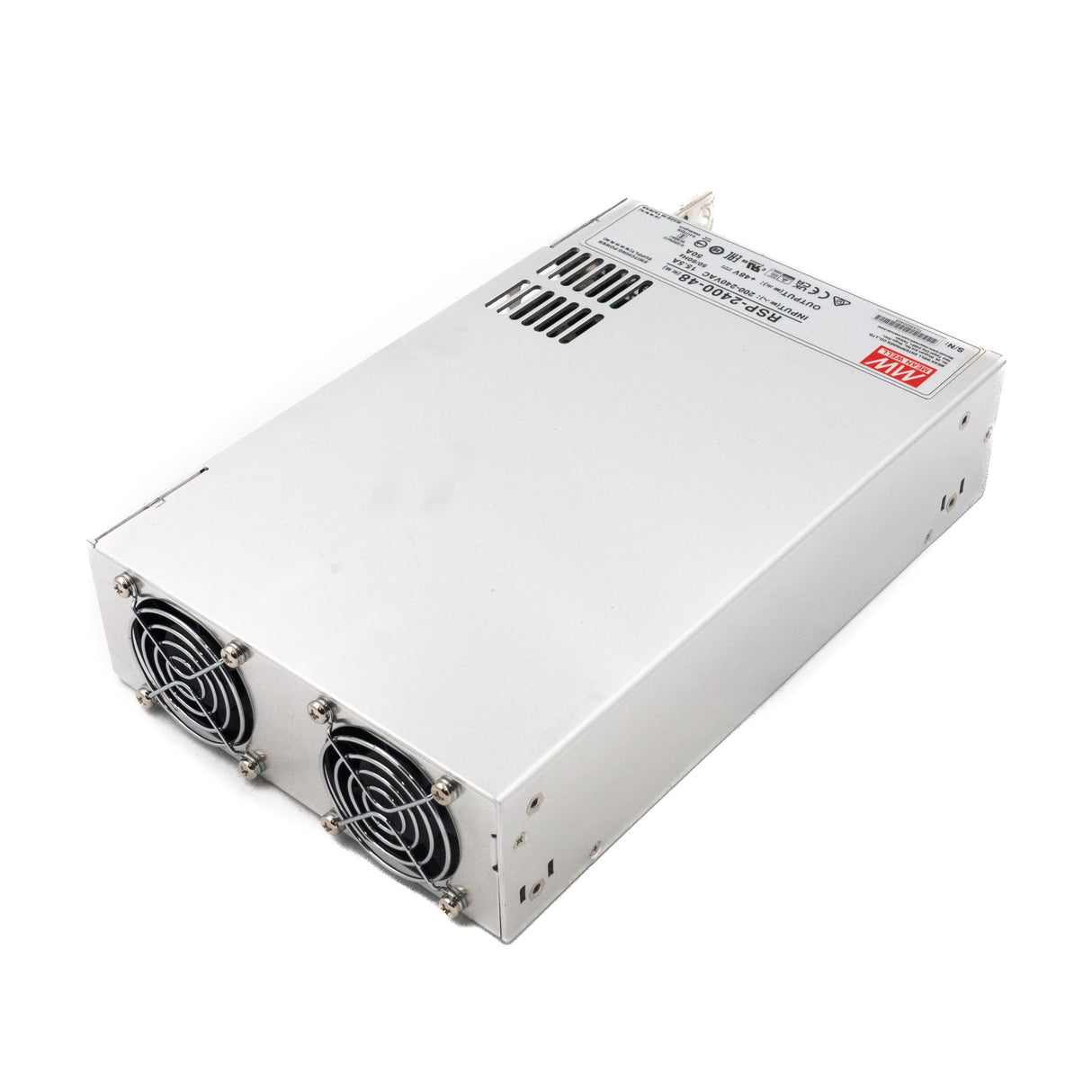

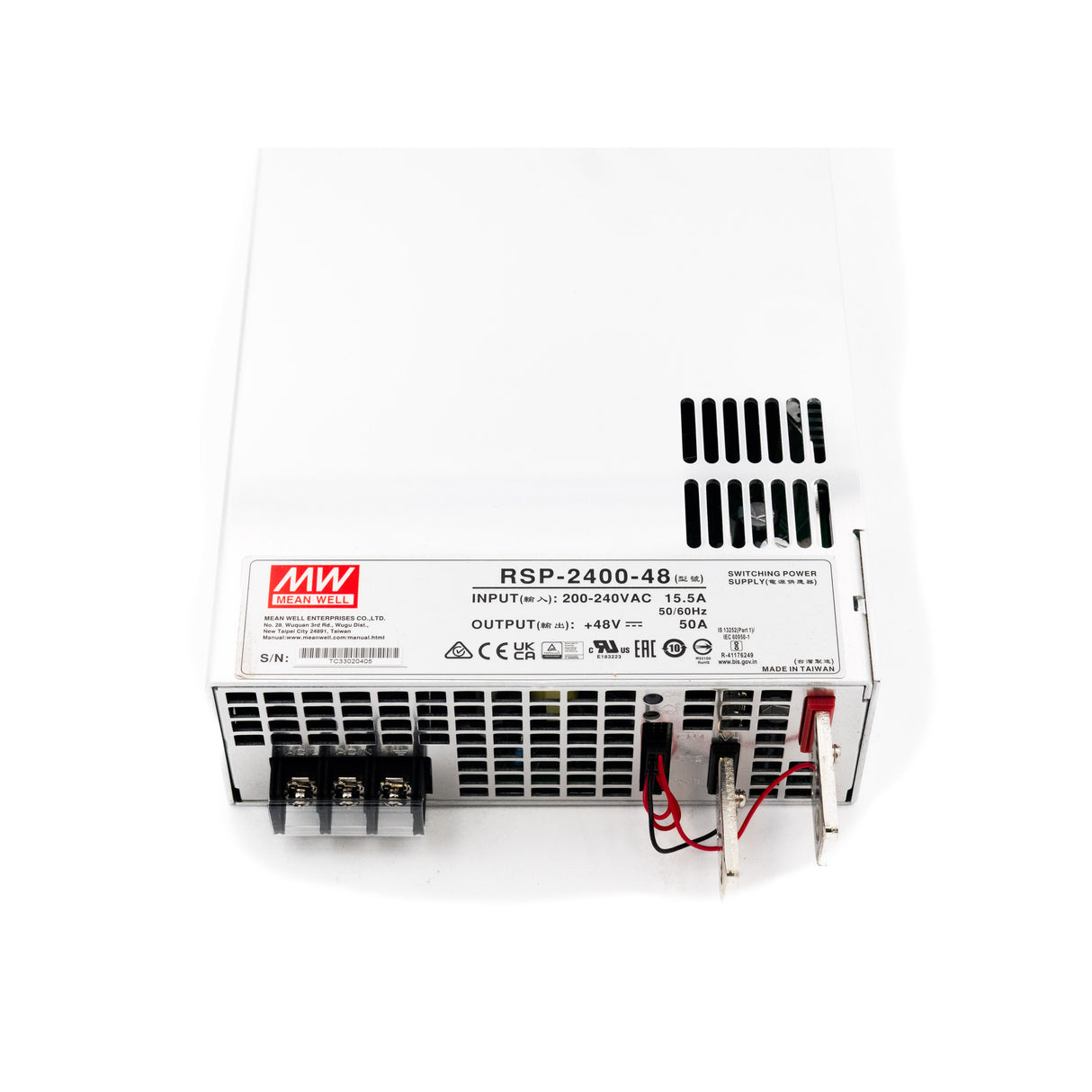

Mean Well RSP-2400-48 Power Supply 2400W 48V
The RSP-2400 is a 2400W Mean Well power converter (input range: 180~264VAC).
Key Features
- ✓ Input voltage range: 180~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL62368-1, TUV EN62368-1, EAC TP TC 004, BSMI CNS14336-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating2400 Watt
-
Output Voltage48 Volt
-
Rated Current50 Ampere
-
Input Voltage180V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty5 Year
-
Length10.94 in
-
Width7 in
-
Height2.5 in
-
Weight7.28 lb
::specification::
Frequently Asked Questions
What systems benefit from the RSP-2400-48's 48V, 50A output?
The RSP-2400-48 provides 2400W at 48V with 50A output, suitable for powering telecom DC power systems, PoE aggregation equipment, and high-capacity battery charging applications. The 48V bus is a common standard in telecommunications and data center power distribution.
Is the RSP-2400-48 suitable for low-temperature environments?
The RSP-2400-48 operates down to -20°C, making it appropriate for heated indoor enclosures in cold climates but not for unheated outdoor installations. Its upper limit is +70°C, matching the range of other RSP-2400 series units.
How does the RSP-2400-48 compare to the RSP-2000-48 and RSP-3000-48?
The RSP-2000-48 provides 2016W and 42A on a wide 90-264VAC input. The RSP-2400-48 steps up to 2400W and 50A, and the RSP-3000-48 reaches 3000W and 62.5A — both requiring a narrower 180-264VAC input. All three share 48V output; the RSP-2000-48 alone supports low-line AC.
What efficiency and paralleling capability does the RSP-2400-48 offer?
The RSP-2400-48 achieves up to 91.5% efficiency and supports 2+1 active current sharing for N+1 redundancy. It weighs 3.3 kg and measures 278.0 × 177.8 × 63.5 mm.
