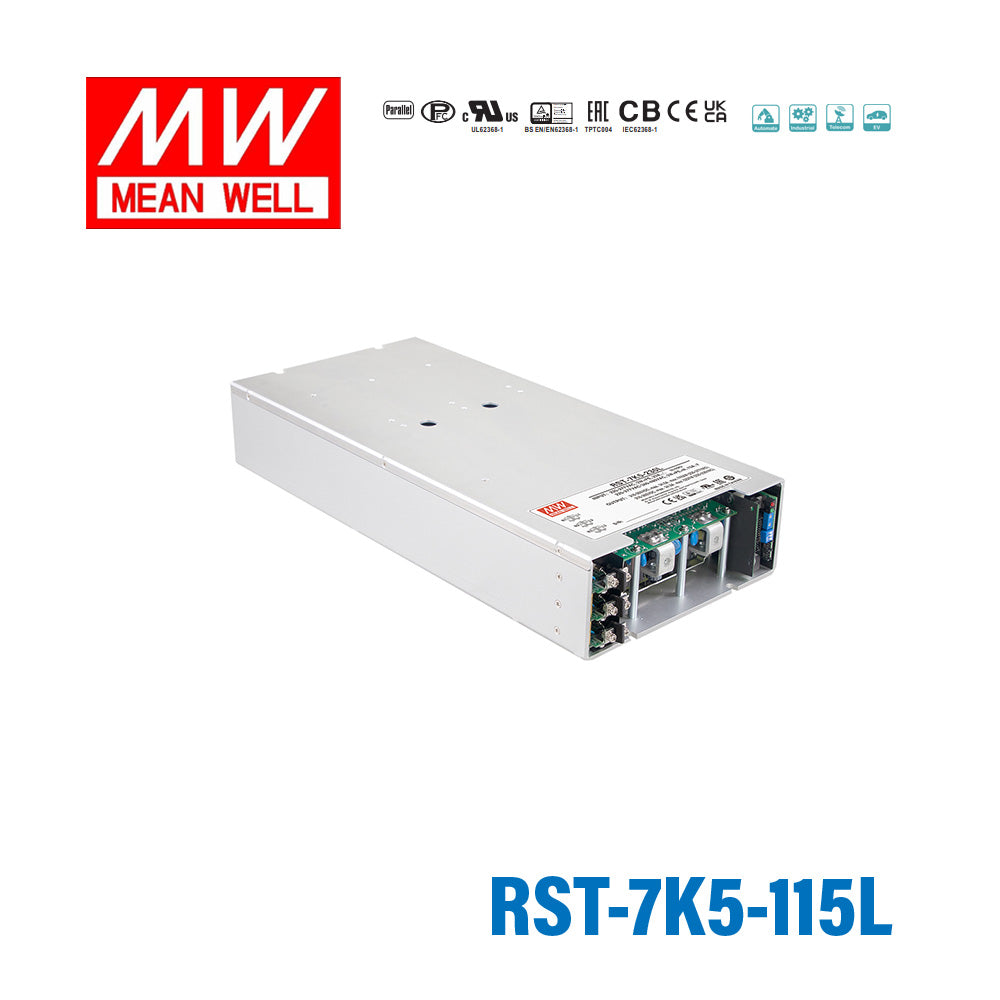

Mean Well RST-7K5-115L High Power AC/DC Power Supply 7475W, 3 Phase Input, 115V Output, Water Cooling
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RST-7K5-115L High Power AC/DC Power Supply 7475W, 3 Phase...
Key Features
- ✓3ψ 3-wire / △196305VAC or 3ψ 4-wire / Y 340530VAC
- ✓High efficiency up to 95%
- ✓Water / forced air cooling selectable
- ✓Output voltage and constant current level programmable
- ✓Wide voltage adjustment range 1~120%
- ✓Active current sharing up to 4 units(28.5KW)
- ✓Built-in remote ON-OFF control / Alarm signal
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature / Fan fail
- ✓5 years warranty
-
BrandMean Well
-
SeriesRST Series
-
Power Rating7475 Watt
-
Output Voltage115 Volt
-
Rated Current65 Ampere
-
Input Voltage196V~305V
-
No of Output1
-
Standards MetCB,CE,EAC,EN
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length18.11 in
-
Width8.5 in
-
Height3.29 in
-
Weight26.46 lb
::specification::
Frequently Asked Questions
What are the core electrical ratings of the Mean Well RST-7K5-115L?
The RST-7K5-115L is a high power AC/DC supply rated for 7475W output. It provides 115V DC nominal output with 65A rated current. This model is designed for 3-phase AC input systems and is built for applications that need substantial regulated DC power from a single enclosure.
What types of applications is the RST-7K5-115L typically suited for?
This model fits industrial and OEM systems that need a high power 115V DC source, especially where centralized DC power is preferred over multiple smaller supplies. Its 7475W capacity, programmable output behavior, and support for parallel current sharing make it relevant for demanding equipment, test systems, and large control platforms. Buyers evaluating high-load B2B projects will usually consider it where both power density and output control matter.
Can the RST-7K5-115L be used in higher-capacity parallel power systems?
Yes. Mean Well specifies active current sharing for up to 4 units, allowing total capacity up to 28.5KW in multi-unit systems. That makes this model a practical option for larger installations that may need scalable DC power without changing to a different platform.
How does the RST-7K5-115L differ from a standard lower-power enclosed power supply?
The main difference is scale and control. This model delivers 7475W at 115V with 3-phase input support, programmable output voltage and constant current level, and selectable water or forced-air cooling. It is intended for substantially heavier-duty use than conventional single-phase or lower-wattage enclosed supplies.
What operating environment is this power supply designed for?
The RST-7K5-115L is specified for operation from -30°C to 70°C, which supports demanding industrial environments when the system is designed around the unit's cooling method. Mean Well also lists selectable water cooling or forced-air cooling, giving more flexibility for high thermal load installations. For buyers comparing platforms, that combination is a key differentiator in continuous-duty applications.
Does the RST-7K5-115L offer output adjustment and remote control features?
Yes. This model includes programmable output voltage and programmable constant current level, with a wide voltage adjustment range of 1 to 120%. It also has built-in remote ON-OFF control and an alarm signal, which is useful for monitored industrial power systems.
What protection and reliability features are included on the RST-7K5-115L?
Mean Well lists short circuit, overload, over voltage, over temperature, and fan fail protection for this model. The unit also carries a 5-year warranty, which is notable for a power supply in this output class. These features make it better aligned with long-service B2B equipment requirements than bare-bones high-power supplies.
