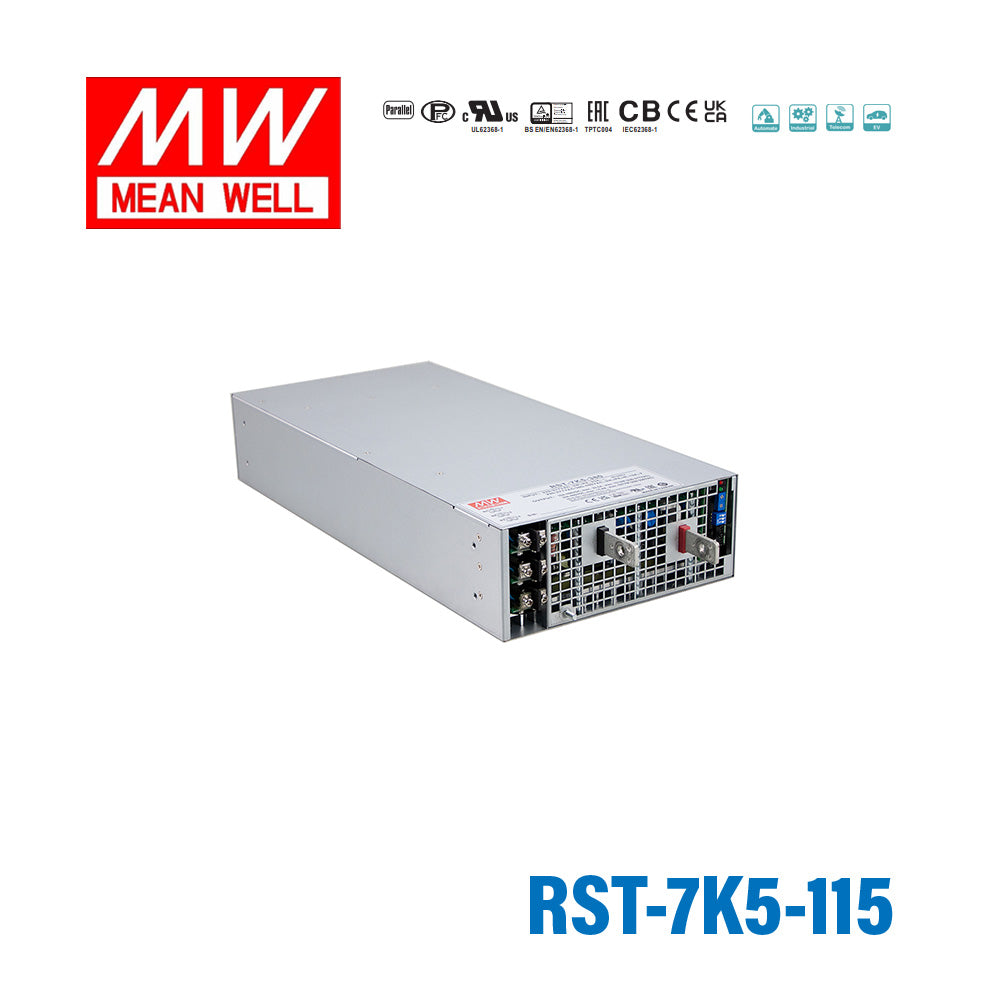

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well RST-7K5-115 High Power AC/DC Power Supply 7475W, 3 Phase Input, 115V Output
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RST-7K5-115 High Power AC/DC Power Supply 7475W, 3 Phase ...
Key Features
- ✓3ψ 3-wire / △196305VAC or 3ψ 4-wire / Y 340530VAC
- ✓High efficiency up to 95%
- ✓Water / forced air cooling selectable
- ✓Output voltage and constant current level programmable
- ✓Wide voltage adjustment range 1~120%
- ✓Active current sharing up to 4 units(28.5KW)
- ✓Built-in remote ON-OFF control / Alarm signal
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature / Fan fail
- ✓5 years warranty
-
BrandMean Well
-
SeriesRST Series
-
Power Rating7475 Watt
-
Output Voltage115 Volt
-
Rated Current65 Ampere
-
Input Voltage196V~305V
-
No of Output1
-
Standards MetCB,CE,EAC,EN
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length18.11 in
-
Width8.31 in
-
Height3.29 in
-
Weight26.46 lb
::specification::
Frequently Asked Questions
What type of applications is the Mean Well RST-7K5-115 designed for?
The RST-7K5-115 is a high power enclosed AC/DC power supply intended for demanding industrial and commercial systems that need substantial 115V DC output. With a 7475W power rating and 65A rated current, it is suited to applications where high continuous output and 3-phase input support are important purchasing factors.
What are the key output specifications of the RST-7K5-115?
This model provides a nominal 115V output and is rated for 65A, for a total power rating of 7475W. It also features a wide voltage adjustment range of 1 to 120% and programmable output voltage and constant current level.
Does the RST-7K5-115 support high efficiency operation?
Yes. Mean Well specifies efficiency up to 95% for the RST-7K5-115, which is a strong performance level for a power supply in this class. High efficiency can help reduce wasted energy and support lower thermal burden in high power systems.
What input power configuration does the RST-7K5-115 require?
The RST-7K5-115 is designed for 3-phase AC input. The listed input range is 3-phase 3-wire / delta 196 to 305VAC or 3-phase 4-wire / Y 340 to 530VAC, making it a fit for facilities using industrial-grade 3-phase power.
Can the RST-7K5-115 be used in higher power parallel systems?
Yes. This model supports active current sharing for up to 4 units, allowing system designers to scale output capacity up to 28.5KW. That makes it relevant for higher-demand applications where modular high power expansion is a requirement.
What operating environment and protection features does the RST-7K5-115 offer?
The RST-7K5-115 has an operating temperature range of -30°C to 70°C, supporting use in a wide range of industrial environments. It also includes protection functions for short circuit, overload, over voltage, over temperature, and fan fail, along with selectable water or forced-air cooling.
What warranty comes with the Mean Well RST-7K5-115?
Mean Well lists this model with a 5-year warranty. For B2B buyers evaluating lifecycle cost and long-term support, that warranty period is an important part of the product's value proposition.
