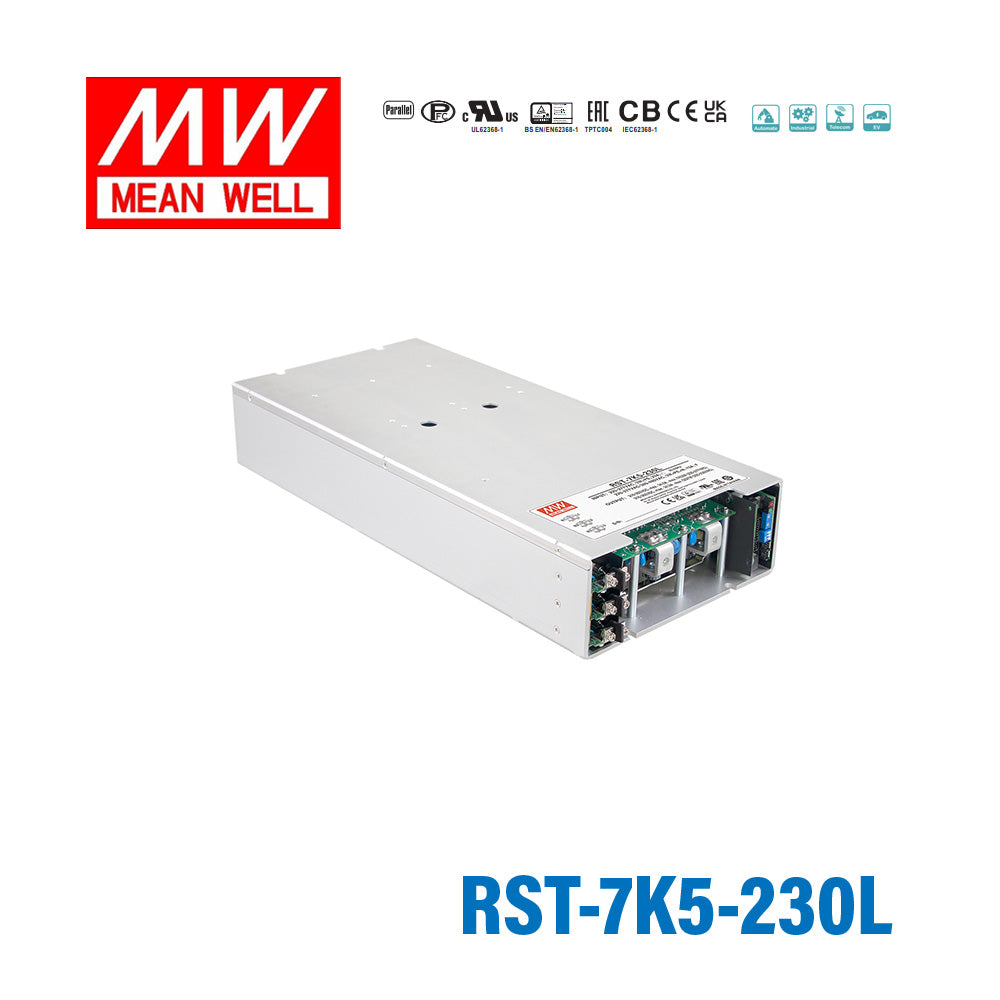

Mean Well RST-7K5-230L High Power AC/DC Power Supply 7452W, 3 Phase Input, 230V Output, Water Cooling
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RST-7K5-230L High Power AC/DC Power Supply 7452W, 3 Phase...
Key Features
- ✓3ψ 3-wire / △196305VAC or 3ψ 4-wire / Y 340530VAC
- ✓High efficiency up to 95%
- ✓Water / forced air cooling selectable
- ✓Output voltage and constant current level programmable
- ✓Wide voltage adjustment range 1~120%
- ✓Active current sharing up to 4 units(28.5KW)
- ✓Built-in remote ON-OFF control / Alarm signal
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature / Fan fail
- ✓5 years warranty
-
BrandMean Well
-
SeriesRST Series
-
Power Rating7452 Watt
-
Output Voltage230 Volt
-
Rated Current32.4 Ampere
-
Input Voltage196V~305V
-
No of Output1
-
Standards MetCB,CE,EAC,EN
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length18.11 in
-
Width8.5 in
-
Height3.29 in
-
Weight26.46 lb
::specification::
Frequently Asked Questions
What is the Mean Well RST-7K5-230L designed for?
The RST-7K5-230L is a high power enclosed AC/DC power supply intended for demanding industrial and commercial equipment that requires a regulated 230V DC output. With a 7452W power rating and 3-phase AC input support, it fits applications where lower-power supplies are not sufficient.
What are the key electrical ratings of the RST-7K5-230L?
This model is rated for 7452W output power, 230V output voltage, and 32.4A rated current. It supports 3-phase input, including 3-wire delta 196-305VAC and 3-phase 4-wire wye 340-530VAC as listed in the product description.
Is the output adjustable on the Mean Well RST-7K5-230L?
Yes. The product description states that the output voltage and constant current level are programmable, and it also lists a wide voltage adjustment range of 1 to 120%. That makes this model better suited to systems that need controlled output flexibility within the product's supported range.
What cooling options does the RST-7K5-230L offer?
This model supports selectable water cooling or forced air cooling. That flexibility can be useful in high power installations where thermal management requirements vary by enclosure design or operating environment.
Can the RST-7K5-230L be used in higher-power parallel systems?
Yes. The description specifies active current sharing for up to 4 units, allowing total system power up to 28.5KW. This makes it a practical choice for higher-capacity DC power systems that need scalable output.
What protection features are included in this power supply?
The RST-7K5-230L includes protection for short circuit, overload, over voltage, and over temperature. The description also lists fan fail protection, along with built-in remote ON-OFF control and an alarm signal for system monitoring.
What operating temperature range is supported by the RST-7K5-230L?
The listed operating temperature range is -30°C to 70°C. This wide range supports use in demanding industrial environments, provided the rest of the system is designed for the same conditions.
What warranty comes with the Mean Well RST-7K5-230L?
This model includes a 5-year warranty. For buyers evaluating long-term deployment in industrial equipment, that warranty period is a meaningful indicator of product support and intended service life.
