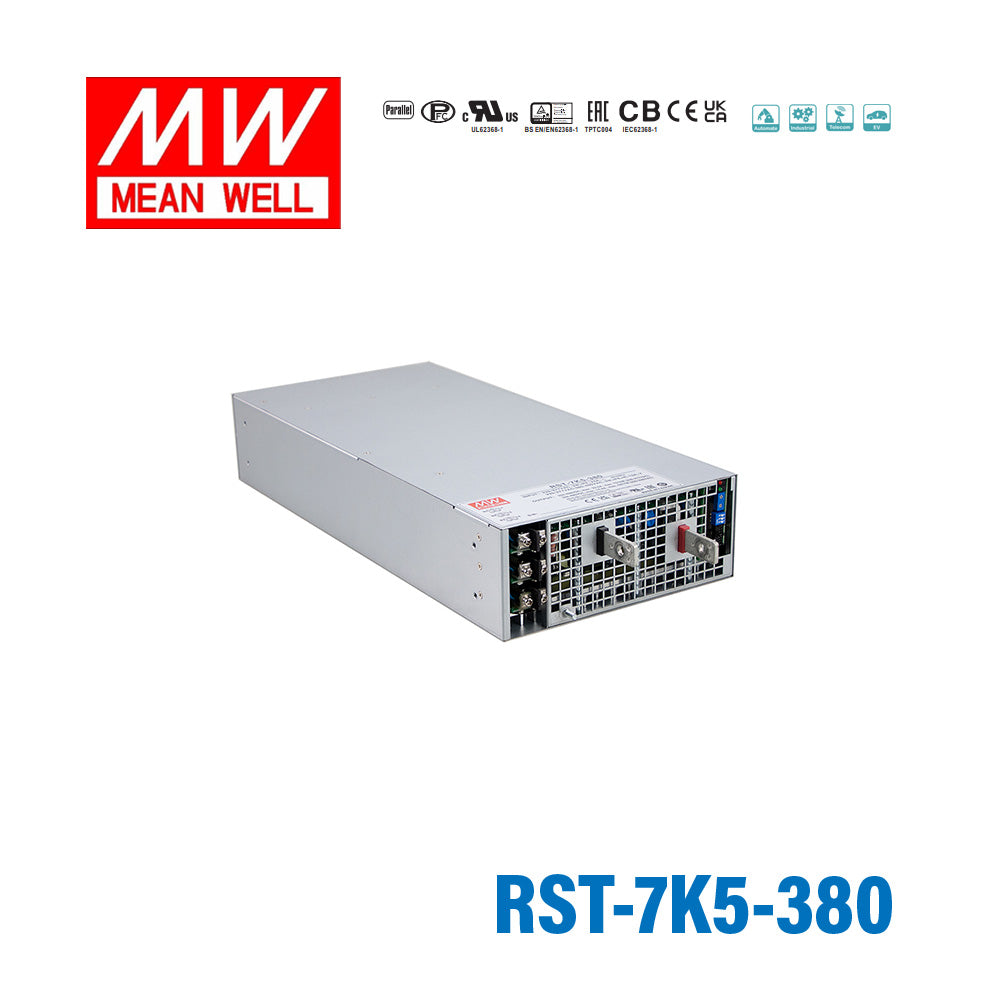

Mean Well RST-7K5-380 High Power AC/DC Power Supply 7515W, 3 Phase Input, 380V Output
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RST-7K5-380 High Power AC/DC Power Supply 7515W, 3 Phase ...
Key Features
- ✓3ψ 3-wire / △196305VAC or 3ψ 4-wire / Y 340530VAC
- ✓High efficiency up to 95%
- ✓Water / forced air cooling selectable
- ✓Output voltage and constant current level programmable
- ✓Wide voltage adjustment range 1~120%
- ✓Active current sharing up to 4 units(28.5KW)
- ✓Built-in remote ON-OFF control / Alarm signal
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature / Fan fail
- ✓5 years warranty
-
BrandMean Well
-
SeriesRST Series
-
Power Rating7515 Watt
-
Output Voltage380 Volt
-
Rated Current19.77 Ampere
-
Input Voltage196V~305V
-
No of Output1
-
Standards MetCB,CE,EAC,EN
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length18.11 in
-
Width8.31 in
-
Height3.29 in
-
Weight26.46 lb
::specification::
Frequently Asked Questions
What kind of applications is the Mean Well RST-7K5-380 designed for?
The RST-7K5-380 is a high power AC/DC enclosed power supply intended for industrial and other demanding B2B applications that require very high wattage and a 380V DC output. With a 7515W power rating, it fits projects where standard lower-power supplies are not sufficient.
What are the key electrical ratings of the RST-7K5-380?
This model is rated for 7515W output power with a nominal 380V output and 19.77A rated current. It uses a 3-phase input and is specified for either 3-phase 3-wire 196-305VAC or 3-phase 4-wire 340-530VAC input ranges.
Does the RST-7K5-380 support output adjustment or programmability?
Yes. Mean Well specifies that the output voltage and constant current level are programmable on the RST-7K5-380. It also has a wide voltage adjustment range of 1-120%, which gives more flexibility than fixed-output high power supplies.
How efficient is the Mean Well RST-7K5-380?
The RST-7K5-380 is rated for efficiency up to 95%. That makes it a strong fit for high power applications where conversion efficiency and reduced energy loss are important considerations.
Can this power supply be used in higher-capacity parallel power systems?
Yes. The RST-7K5-380 supports active current sharing for up to 4 units, with a stated combined capacity of up to 28.5KW. This makes it suitable for larger systems that need scalable power from multiple matched units.
What cooling options are available on the RST-7K5-380?
This model supports selectable water cooling or forced air cooling. That gives buyers more flexibility when choosing a power supply for environments where thermal management requirements vary.
What environmental range and protection features does this model offer?
The RST-7K5-380 is specified for operation from -30°C to 70°C. It also includes short circuit, overload, over voltage, over temperature, and fan fail protection, along with built-in alarm signal support and a 5-year warranty.
