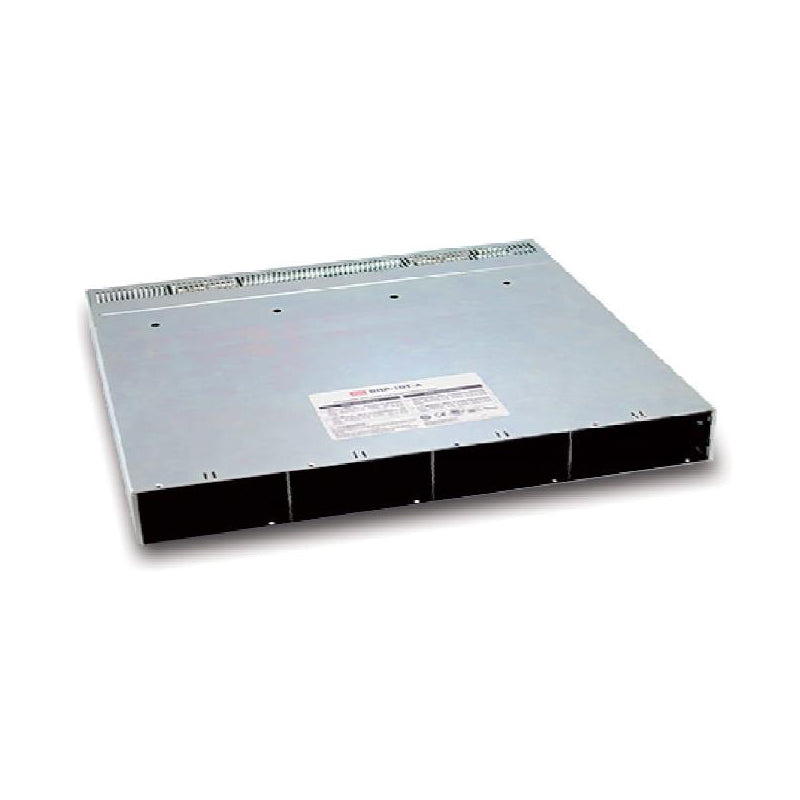

Mean Well DHP-1UT-A 3200~12800W 1U Distributed Power/Charger System

The DHP-1UT-A is a 1U distributed power and charger system designed for 19-inch rack applications. It is intended for higher-power installations that need a compact rack shelf supporting up to four 3200W modules for a total system capacity of up to 12800W.

This model is built for systems from 3200W up to 12800W, depending on how many 3200W modules are used in the rack shelf. Mean Well specifies support for four modules with active current sharing in a 1U profile.

Yes. The DHP-1UT-A is a 1U, 19-inch rack shelf intended for rack-mounted power system use. Its listed dimensions are 400 x 482.6 x 44 mm with the mounting bracket, or 400 x 440 x 44 mm without the bracket.

The DHP-1UT-A supports a universal AC input range of 90 to 264VAC and also accepts 127 to 370VDC. That wide range makes it suitable for facilities that need flexible input compatibility across different power environments.

Yes. Mean Well lists built-in PMBus support on this model, with CANBus available as an option. That makes it relevant for buyers who need monitoring or control capability in larger managed power systems.

The specified working temperature range is -30°C to +70°C, subject to the output derating curve. This gives it a broad operating range for industrial or controlled equipment-room environments where temperature tolerance matters.

The DHP-1UT-A is not a basic standalone supply; it is a rack-mount distributed power and charger platform built to hold multiple 3200W modules in a 1U chassis. Its hot-swap support, programmable output voltage and current, and active current sharing are the key distinctions for higher-power system design.

Mean Well specifies a 5-year warranty for the DHP-1UT-A. The unit is also listed with UL62368-1, CSA C22.2, and TUV EN62368-1 safety approvals, along with EMC compliance to EN55032 Class B and EN61000-4 series standards.
