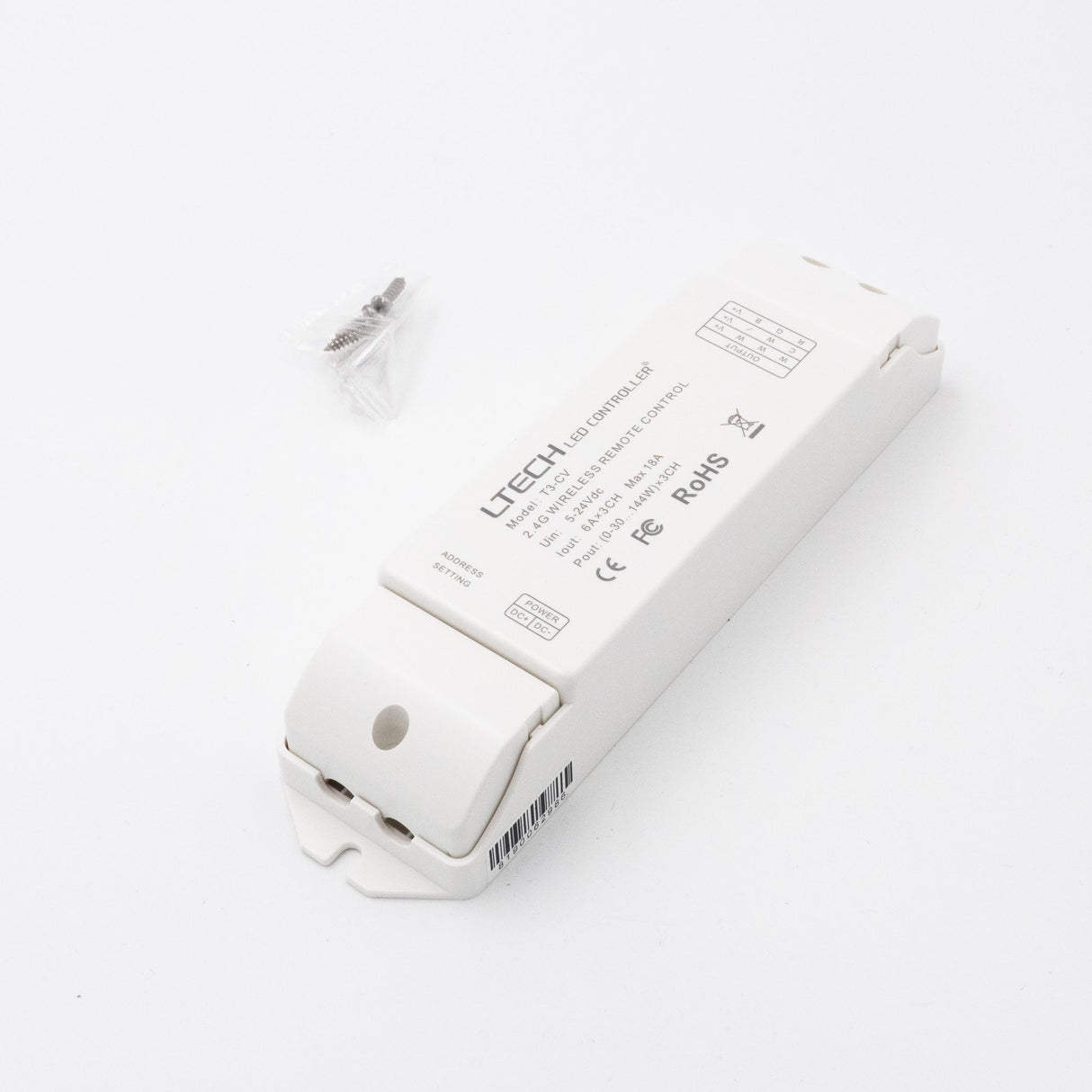

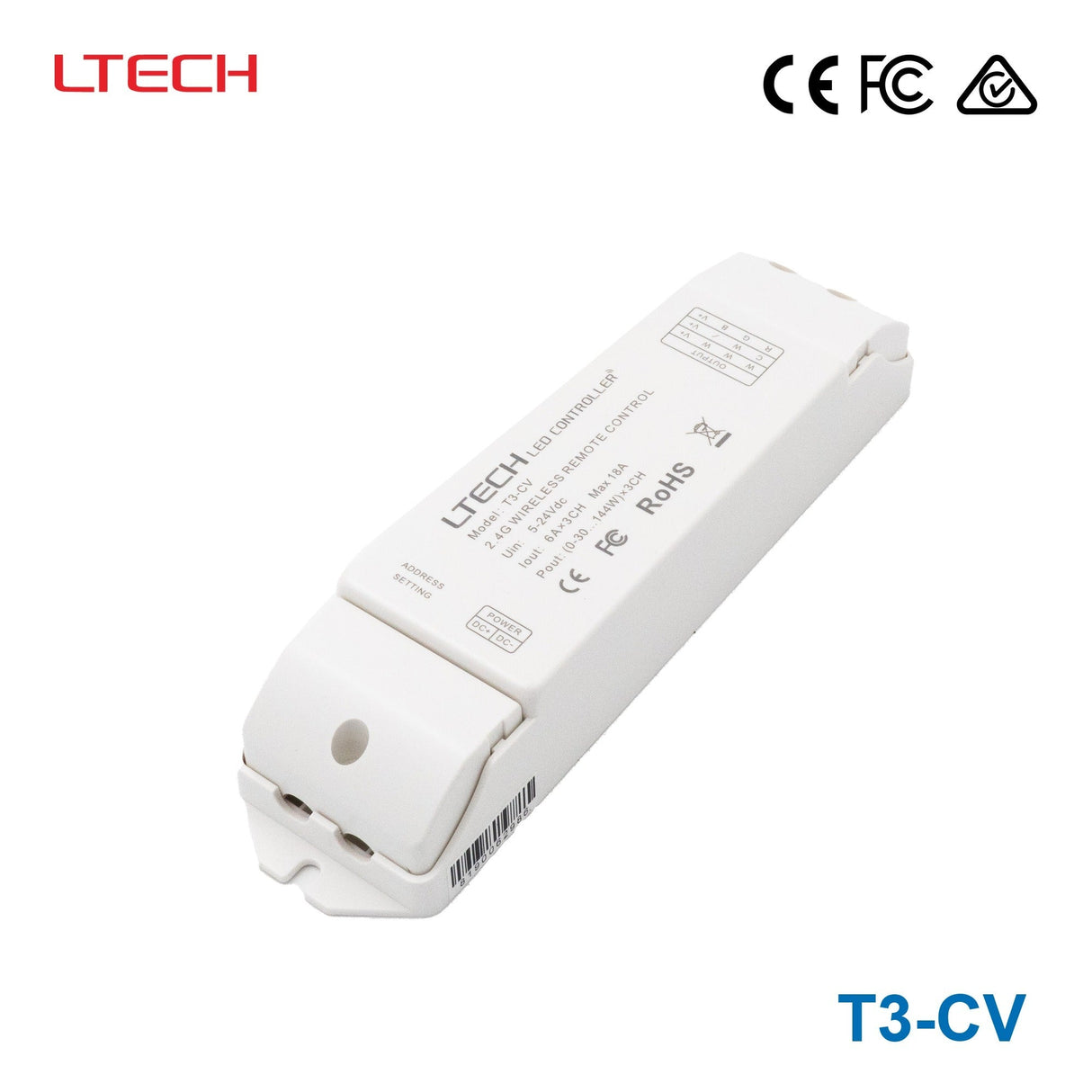

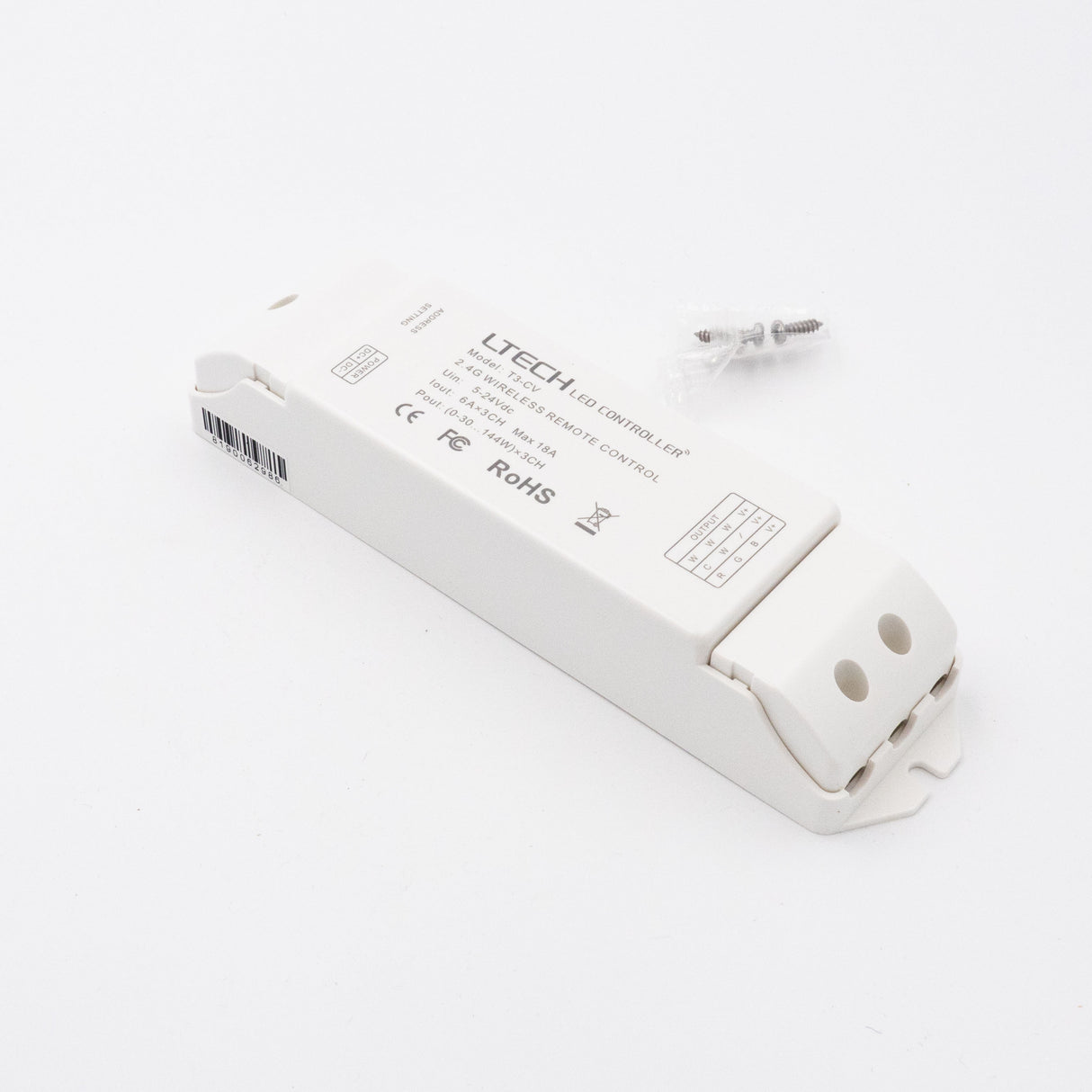

Ltech T3-CV Wireless RF Constant Voltage Controller - 3 Channel
Wireless zone receiver for low voltage circuits. Designed for use with T1, T2 and T3 series controllers. With 3 output channels, this unit is ideal for controlling single colour, bi-colour or RGB LED Strip.

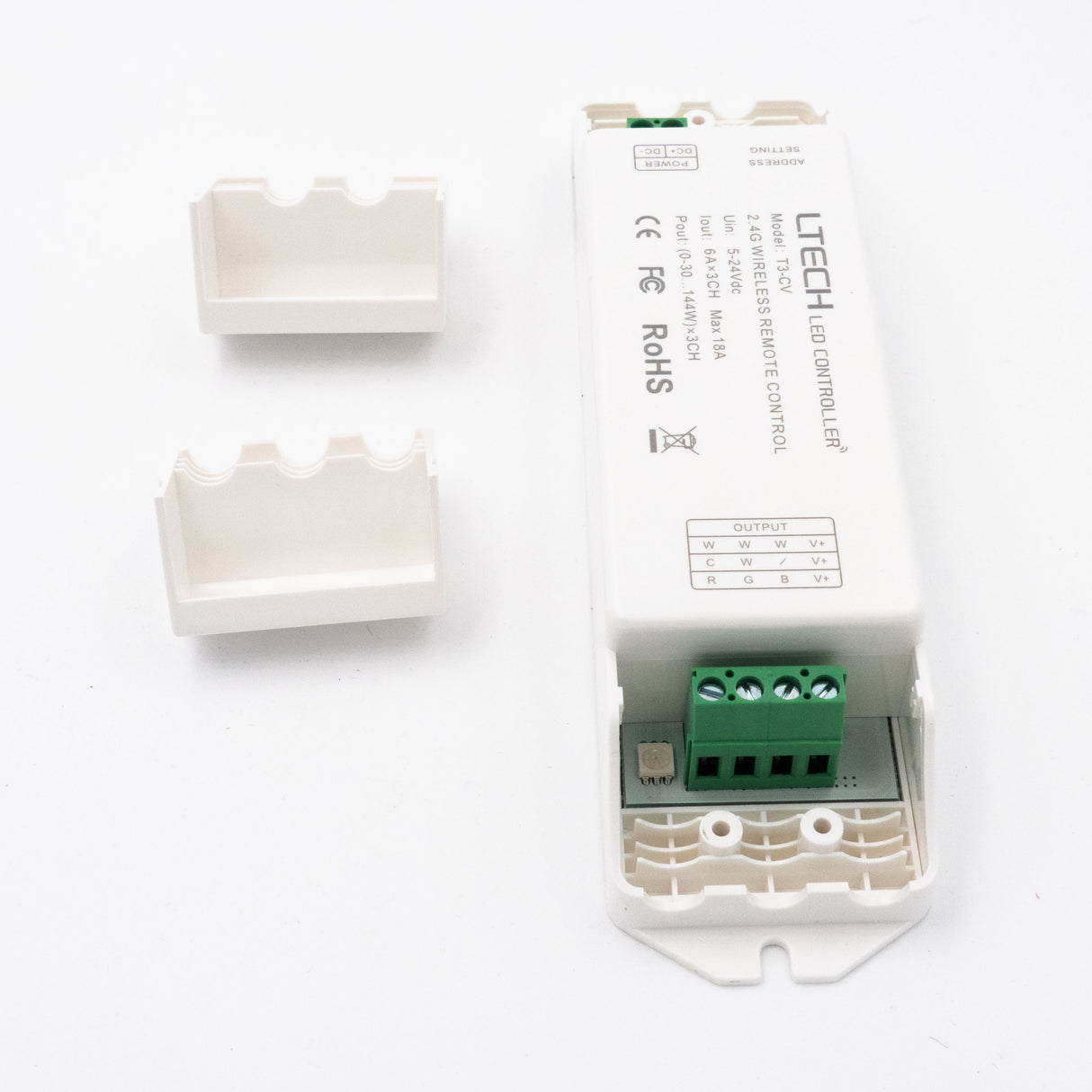

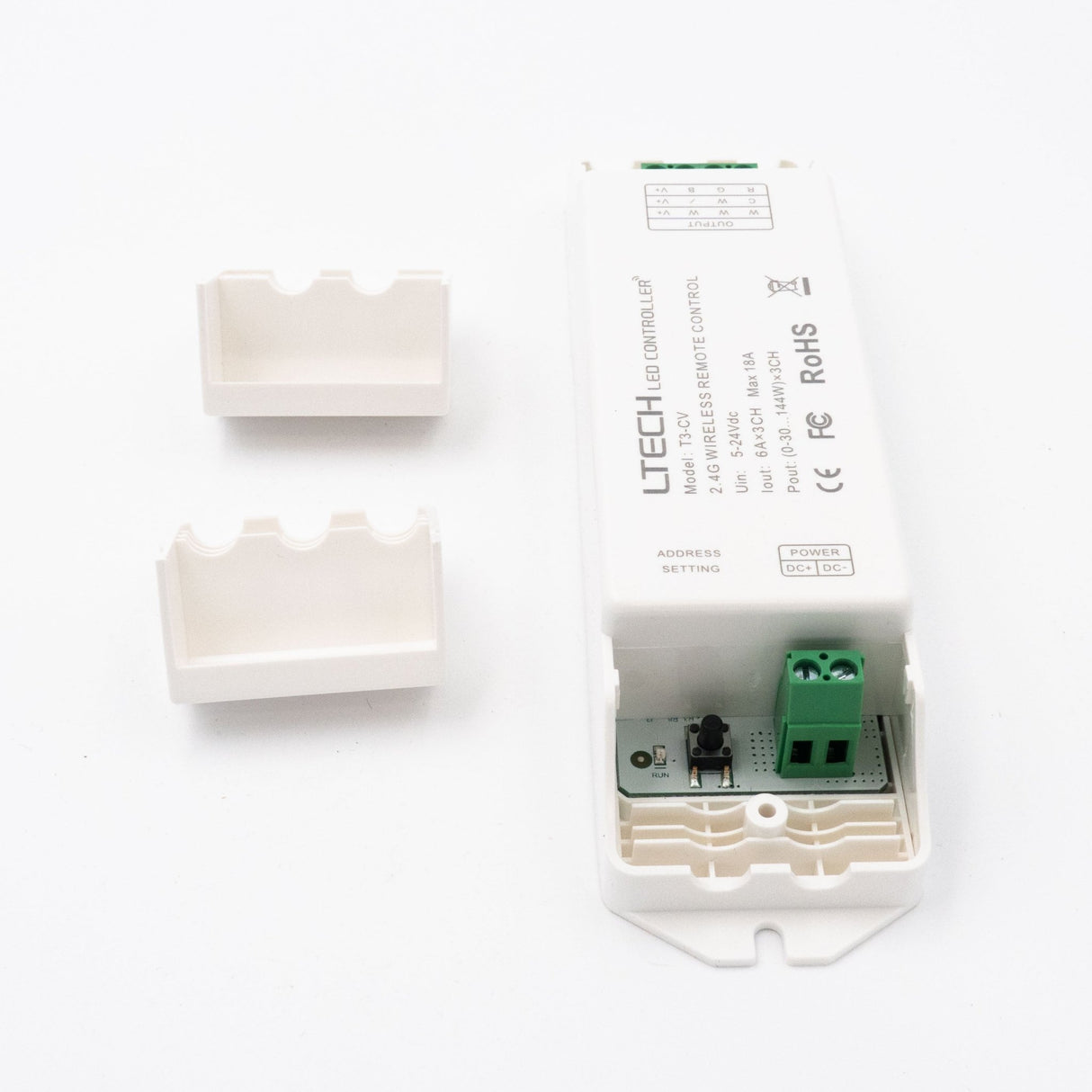

The receiver requires a low voltage input. It receives an RF control signal from a T1/2/3 controller in order to supply the correct dimming output across 3 channels. The input and output is via screw terminals on the sides of the unit.
The receiver operates on a low voltage 5~24V DC circuit, providing a PWM output, ideal for dimming LEDs.
-
BrandLtech
-
SeriesLtech T Series
-
Power Rating432 Watt
-
Output Voltage24 Volt
-
Rated Current18 Ampere
-
Input Voltage5V~24V
-
No of Output3
-
Dimming ControlRF Signal
-
Standards MetCE,FCC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length6.89 in
-
Width1.73 in
-
Height1.18 in
-
Weight0.31 lb
::specification::
Frequently Asked Questions
What is the Ltech T3-CV used for?
The Ltech T3-CV is a wireless RF constant voltage controller for low voltage LED lighting circuits. It is designed to control single-colour, bi-colour, or RGB LED strip applications using three output channels.
Which controllers is the T3-CV compatible with?
This model is designed for use with Ltech T1, T2, and T3 series controllers. It works as a wireless zone receiver that responds to RF control signals from those compatible controller series.
What are the main electrical ratings of the T3-CV?
The T3-CV is rated for 24 V output, 18 A current, and up to 432 W power. These published ratings make it suitable for constant voltage low voltage LED control within those limits.
Is the T3-CV suitable for RGB lighting control?
Yes. With three output channels, the T3-CV is suitable for RGB LED strip control, and it can also be used for single-colour or bi-colour applications. That makes it a flexible option for several low voltage lighting types.
Can the T3-CV be used in demanding temperature conditions?
This controller is rated for operation from -30 °C to 55 °C. That range makes it suitable for a variety of commercial and industrial indoor or protected-environment applications where temperature tolerance matters.
How does the T3-CV differ from a standard dimmer?
The T3-CV is specifically an RF constant voltage wireless receiver rather than a basic standalone dimmer. Its key distinction is compatibility with Ltech T1, T2, and T3 series RF controllers while supporting three-channel LED control.
What warranty is offered for the Ltech T3-CV?
The published warranty period for this model is 5 years. That longer warranty can be useful for buyers evaluating products for professional or ongoing commercial use.
