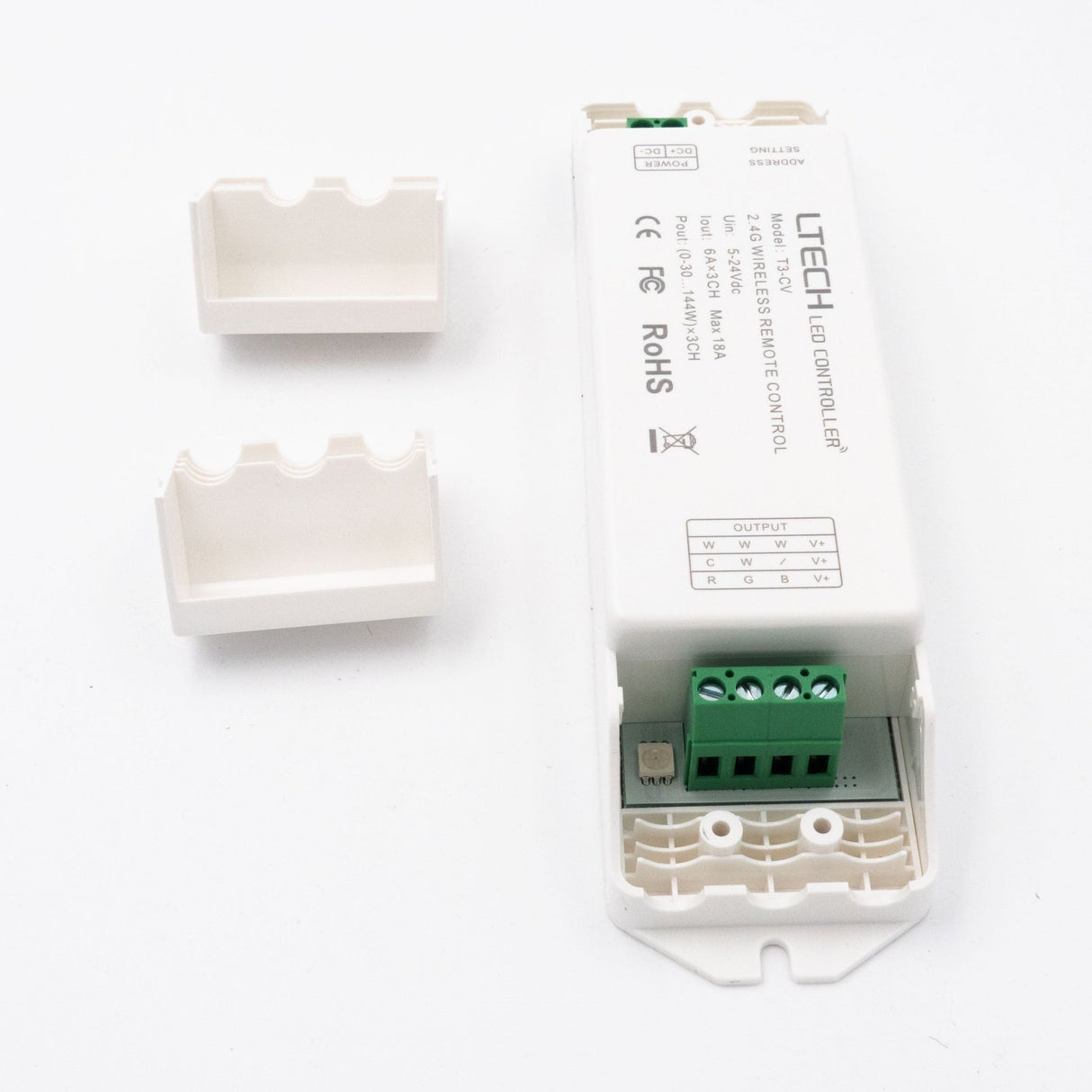

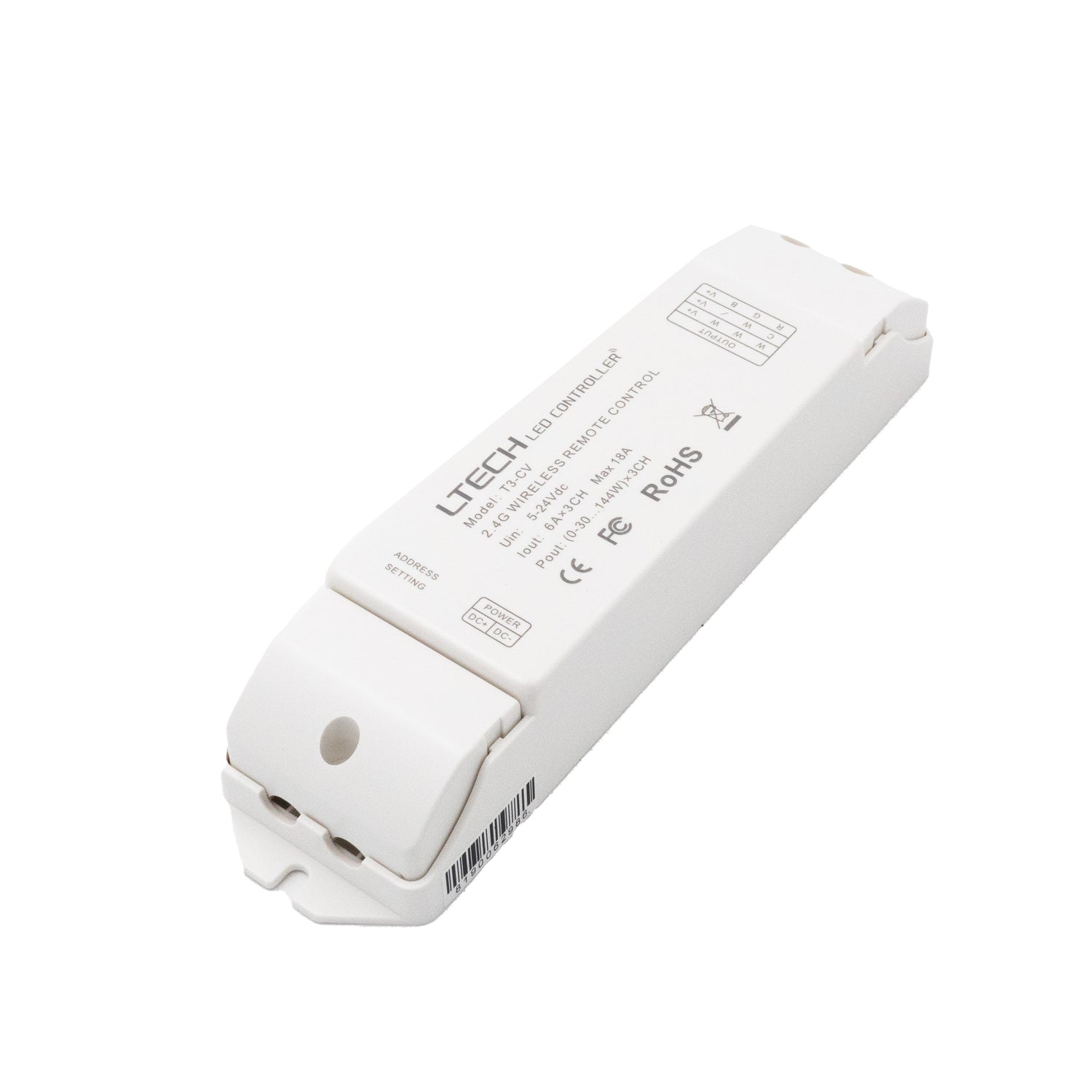

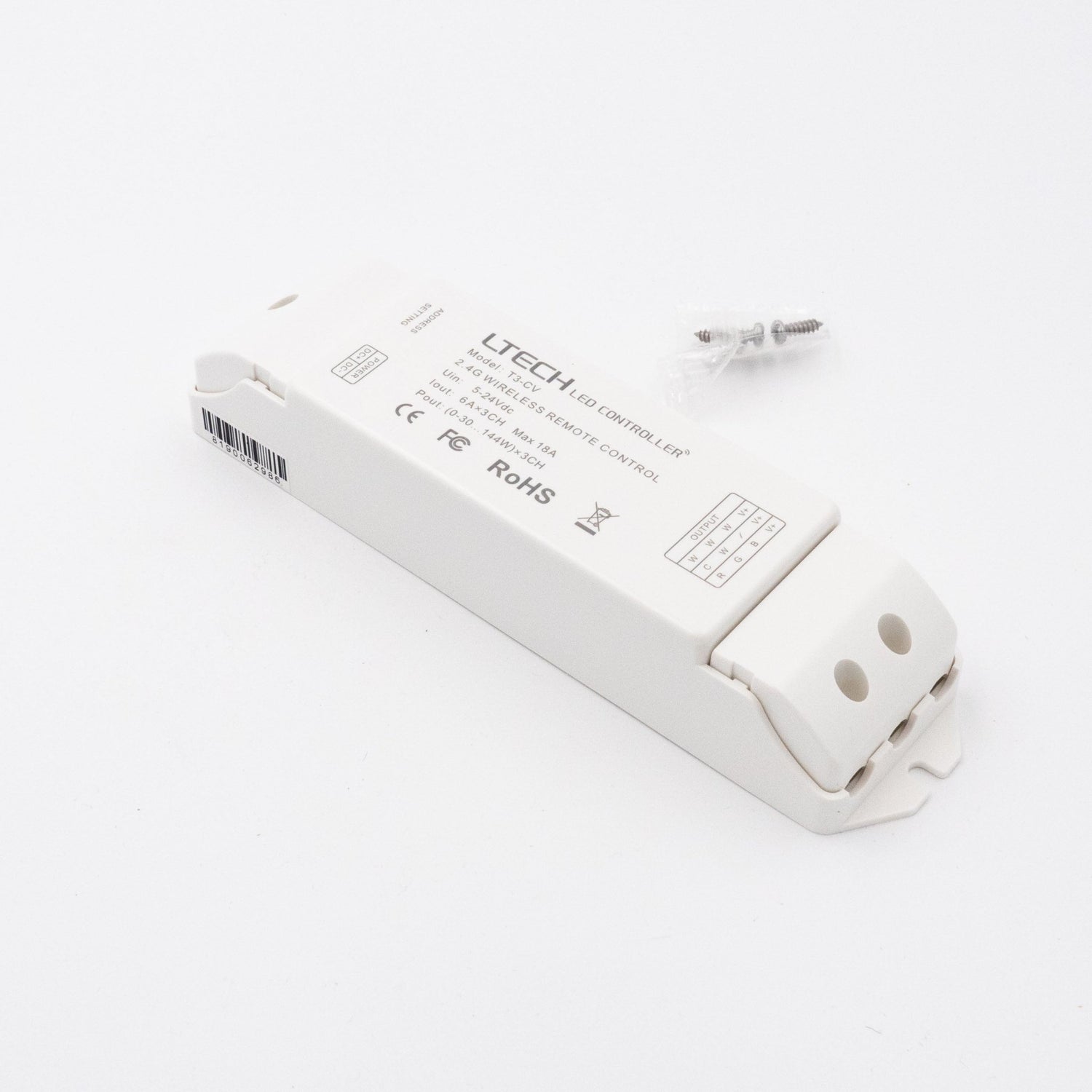

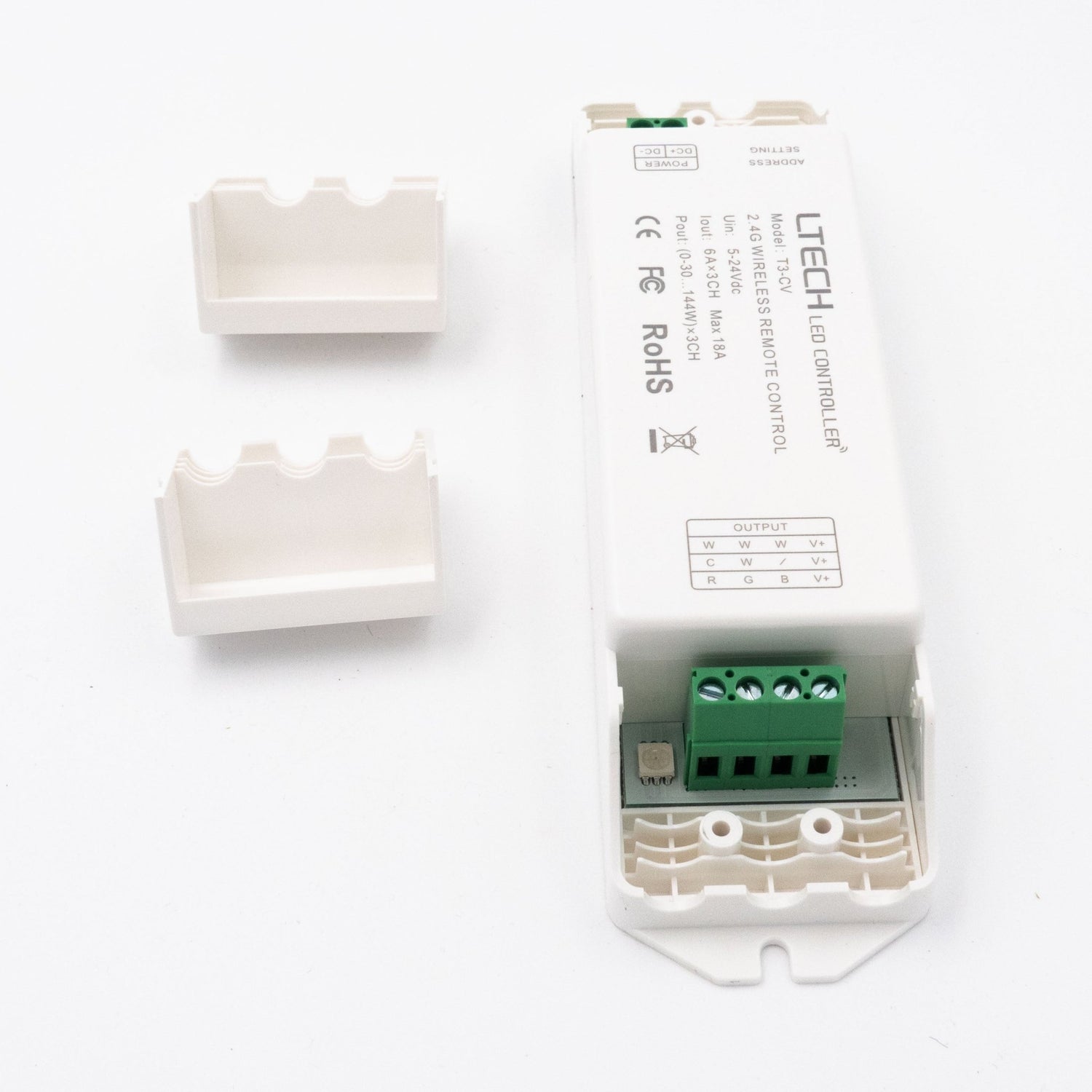

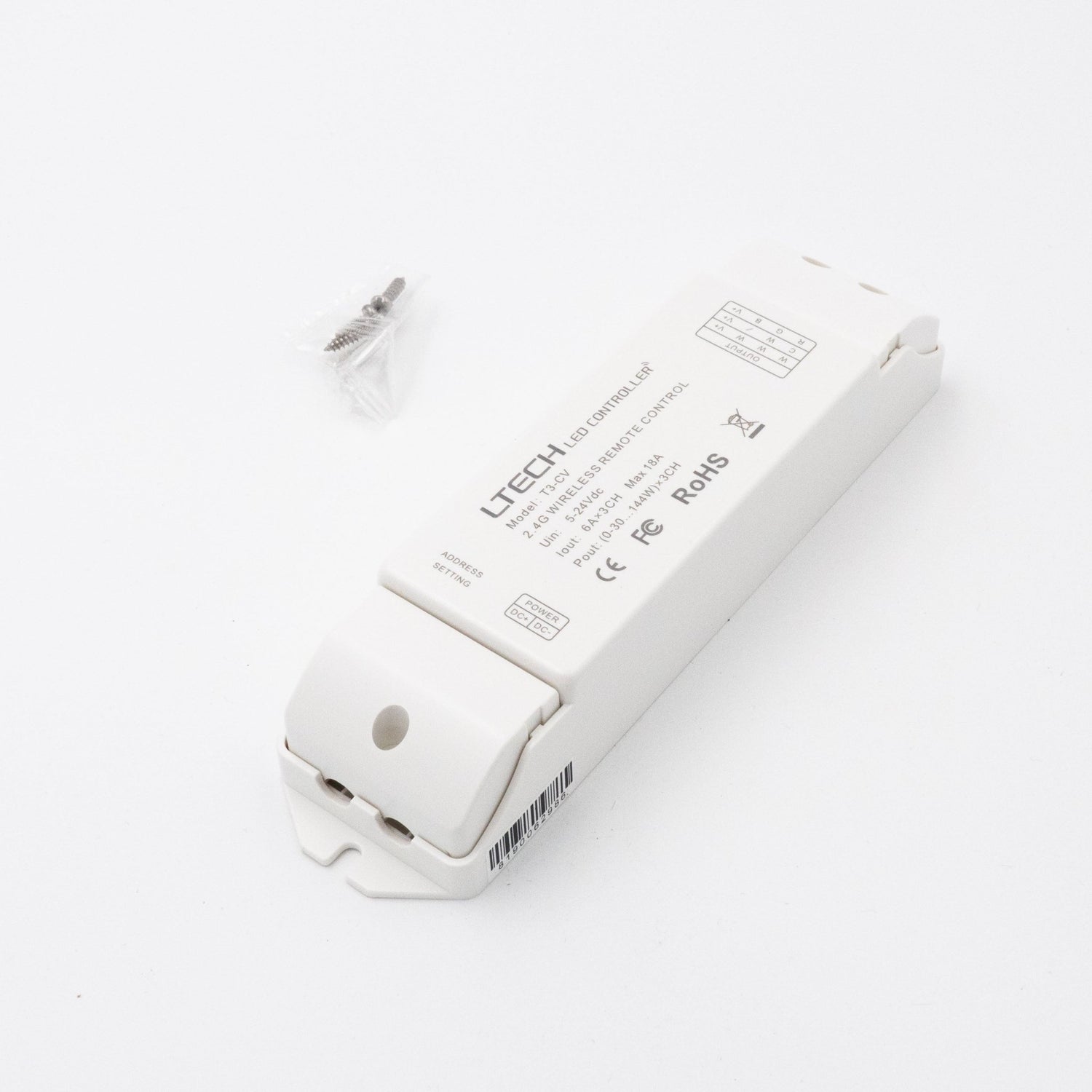

Ltech T3-CV Wireless RF Constant Voltage Controller - 3 Channel
Description
Description
Wireless zone receiver for low voltage circuits. Designed for use with T1, T2 and T3 series controllers. With 3 output channels, this unit is ideal for controlling single colour, bi-colour or RGB LED Strip.
The receiver requires a low voltage input. It receives an RF control signal from a T1/2/3 controller in order to supply the correct dimming output across 3 channels. The input and output is via screw terminals on the sides of the unit.
The receiver operates on a low voltage 5~24V DC circuit, providing a PWM output, ideal for dimming LEDs.
Specifications
Specifications
-
BrandLtech
-
SeriesLtech T Series
-
Power Rating432 Watt
-
Output Voltage24 Volt
-
Rated Current18 Ampere
-
Input Voltage5V~24V
-
No of Output3
-
Dimming ControlRF Signal
-
Standards MetCE,FCC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length6.89 in
-
Width1.73 in
-
Height1.18 in
-
Weight0.31 lb
