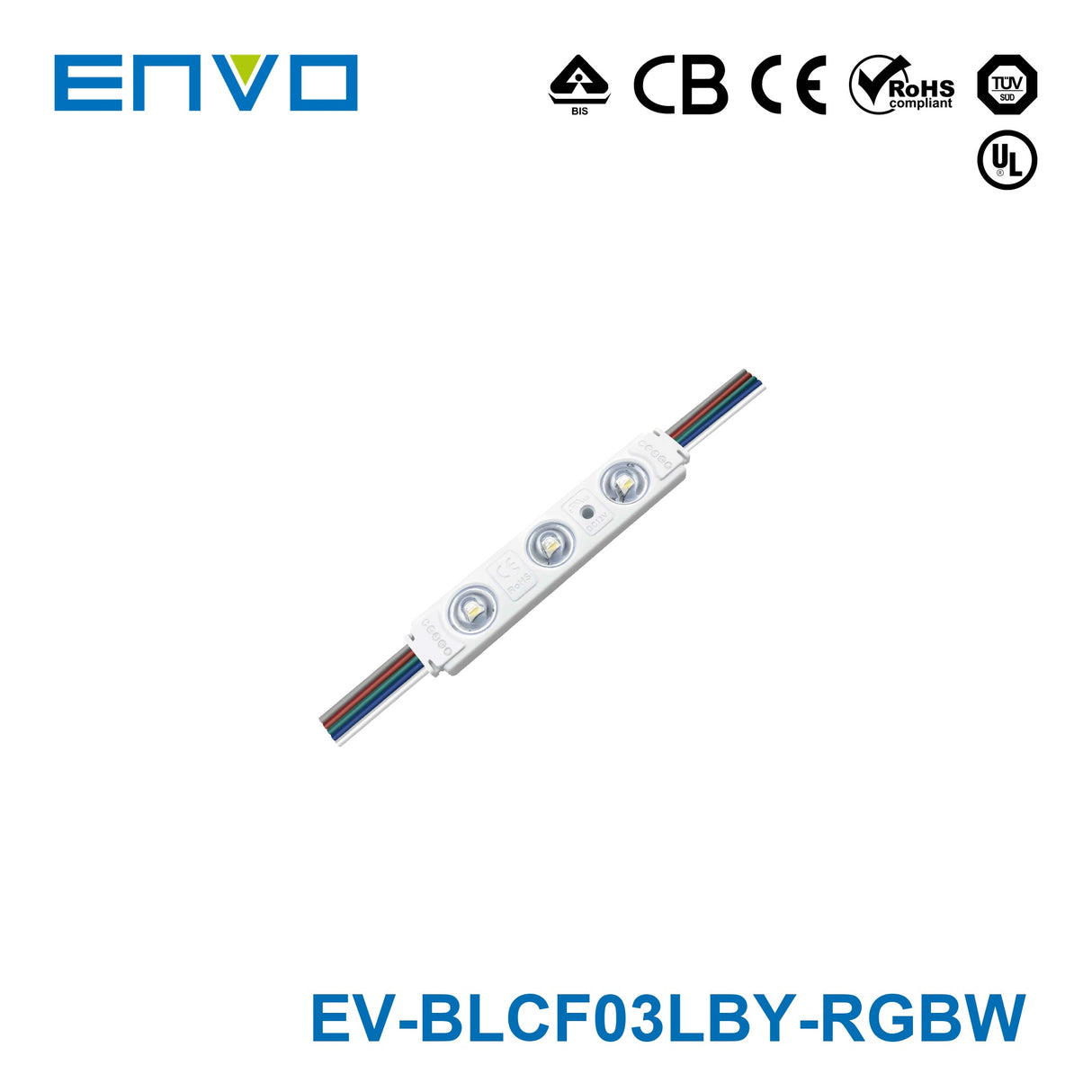

ENVO ChromaFlux LED Module Backlit - Triple LED
The EV-BLCF03LBY-RGBW is an ENVO LED module (12VDC, 0.96W, operating temperature: -25~+60°C).
Key Features
- ✓ Input voltage: 12VDC
- ✓ Power: 0.96W
- ✓ Rated current: 0.08A
- ✓ Dimmable
- ✓ Ingress protection: IP66
- ✓ Operating temperature: -25~+60°C
- ✓ Safety certifications: BIS, CB, CE, RoHS, TÜV, UL
- ✓ 5 year warranty
-
BrandEnvo
-
SeriesChromaFlux
-
Power Rating0.96 Watt
-
Rated Current0.08 Ampere
-
Dimming ControlDimmable
-
Standards MetBIS,CB,CE,ROHS,TUV,UL
-
Operating Temperature-25°C~60°C
-
Warranty5 Year
-
Length3.43 in
-
Width0.69 in
-
Height0.33 in
-
Weight0.03 lb
::specification::
Frequently Asked Questions
What is the ENVO ChromaFlux LED Module Backlit - Triple LED RGBW designed for?
This model is designed for backlit signage where wide, even illumination and RGBW color capability are needed. The product description positions it for commercial and public-facing environments such as airports, metros, banks, buildings, shopping malls, and other illuminated sign applications. It is intended for sign depths of 8-20 cm.
What are the key lighting specifications of this LED module?
This module uses a triple LED RGBW design with a 160° beam angle for broad light spread. Each module is rated at 0.96 W, 0.08 A, and 53 lm brightness. Its CRI is 75, and the module is dimmable.
Is this LED module a good fit for shallow or deep backlit sign cabinets?
This model is specified for signs with a depth of 8-20 cm. That makes it suitable for a range of backlit signage formats where consistent light coverage is important across the face of the sign. Buyers should match the cabinet depth to that stated range when evaluating fit.
Can this module be used in demanding indoor or outdoor environments?
It is built to operate in temperatures from -25 °C to 60 °C, which supports use in a wide range of commercial conditions. The product is also described for demanding applications such as transportation hubs, commercial buildings, and retail settings. For buyers comparing options, that operating range and certification set support commercial signage use cases.
What distinguishes this RGBW backlit module from a standard single-color signage module?
This ChromaFlux model combines triple LED RGBW output with a wide 160° optic lens, so it is aimed at signage projects that need both color flexibility and even illumination. Compared with a basic single-color module, its differentiation is the RGBW format and application focus on vibrant backlit displays. It is also sold as a 20-piece string for signage-oriented deployment.
What can buyers expect for service life and warranty on this model?
This LED module is rated for a 50,000-hour lifetime and carries a 5-year warranty. Those figures make it suitable for signage buyers looking for a long-service commercial product. The description also notes 100% production testing and multiple certifications as part of its quality positioning.
