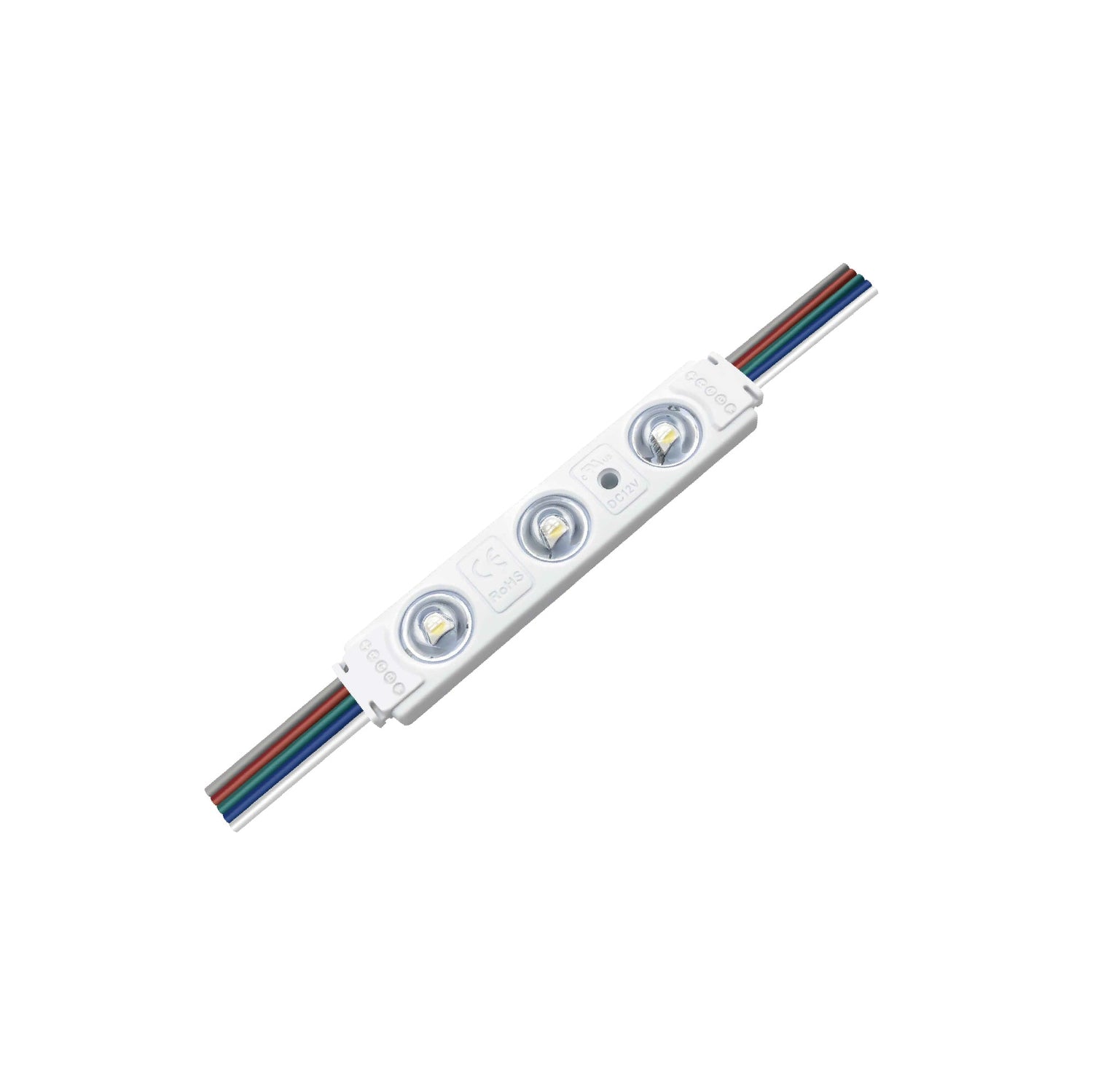

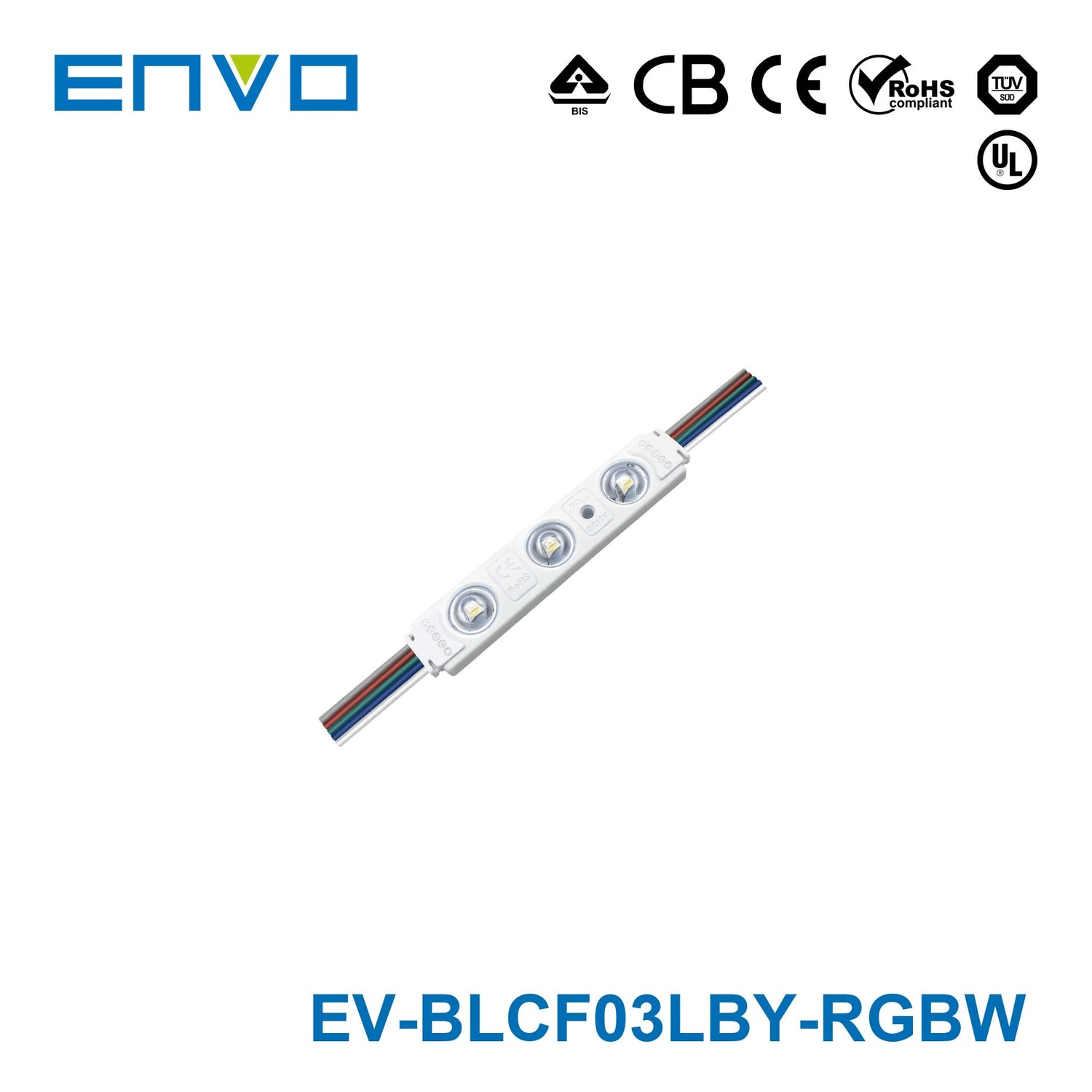

ENVO ChromaFlux LED Module Backlit - Triple LED
Overview
Features
- Powered by high output 5050 LED.
- Constant voltage.
- Clear 160° optic lens.

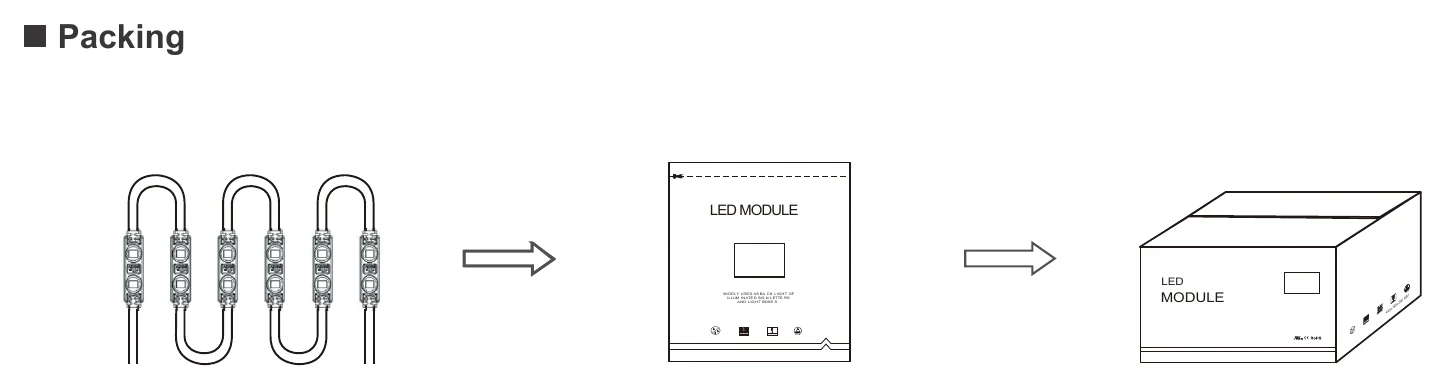

- 20 pcs per string.
- CE, RoHS, UL, TUV, BIS, CB and LM-80 certified.
Specifications
Items
- Part Number
- EV-BLCF03LBY-RGBW
- CCT (K)
- RGBW

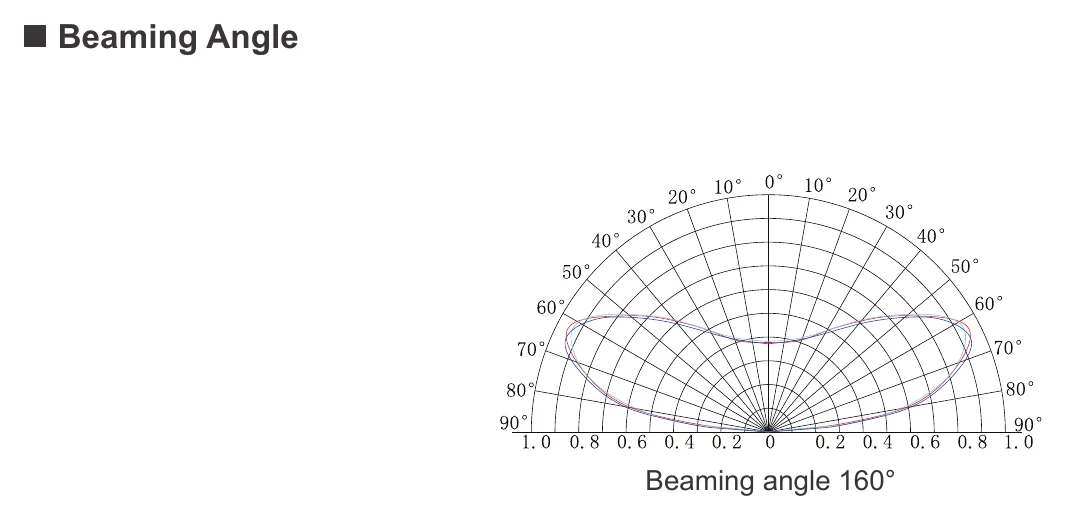

- Beaming Angle (°)
- 160°
- CRI (Ra)
- ≥75
- Luminous Flux (lm)
- R6 G22 B5 W20
- Voltage (V)
- DC12
- Power (W)
- 0.96
- Driving Method
- Constant Voltage
- Dimension (mm)
- 87*17.5*8.4
- Working Tem. (°C)
- -25 ~ +60
- Storage Tem. (°C)
- −25 ~ +70
- Protection Grade
- IP65
Certifications & ratings
- Certification marks
- CE, RoHS, UL, TÜV, BIS, CB, LM-80

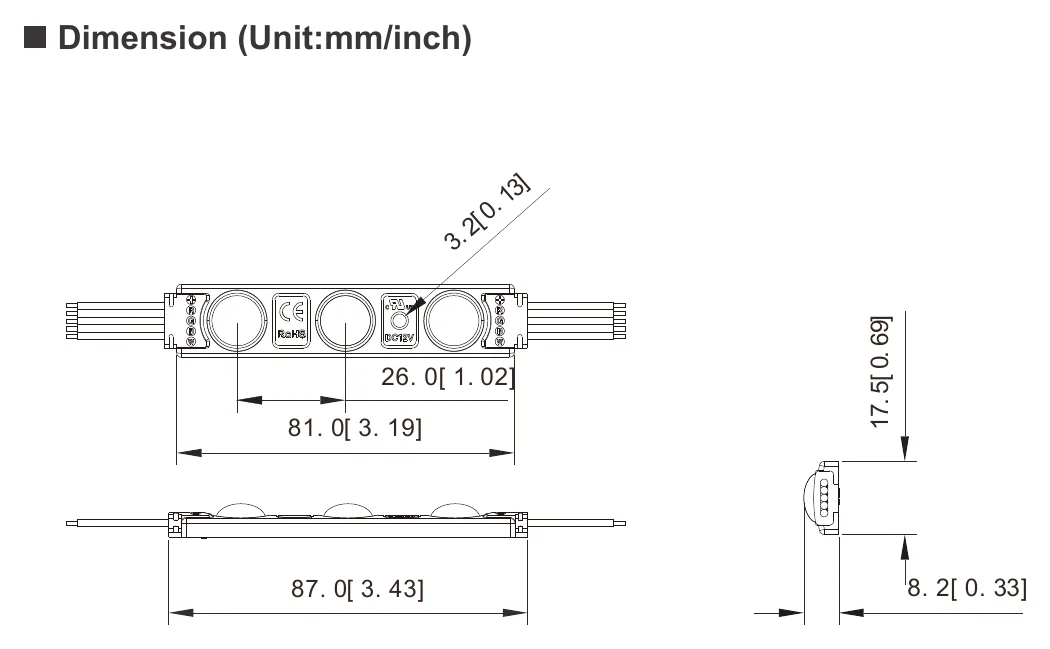

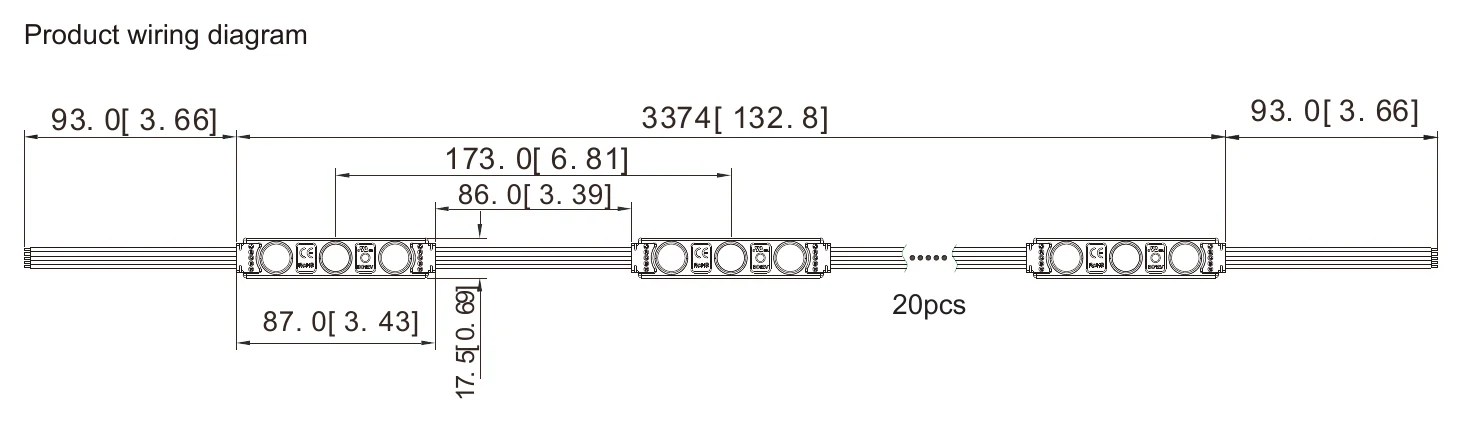

Technical drawings
Typical applications

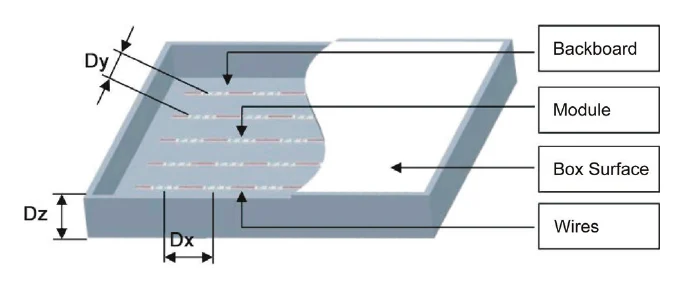

- Apply to 8-20 cm depth signs at airports, metros, banks, buildings and shopping malls, etc.
Downloads
Datasheet1
FAQ
What is the ENVO ChromaFlux LED Module Backlit - Triple LED RGBW designed for?
This model is designed for backlit signage where wide, even illumination and RGBW color capability are needed. The product description positions it for commercial and public-facing environments such as airports, metros, banks, buildings, shopping malls, and other illuminated sign applications. It is intended for sign depths of 8-20 cm.
What are the key lighting specifications of this LED module?
This module uses a triple LED RGBW design with a 160° beam angle for broad light spread. Each module is rated at 0.96 W and operates at DC12V. Its CRI is ≥75, and the luminous flux is R6 G22 B5 W20 lm.
Is this LED module a good fit for shallow or deep backlit sign cabinets?
This model is specified for signs with a depth of 8-20 cm. That makes it suitable for a range of backlit signage formats where consistent light coverage is important across the face of the sign. Buyers should match the cabinet depth to that stated range when evaluating fit.
Can this module be used in demanding indoor or outdoor environments?
It is built to operate in temperatures from -25 °C to 60 °C, which supports use in a wide range of commercial conditions. The product is also described for demanding applications such as transportation hubs, commercial buildings, and retail settings. For buyers comparing options, that operating range and certification set support commercial signage use cases.
What distinguishes this RGBW backlit module from a standard single-color signage module?
This ChromaFlux model combines triple LED RGBW output with a wide 160° optic lens, so it is aimed at signage projects that need both color flexibility and even illumination. Compared with a basic single-color module, its differentiation is the RGBW format and application focus on vibrant backlit displays. It is also sold as a 20-piece string for signage-oriented deployment.
What can buyers expect for service life and warranty on this model?
This ChromaFlux model carries a 5-year warranty. The description also notes multiple certifications as part of its quality positioning.
