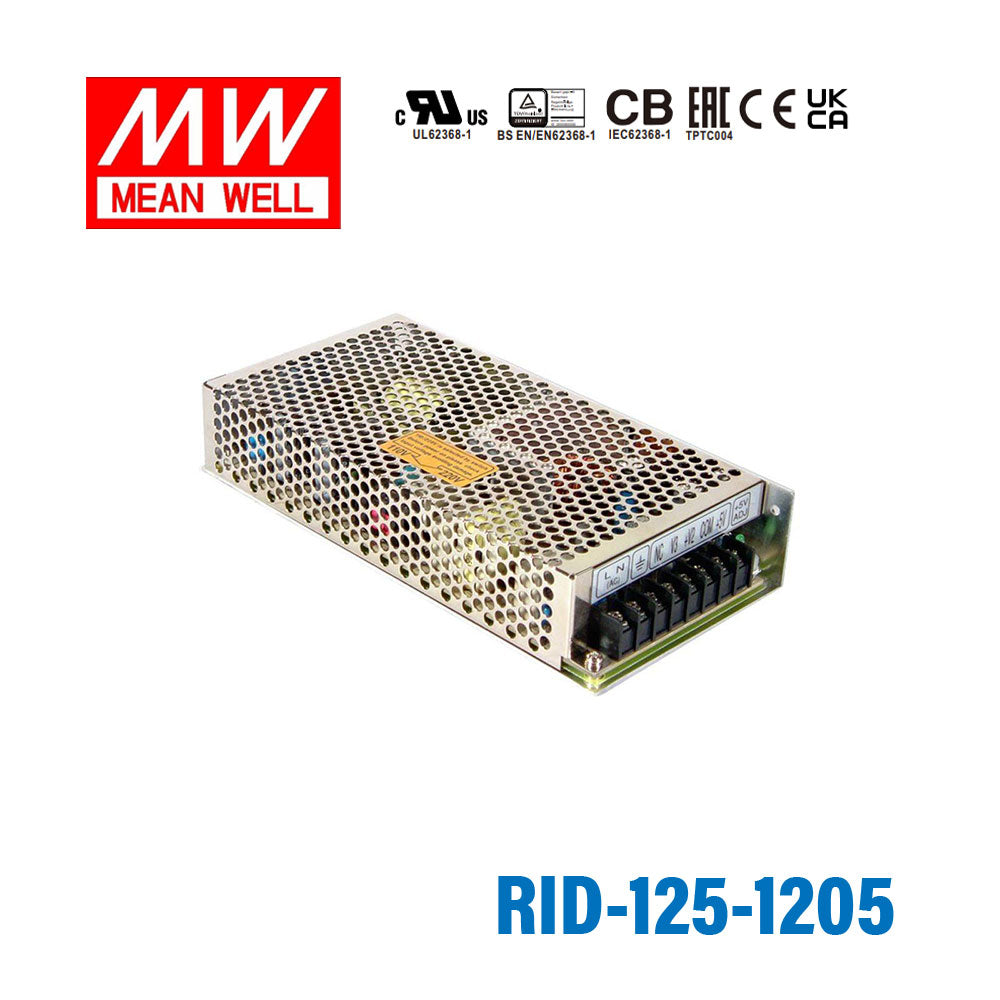

Mean Well RID-125-1205 AC-DC Dual output enclosed power supply 125W
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RID-125-1205 AC-DC Dual output enclosed power supply 125W
The RID-125 is a 125W Mean Well power converter (input range: 88~132VAC).
Key Features
- ✓ Input voltage range: 88~132VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: EN62368-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRID Series
-
Power Rating125 Watt
-
Output Voltage5 Volt
-
Rated Current3 Ampere
-
Input Voltage88V~132V
-
No of Output2
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length7.83 in
-
Width3.86 in
-
Height1.5 in
-
Weight1.54 lb
::specification::
Frequently Asked Questions
Can I use the RID-125-1205 for 5V industrial control electronics inside a machine cabinet?
It can suit 5V control electronics where the load stays within its 3A output current and 125W power rating. The enclosed format and isolated dual output also make it relevant for industrial control assemblies rather than open-board bench use.
Is the RID-125-1205 suitable for embedded systems or low-voltage IT hardware that runs on 5V?
Yes, this model is aligned with 5V embedded or IT hardware because its output is 5V at 3A. Buyers should match it to equipment that needs a 5V supply and stay within the listed 125W rating.
Can the RID-125-1205 power 5V automation interfaces or monitoring modules?
It is a reasonable fit for 5V automation modules, interface boards, or monitoring electronics that need a regulated low-voltage supply. The 3A output current makes it better suited to moderate 5V loads than to heavier-current systems.
Is the RID-125-1205 meant for indoor or outdoor environments?
The operating temperature range is -20°C to +70°C, so the unit is specified for a fairly broad indoor equipment environment. No IP rating is listed in the provided specs, so outdoor exposure or washdown use is not confirmed by this data.
How does the RID-125-1205 compare with the other RID family options listed here?
The listed siblings are RID-125-1224 at 125W, 12V, 3.7A; RID-125-1248 at 125W, 12V, 2.3A; RID-125-2405 at 125W, 5V, 3A; RID-125-2448 at 125W, 24V, 22A; RID-50A at 50W, 5V, 2A; RID-50B at 50W, 5V, 1.4A; RID-65A at 65W, 5V, 3A; RID-65B at 65W, 5V, 2A; RID-85A at 85W, 5V, 4A; and RID-85B at 85W, 5V, 2A. Compared with those, the RID-125-1205 is one of the 125W, 5V, 3A options in the series.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other RID-125 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well RID-125-2448 AC-DC Dual output enclosed power supply 125W | 125W | 24V | 22A | Indoor | $40.91 | View |
| Mean Well RID-125-2405 AC-DC Dual output enclosed power supply 125W | 125W | 5V | 3A | Indoor | $40.91 | View |
| Mean Well RID-125-1248 AC-DC Dual output enclosed power supply 125W | 125W | 12V | 2.3A | Indoor | $40.91 | View |
| Mean Well RID-125-1224 AC-DC Dual output enclosed power supply 125W | 125W | 12V | 3.7A | Indoor | $40.91 | View |
