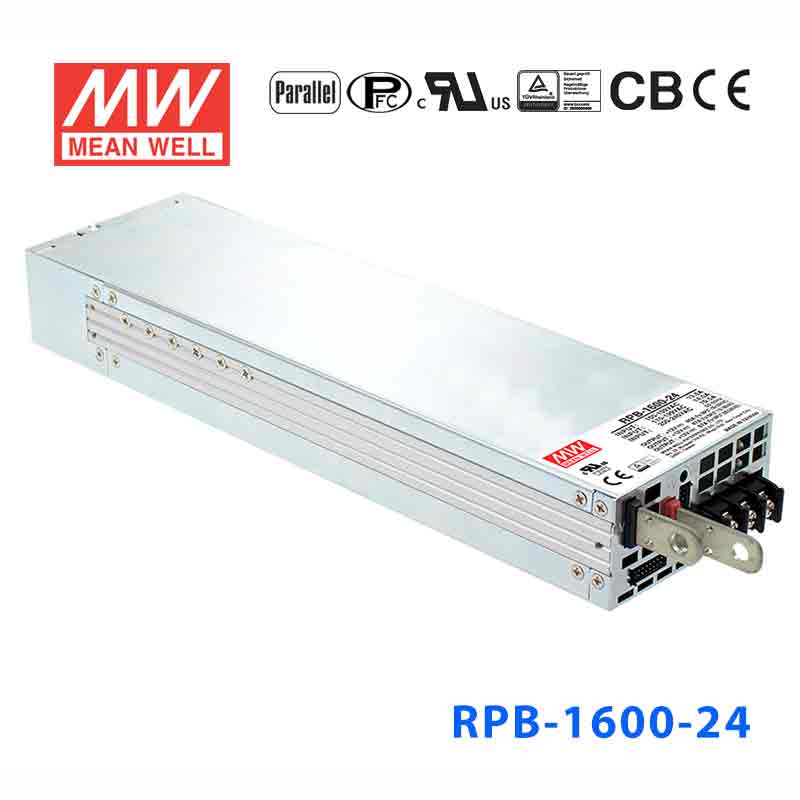

Mean Well RPB-1600-24 Battery Chargers 1600W 28.8V 55A - 3 Stage W/PFC
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPB-1600-24 Battery Chargers 1600W 28.8V 55A - 3 Stage W/PFC
The RPB-1600 is a 1600W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPB Series
-
Power Rating1600 Watt
-
Output Voltage28.8 Volt
-
Rated Current55 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length11.81 in
-
Width3.35 in
-
Height1.61 in
-
Weight3.97 lb
::specification::
Frequently Asked Questions
What is the Mean Well RPB-1600-24 designed for?
The Mean Well RPB-1600-24 is a 1600W battery charger built for industrial and B2B power applications. It is intended for charging lead-acid batteries, including gel, flooded, and AGM types, as well as Li-ion batteries using lithium iron or lithium manganese chemistries.
What are the output ratings of the RPB-1600-24?
This model provides a 28.8V output and a rated current of 55A. Its power rating is 1600W, which makes it suitable for higher-power battery charging applications that need substantial output capacity.
Does the RPB-1600-24 support different battery charging profiles?
Yes, the RPB-1600-24 includes built-in default 3-stage charging curves and also supports a programmable charging curve. That makes it more flexible than fixed-profile chargers when battery chemistry or charging requirements vary by application.
Is the RPB-1600-24 compatible with both lead-acid and lithium battery types?
Yes, this charger is specified for lead-acid batteries including gel, flooded, and AGM, and for Li-ion batteries using lithium iron and lithium manganese chemistries. Buyers should still confirm that the selected charging curve matches the battery requirements for the application.
Can the RPB-1600-24 be used in demanding temperature conditions?
The RPB-1600-24 is rated for operation from -30°C to 70°C. It also uses forced-air cooling with a built-in DC fan, which supports use in more demanding industrial environments within its specified temperature range.
Does the RPB-1600-24 support system communication or monitoring features?
Yes, this model includes a built-in I²C interface and PMBus protocol support, with optional CANBus protocol noted in the product description. These features make it better suited for integrated power systems that require communication and control capabilities.
Can multiple RPB-1600-24 units be used in higher-power systems?
Yes, the product description states active current sharing up to 4800W in a 2+1 configuration. This is a useful feature for applications that need higher total charging capacity or redundancy beyond a single 1600W unit.
What warranty is offered with the Mean Well RPB-1600-24?
The RPB-1600-24 is listed with a 5-year warranty period. That warranty term can be an important consideration for industrial buyers evaluating long-term support and lifecycle value.
