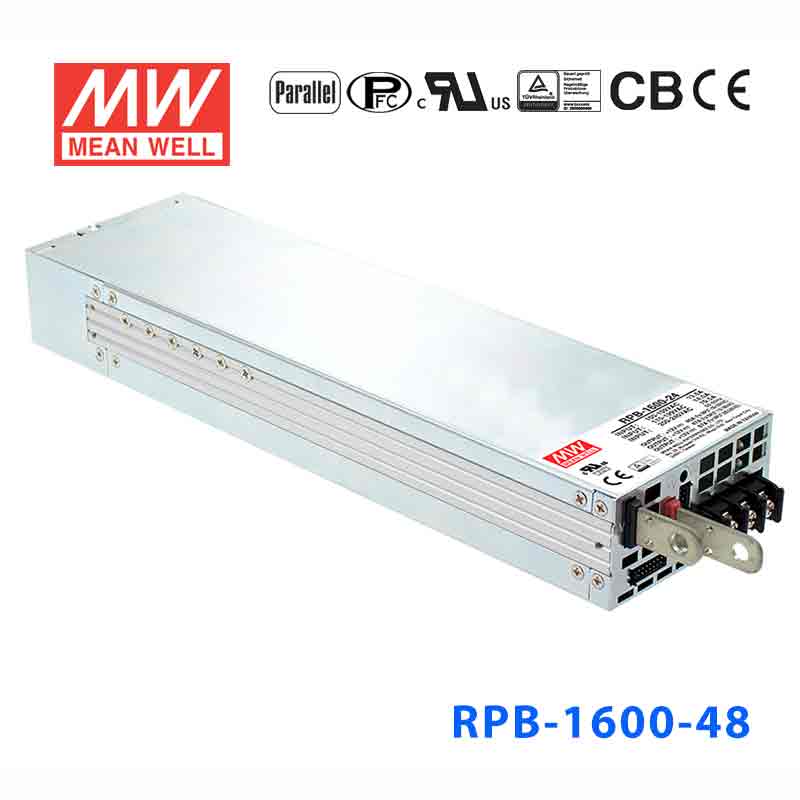

Mean Well RPB-1600-48 Battery Chargers 1600W 57.6V 27.5A - 3 Stage W/PFC

suitable for lead-acid and Li-ion batteries, built-in default 3 stage charging curve, built-in I²C interface, PMBus protocol, active current sharing up to 4800W
$418.75 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

ilt-
Charger for lead-acid batteries(Gel, flooded and AGM) and Li-ion batteries(lithium iron and lithium manganese)
Built-in default 3 stage charging curves and programmable curve
Built-in I²C interface, PMBus protocol(Optional CANBus protocol)
Universal AC input/Full range
Built-in active PFC function
Forced air cooling by buin DC fan
Output voltage and current programmable
Built-in OR-ing FET
Active current sharing up to 4800W(2+1)
Protections: Battery under voltage/Battery no connection/Short circuit/Over voltage/Over temperature
Optional conformal coating
5 years warranty



General Specification

AC input voltage range 90~264VAC ; 127~370VDC
AC inrush current (max.) Cold start, 35A at 230VAC
DC adjustment range up to 125% rated output voltage
Leakage current from battery <2mA / 240VAC
Over temperature protection Shut down o/p voltage, auto recovery
Over voltage protection 115%~135% rated output voltage
Withstand voltage I/P-O/P: 3KVAC, I/P-FG: 2KVAC, O/P-FG: 1.5KVAC
Working temperature -30~+70ºC (refer to output derating curve)
Safety standards UL62368-1, TUV EN62368-1, approved
EMC standards EN55032 class B, EN61000-3-2,3; -4-2,4,5,6,8,11
Case No 250
Dimension (LxWxH) (mm) 300*85*41mm
Packing 6pcs/13.6Kg

Specifications

  • Brand
    Mean Well
  • Series
    RPB Series
  • Power Rating
    1600 Watt
  • Output Voltage
    57.6 Volt
  • Rated Current
    27.5 Ampere
  • Input Voltage
    90V~264V
  • No of Output
    1
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    5 Year
  • Length
    11.81 in
  • Width
    3.35 in
  • Height
    1.61 in
  • Weight
    3.97 lb
