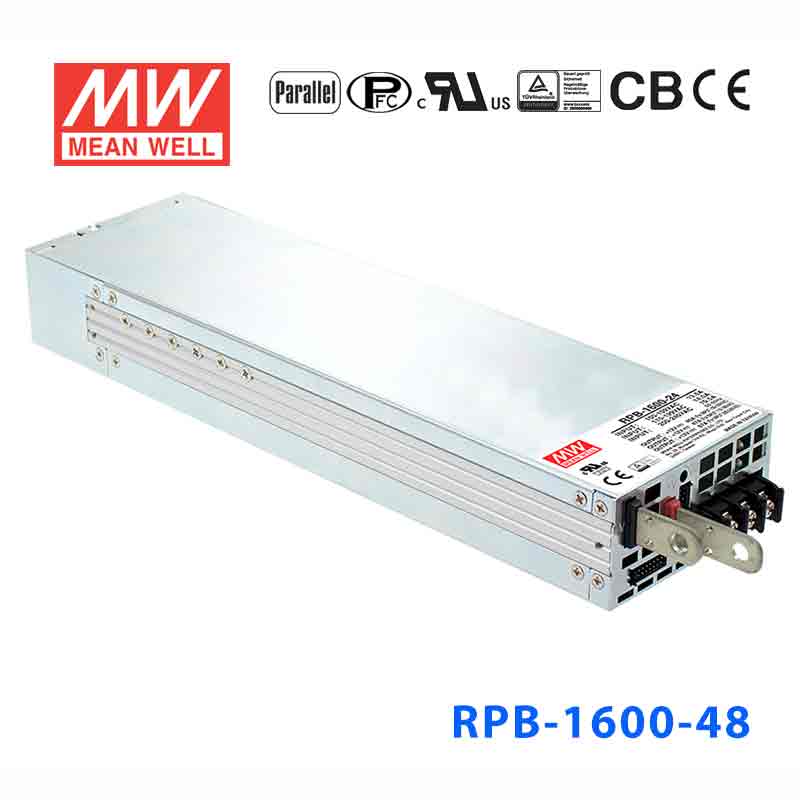

Mean Well RPB-1600-48 Battery Chargers 1600W 57.6V 27.5A - 3 Stage W/PFC
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPB-1600-48 Battery Chargers 1600W 57.6V 27.5A - 3 Stage ...
The RPB-1600 is a 1600W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPB Series
-
Power Rating1600 Watt
-
Output Voltage57.6 Volt
-
Rated Current27.5 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length11.81 in
-
Width3.35 in
-
Height1.61 in
-
Weight3.97 lb
::specification::
Frequently Asked Questions
What type of batteries is the Mean Well RPB-1600-48 designed to charge?
The RPB-1600-48 is designed for lead-acid batteries, including gel, flooded, and AGM types, as well as Li-ion batteries using lithium iron and lithium manganese chemistries. It includes built-in default 3-stage charging curves and also supports a programmable charging curve for applications that need more flexibility.
What are the main output specifications of the RPB-1600-48?
This model is rated at 1600W with a 57.6V output and 27.5A rated current. Those specifications make it suitable for higher-power battery charging applications where a 57.6V charger is required.
Is the Mean Well RPB-1600-48 suitable for industrial or OEM battery charging applications?
Yes, this model is positioned for industrial and B2B use where higher power, programmable charging behavior, and communication capability matter. Features such as active PFC, programmable output voltage and current, and support for I2C and PMBus make it relevant for integrated equipment and professional charging systems.
Can the RPB-1600-48 be used in demanding temperature environments?
The specified operating temperature range is -30°C to 70°C, which supports use in a wide range of commercial and industrial environments. It also uses forced-air cooling with a built-in DC fan to support thermal performance under load.
What makes the RPB-1600-48 different from a basic battery charger?
Compared with a basic charger, the RPB-1600-48 adds built-in active PFC, programmable charging behavior, and digital communication support through I2C and PMBus, with optional CANBus protocol. It also includes an OR-ing FET and active current sharing up to 4800W in a 2+1 configuration, which is useful in more advanced power system designs.
Does the RPB-1600-48 support scalable higher-power systems?
Yes, the product description states active current sharing up to 4800W in a 2+1 arrangement. That makes this model a practical option for applications that need more charging capacity than a single 1600W unit can provide.
