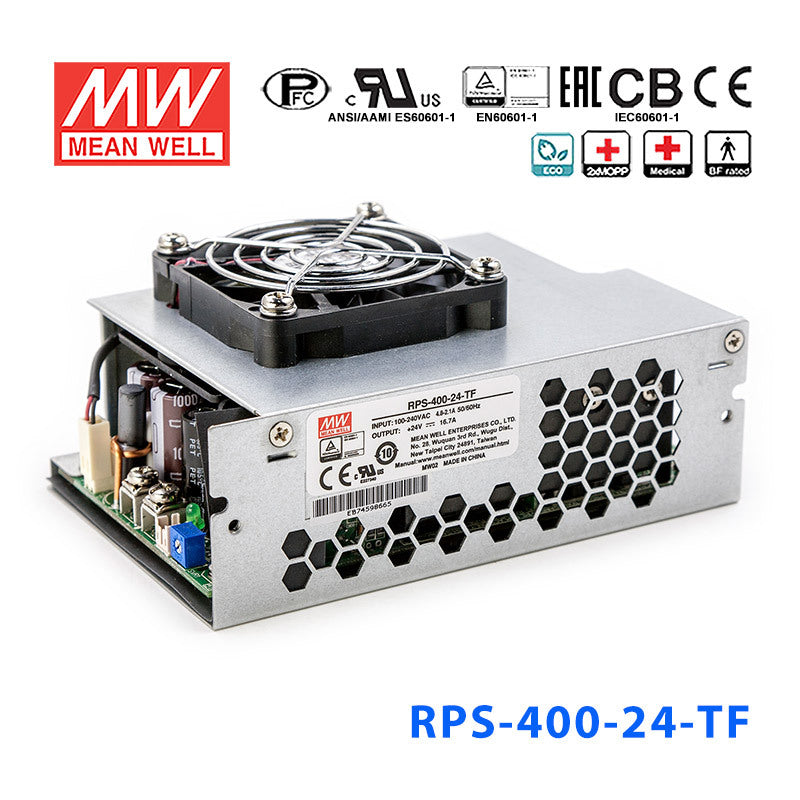

Mean Well RPS-400-24-TF Green Power Supply W 24V 10.5A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-400-24-TF Green Power Supply W 24V 10.5A - Medical Po...
The RPS-400-24 is a 400W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: IEC60601-1, TUV EN60601-1, EAC TP TC 004 , UL ANSI / AAMI ES60601-1 (3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating252 Watt
-
Output Voltage24 Volt
-
Rated Current10.5 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length5.12 in
-
Width3.39 in
-
Height2.62 in
-
Weight1.28 lb
::specification::
Frequently Asked Questions
Can I use the RPS-400-24-TF for a 24V machine control or automation system?
Yes, if the machine control system requires constant 24V DC and the load does not exceed 10.5A. With a 252W rating, it is suitable for higher-capacity 24V control systems within that output range.
Is the RPS-400-24-TF a fit for a 24V industrial computer or networking enclosure?
It can be a fit for 24V DC industrial computing or network hardware as long as the total draw stays within 252W and 10.5A. The 80-264VAC input is useful for equipment that may be installed in different AC power regions.
Can this power supply run a 24V actuator, valve, or control accessory group from one source?
Yes, when the combined constant 24V DC load remains at or below 10.5A. That makes it a practical option for grouped 24V automation accessories that need more capacity than smaller 24V RPS models.
Would the RPS-400-24-TF work in a medical or laboratory system that needs low leakage current?
The listed features include medical safety approval and extreme low leakage current, and the unit is identified as a medical power supply. Electrically, it provides constant 24V DC up to 10.5A and 252W for systems designed around that requirement.
What are the key differences between the RPS-400-24-TF and the other 24V RPS-400 versions?
The RPS-400-24-TF, RPS-400-24, RPS-400-24-C, and RPS-400-24-SF all share the same 252W, 24V, and 10.5A rating. The differences shown here are physical: this TF version is 130.0 x 86.0 x 66.5 mm and 0.58 kg, versus 127.0 x 76.2 x 35.0 mm and 0.39 kg, 130.0 x 86.0 x 43.0 mm and 0.51 kg, and 160.0 x 86.0 x 43.0 mm and 0.64 kg for the other variants.
Is the RPS-400-24-TF suitable for outdoor installations?
The operating temperature range is listed as -30°C to +70°C, so it can cover a wide temperature span in indoor or sheltered equipment. No IP rating is provided in the supplied specs, so the product data does not support use in exposed outdoor or wet conditions.
