Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

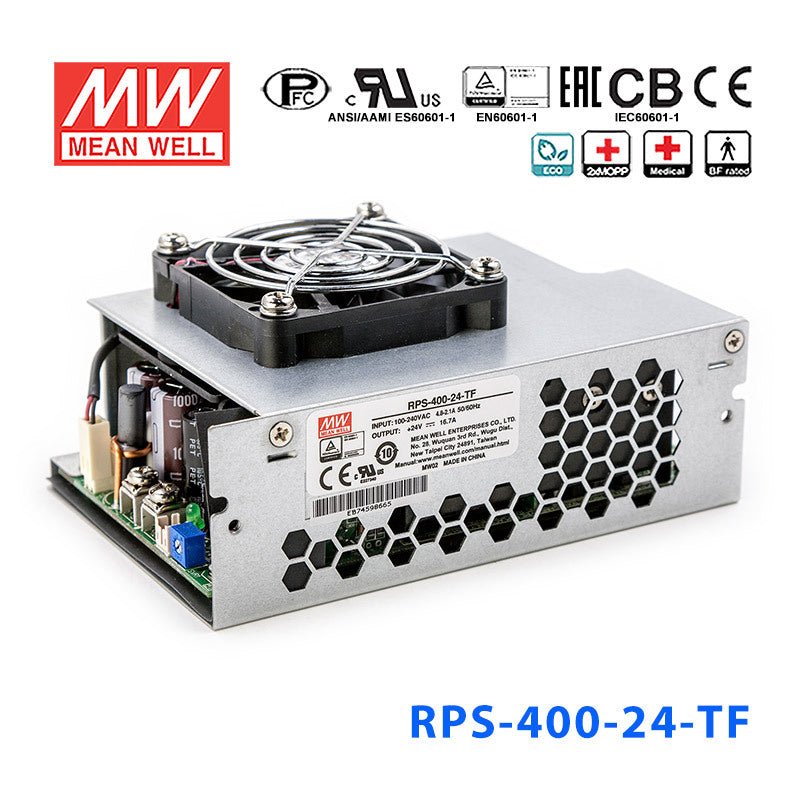

Mean Well RPS-400-24-TF Green Power Supply W 24V 10.5A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-400-24-TF Green Power Supply W 24V 10.5A - Medical Po...
The RPS-400-24-TF is a 252W Mean Well open-frame power supply (input: 80~264VAC, operating temperature: -30~+70°C).
Key Features
- ✓ Input voltage: 80~264VAC
- ✓ Output voltage (max): 24V
- ✓ Rated output current: 10.5A
- ✓ Operating temperature: -30~+70°C
- ✓ Safety certifications: CB, CE, cUL, EAC, SHIDE
- ✓ 3 year warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating252 Watt
-
Output Voltage24 Volt
-
Rated Current10.5 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length5.12 in
-
Width3.39 in
-
Height2.62 in
-
Weight1.28 lb
::specification::
Frequently Asked Questions
Can I use the RPS-400-24-TF for a 24V machine control or automation system?
Yes, if the machine control system requires constant 24V DC and the load does not exceed 10.5A. With a 252W rating, it is suitable for higher-capacity 24V control systems within that output range.
Is the RPS-400-24-TF a fit for a 24V industrial computer or networking enclosure?
It can be a fit for 24V DC industrial computing or network hardware as long as the total draw stays within 252W and 10.5A. The 80-264VAC input is useful for equipment that may be installed in different AC power regions.
Can this power supply run a 24V actuator, valve, or control accessory group from one source?
Yes, when the combined constant 24V DC load remains at or below 10.5A. That makes it a practical option for grouped 24V automation accessories that need more capacity than smaller 24V RPS models.
Would the RPS-400-24-TF work in a medical or laboratory system that needs low leakage current?
The listed features include medical safety approval and extreme low leakage current, and the unit is identified as a medical power supply. Electrically, it provides constant 24V DC up to 10.5A and 252W for systems designed around that requirement.
What are the key differences between the RPS-400-24-TF and the other 24V RPS-400 versions?
The RPS-400-24-TF, RPS-400-24, RPS-400-24-C, and RPS-400-24-SF all share the same 252W, 24V, and 10.5A rating. The differences shown here are physical: this TF version is 130.0 x 86.0 x 66.5 mm and 0.58 kg, versus 127.0 x 76.2 x 35.0 mm and 0.39 kg, 130.0 x 86.0 x 43.0 mm and 0.51 kg, and 160.0 x 86.0 x 43.0 mm and 0.64 kg for the other variants.
Is the RPS-400-24-TF suitable for outdoor installations?
The operating temperature range is listed as -30°C to +70°C, so it can cover a wide temperature span in indoor or sheltered equipment. No IP rating is provided in the supplied specs, so the product data does not support use in exposed outdoor or wet conditions.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other RPS-400 Models
1 other model| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well RPS-400-36-TF Green Power Supply W 36V 7A - Medical Power Supply | 252W | 36V | 7A | Indoor | $105.68 | View |
