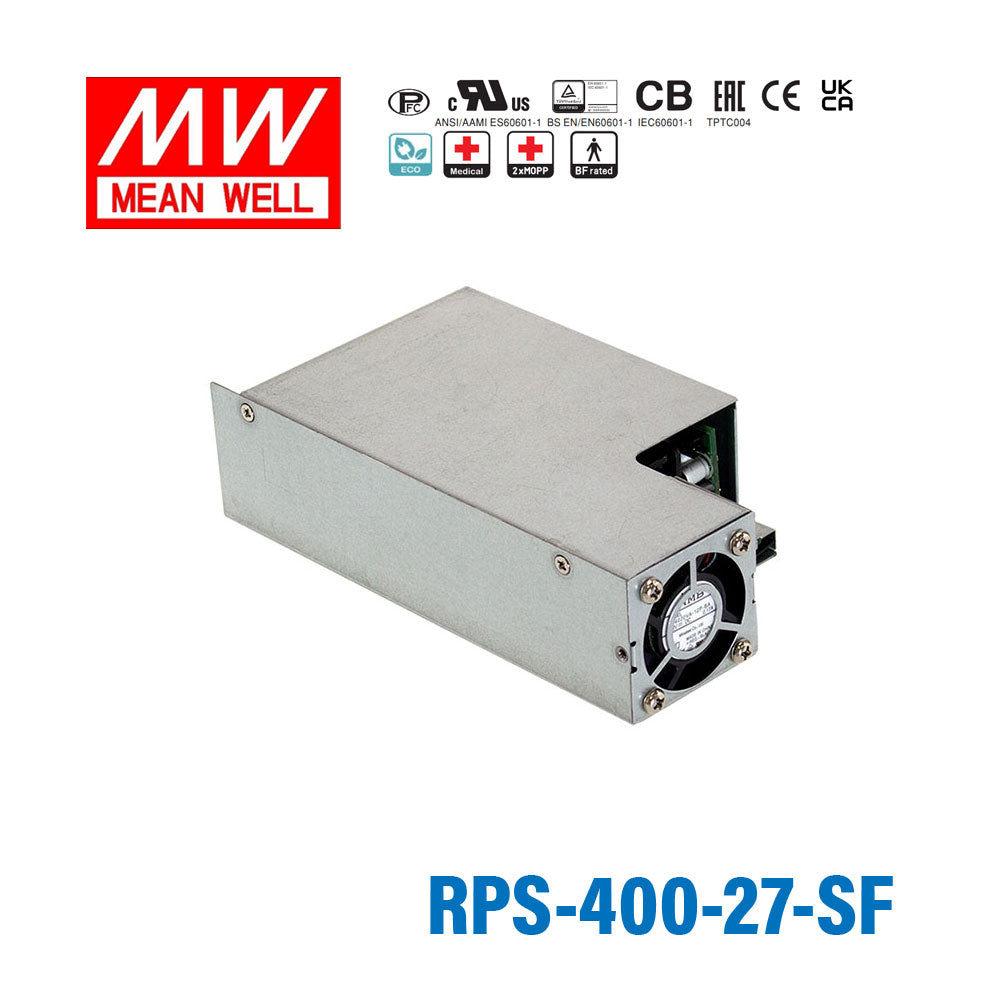

Mean Well RPS-400-27-SF Green Power Supply W 27V 9.3A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-400-27-SF Green Power Supply W 27V 9.3A - Medical Pow...
The RPS-400-27 is a 400W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: IEC60601-1, TUV EN60601-1, EAC TP TC 004 , UL ANSI / AAMI ES60601-1 (3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating251.1 Watt
-
Output Voltage27 Volt
-
Rated Current9.3 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.3 in
-
Width3.39 in
-
Height1.69 in
-
Weight1.41 lb
::specification::
Frequently Asked Questions
Can the RPS-400-27-SF be used for a higher-power 27V embedded computing or control platform?
Yes, if the platform needs constant 27V DC and the total draw remains within 9.3A. With 251.1W available, it suits 27V embedded or control assemblies that need more capacity than smaller 27V models in the same family.
Is this model appropriate for industrial instrumentation running from a 27V DC bus?
It is appropriate when the instrumentation requires a fixed 27V output and stays within 251.1W and 9.3A. The 80-264VAC input range also makes it easier to use in systems exposed to different AC source standards.
Can I use the RPS-400-27-SF for medical equipment that needs a stable 27V supply?
Yes, for equipment that needs constant 27V DC and does not exceed 9.3A. The specifications list medical safety approval and extreme low leakage current, which are relevant for medical-device power design.
Is the RPS-400-27-SF suitable for outdoor cabinets or unsealed equipment bays?
Its operating temperature range is -30°C to +70°C, so the temperature envelope is wide. However, no IP rating is listed, so the specs do not support treating it as an outdoor- or weather-exposed power supply.
Does the larger size of the RPS-400-27-SF matter when checking fit in a chassis?
Yes, because this version measures 160.0 x 86.0 x 43.0 mm and weighs 0.64 kg. That makes mechanical fit a separate check from electrical fit, even though the output remains 27V, 9.3A, and 251.1W.
