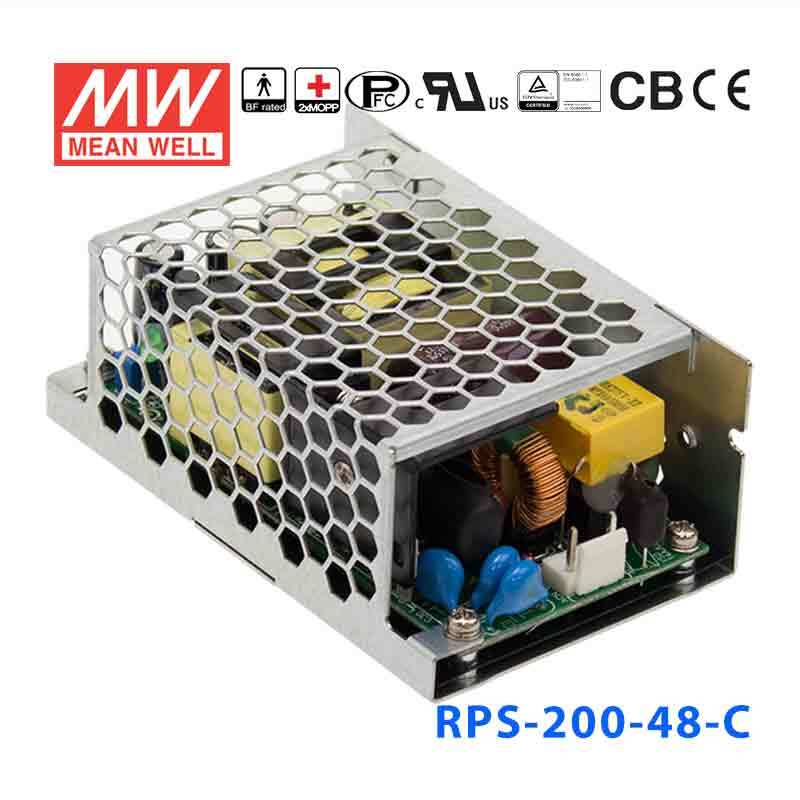

Mean Well RPS-200-48-C Green Power Supply W 48V 3A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-200-48-C Green Power Supply W 48V 3A - Medical Power ...
The RPS-200-48 is a 200W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Safety approvals: IEC60601-1, TUV EN60601-1, CAN/CSA-C22.2 No. 60601-1:14 - Edition 3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating144 Watt
-
Output Voltage48 Volt
-
Rated Current3 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4.07 in
-
Width2.44 in
-
Height1.57 in
-
Weight0.66 lb
::specification::
Frequently Asked Questions
Can I use the RPS-200-48-C for a 48V embedded computer or edge device?
Yes, if the equipment needs constant 48V DC and the total load stays within 3A and 144W. Its wide 80-264VAC input also makes it practical for systems deployed across different AC input conditions.
Is the RPS-200-48-C a fit for 48V access control or building automation hardware?
It can be used for 48V building or control hardware that requires constant-voltage output and does not exceed 3A. The key selection points are the 48V output, 144W power ceiling, and the physical size of 103.4 x 62.0 x 40.0 mm.
Can this model power a 48V medical monitoring or diagnostic device?
Yes, this model is specified as medical safety approved and includes extreme low leakage current, which is relevant for medical electronics using a 48V rail. The connected device still needs to stay within the unit's 3A and 144W output limits.
What is the difference between the RPS-200-48-C and the other RPS-200 voltage options?
The RPS-200 family includes 12V at 11.7A and 140.4W, 15V at 9.4A and 141W, 24V at 5.9A and 141.6W, 27V at 5.3A and 143.1W, and 48V at 3A and 144W. The RPS-200-48-C matches the RPS-200-48 electrically at 48V, 3A, and 144W, with this version listed at 103.4 x 62.0 x 40.0 mm and 0.3 kg.
Is the RPS-200-48-C rated for outdoor use?
The published operating range is -30°C to +70°C, so the temperature specification supports demanding indoor equipment environments. No IP rating is listed in the provided specs, so outdoor exposure should not be assumed unless the end enclosure provides the needed protection.
