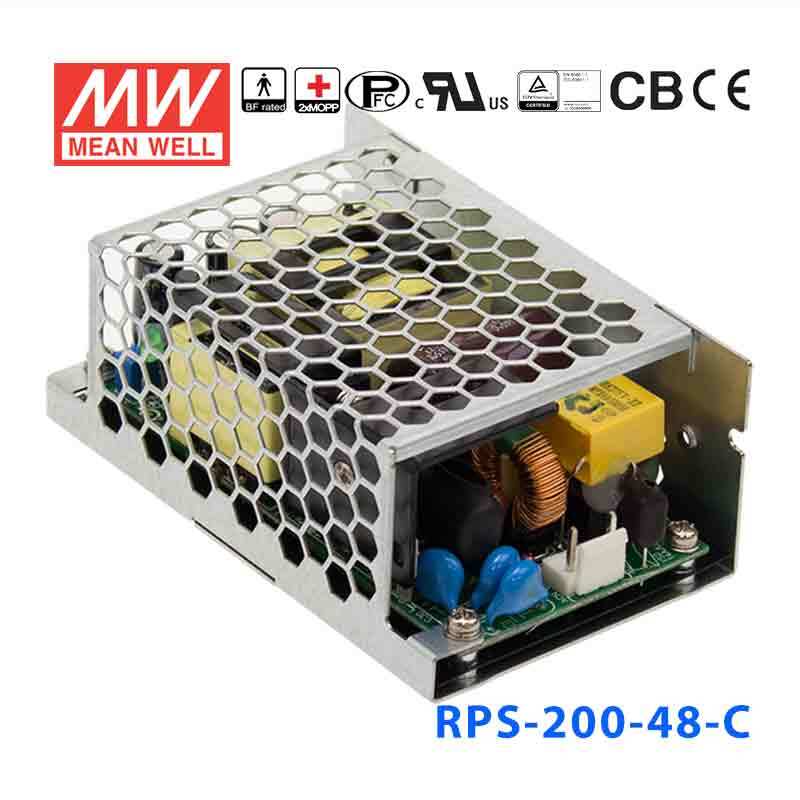

Mean Well RPS-200-48-C Green Power Supply W 48V 3A - Medical Power Supply
5" x 3" compact size, medical safety approved, extreme low leakage current
$58.69 USD
Unit price /
Unavailable
Shipping calculated at checkout.
Notify me when it's back in stock
|
Your order will be processed within 24 hours
Description
Description
Features
5"x3" compact size |
320W convection, 500W force air |
550W peak power (3 sec.)/td> |
Medical safety approved (2xMOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1 |
MEMI for both Class I & Class II configuration |
-30~+70°C wide range operating temperature |
No load power consumption under 0.5W by PS-ON control |
High efficiency up to 94% |
Protections: Short circuit / Overload / Over voltage / Over Temp. |
5Vdc standby output, 12Vdc fan supply, Power Good, Power Fail, and remote sense |
Operating altitude up to 4000 meters (Note.5) |
LED indicator for power on |
3 years warranty |
General Specification
AC input voltage range | 80 ~ 264VAC | 113 ~ 370VDC |
AC inrush current | COLD START 40A/115VAC 80A/230VAC |
DC adjustment range | ±10% rated output voltage |
Overload protection | 105%~135% hiccup mode, auto-recovery |
Over-voltage protection | CH1: 115%~135% shut off, re-power on to recovery |
Withstand voltage | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC |
Working temperature | -30~+70°C (refer to output derating curve) |
Leakage current | Earth leakage current <220 A/264VAC 50Hz, Touch current < 100 A/264VAC |
Safety standards | ANSI/AAMI ES60601-1, TUV EN60601-1 approved |
EMC standards | EN55011/EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3, EN60601-1-2, EN61000-6-2 (RPS(G)-160) |
Connection | 3+8+2(4)P/3.96mm pitch JST B3P / B8P-VH, B2B (B4B)-XH |
Setup, rise, hold up time | 1000ms, 30ms, 10ms at full load and 230VAC |
Dimension (LxWxH) | 127 x 76.2 x 41mm | 5 x 3 x 1.61 inch |
Specifications
Specifications
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating144 Watt
-
Output Voltage48 Volt
-
Rated Current3 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4.07 in
-
Width2.44 in
-
Height1.57 in
-
Weight0.66 lb
