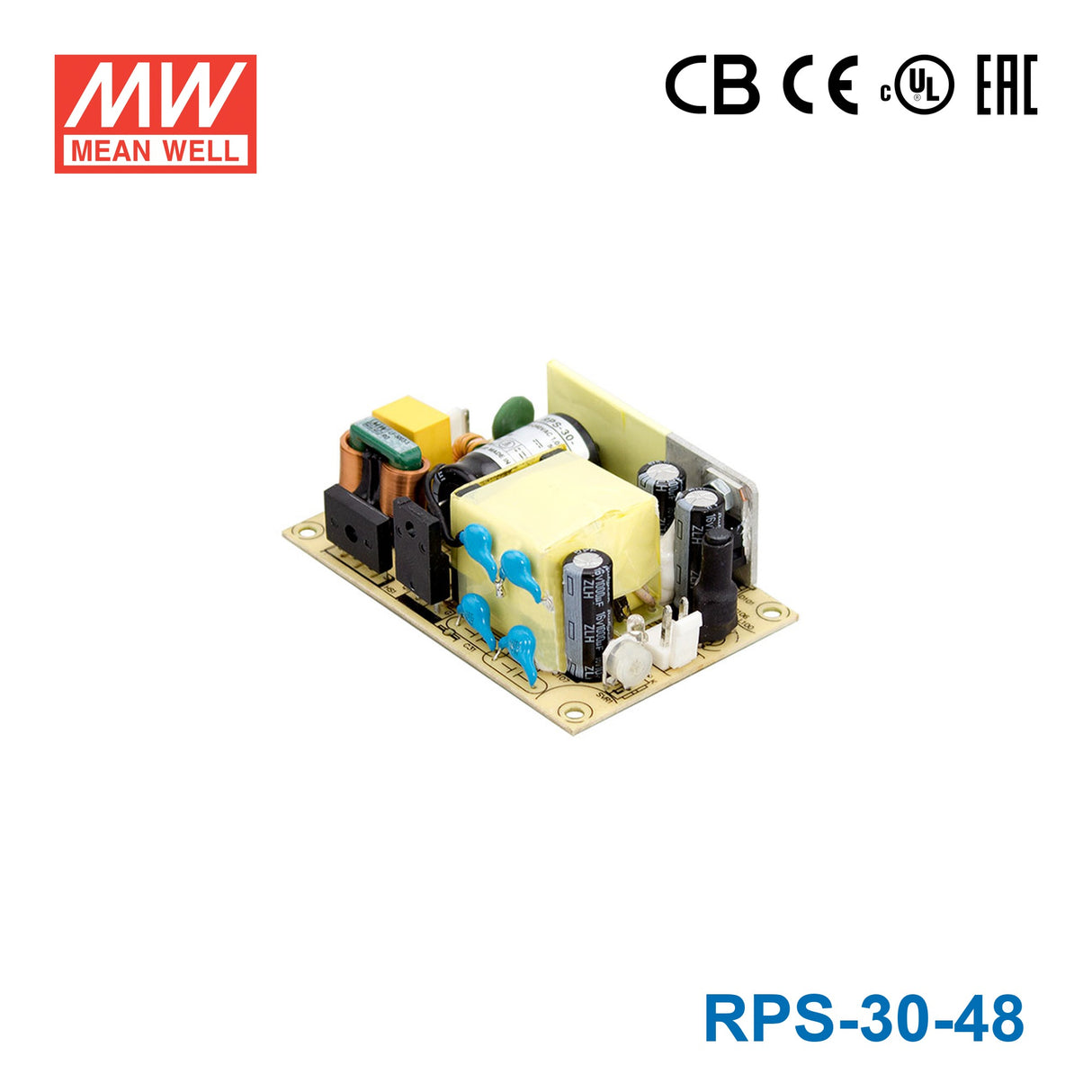

Mean Well RPS-30-48 Green Power Supply W 48V 0.625A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-30-48 Green Power Supply W 48V 0.625A - Medical Power...
The RPS-30 is a 30W Mean Well power converter (input range: 80~264VAC, operating temperature: -40~+85°C).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ Cooling by free air convection — no minimum load required
- ✓ Wide operating temperature: -40~+85°C
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: CANICSA-C22.2 No. 60601-1:14 - Edition 3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating30 Watt
-
Output Voltage48 Volt
-
Rated Current0.62 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3 in
-
Width2 in
-
Height0.94 in
-
Weight0.2 lb
::specification::
Frequently Asked Questions
Can I use the RPS-30-48 for a 48V PLC, relay, or industrial control circuit?
Yes, if the control device needs a constant 48V supply and draws no more than 0.62A or 30W. That makes it appropriate for low-current 48V industrial control loads rather than higher-current 48V systems.
Is this a good fit for 48V telecom or network equipment with light DC demand?
It can fit 48V telecom or network hardware that runs from a constant 48V input and stays within 0.62A. The available output is 30W, so it is intended for lighter 48V loads, not equipment that needs multi-amp 48V capacity.
Can the RPS-30-48 power a small embedded or instrumentation device that uses 48V DC?
Yes, for embedded, monitoring, or instrumentation hardware designed for 48V constant voltage and drawing up to 0.62A. The wide 80-264VAC input also makes it suitable where the AC source may vary across standard mains ranges.
Can I use this model where the equipment sees low or high ambient temperatures?
The specified operating temperature range is -30°C to +70°C, so the temperature range is broad. However, no IP rating is provided, so the specs do not define resistance to dust, rain, or hose-down exposure.
How does the RPS-30-48 compare with the other RPS-30 versions?
The RPS-30 family includes RPS-30-3.3 at 19.8W, 3.3V, 6A; RPS-30-5 at 30W, 5V, 6A; RPS-30-7.5 at 30W, 7.5V, 4A; RPS-30-12 at 30W, 12V, 2.5A; RPS-30-15 at 30W, 15V, 2A; and RPS-30-24 at 30W, 24V, 1.25A. The RPS-30-48 is the highest-voltage option in that set at 30W, 48V, and 0.62A.
