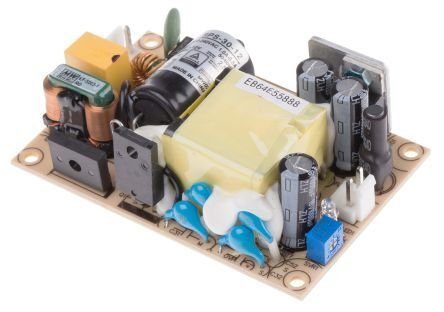

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well RPS-30-12 Green Power Supply 30W 12V 2.5A - Medical Power Supply

Name: Mean Well RPS-30-12 Green Power Supply 30W 12V 2.5A - Medical Power Supply
Brand: Mean Well
SKU: RPS-30-12
Price: 14.59 USD
Availability: InStock

3" x 2" compact sizemedical safety approvedno load power consumption < 0.1Wextremely low leakage current

SKU RPS-30-12

$14.59 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

RPS-30-12 is the 12V output model of this series: rated current 2.5A, rated power 30W, typical efficiency 88%.

RPS-30 is a 30W highly reliable green PCB type medical power supply with a high power density on the 3” by 2” footprint. It accepts 80~264VAC input and offers various output voltages between 3.3V and 48V. The working efficiency is up to 92% and the extremely low no load power consumption is down below 0.1W. RPS-30 is able to be used for ClassⅡ(no FG) system design. The extremely low leakage current is less than 80μA. In addition, it conforms to international medical regulations (2*MOPP) and EMC BS EN/EN55011, perfectly fitting all kinds of BF rated “patient contact” medical system equipment.a

Features

3"×2" compact size
Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
Suitable for BF application with appropriate system consideration
Cooling by free air convection
EMI class B for class Ⅱ configuration
No load power consumption<0.1W
Extremely low leakage current
Protections: Short circuit / Overload / Over voltage
Lifetime > 105K hours
Operating altitude up to 4000 meters
3 years warranty

Specifications

RPS-30-12Specifications from the official datasheet (2024-11-22 edition)

OUTPUT

DC VOLTAGE: 12V
RATED CURRENT: 2.5A
CURRENT RANGE: 0 ~ 2.75A
RATED POWER: 30W
PEAK LOAD(10sec.)^Note.2: 33W
RIPPLE & NOISE (max.)^Note.3: 100mVp-p
VOLTAGE ADJ.RANGE: 11.4~13.2V
VOLTAGE TOLERANCE: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 200ms, 30ms / 230VAC 200ms, 30ms / 115VAC at full load
HOLD UP TIME (Typ.): 30ms / 230VAC 16ms / 115VAC at full load

INPUT

VOLTAGE RANGE^Note.5: 80 ~ 264VAC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 88%
AC CURRENT (Typ.): 1A / 115VAC 0.5A / 230VAC
INRUSH CURRENT (Typ.): COLD STAR 30A/115VAC 60A/230VAC
LEAKAGE CURRENT(max.)^Note.6: Touch current< 80μA/264VAC

PROTECTION

OVERLOAD: 115 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 13.8~16.2V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03% / ℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
OPERATING ALTITUDE^Note.7: 4000 meters

SAFETY & EMC (Note. 8)

SAFETY STANDARDS: IEC 60601-1:2005+A1+A2, TUV BS EN/ EN 60601-1:2006+A1+A12+A2, ANSI/AAMI ES60601-1:2005+A2 CAN/CSA C22.2 No. 60601-1:2014+A2, EAC TP TC 004 approved; Design refer to BS EN/EN60335-1(by request)
ISOLATION LEVEL: Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE: I/P-O/P: 4KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: BS EN/EN55035, BS EN/EN60601-1-2

Parameter Standard Test Level

Conducted emission BS EN/EN55011 (CISPR11) Class B
Radiated emission BS EN/EN55011 (CISPR11) Class B
Harmonic current BS EN/EN61000-3-2 Class A
Voltage flicker BS EN/EN61000-3-3
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT bursts BS EN/EN61000-4-4 Level 3, 2KV
Surge susceptibility BS EN/EN61000-4-5 Level 4, 2KV/Line-Line
Conducted susceptibility BS EN/EN61000-4-6 Level 3, 10V
Magnetic field immunity BS EN/EN61000-4-8 Level 4, 30A/m
Voltage dip, interruption BS EN/EN61000-4-11 100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods

Parameter	Standard	Test Level
Conducted emission	BS EN/EN55011 (CISPR11)	Class B
Radiated emission	BS EN/EN55011 (CISPR11)	Class B
Harmonic current	BS EN/EN61000-3-2	Class A
Voltage flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT bursts	BS EN/EN61000-4-4	Level 3, 2KV
Surge susceptibility	BS EN/EN61000-4-5	Level 4, 2KV/Line-Line
Conducted susceptibility	BS EN/EN61000-4-6	Level 3, 10V
Magnetic field immunity	BS EN/EN61000-4-8	Level 4, 30A/m
Voltage dip, interruption	BS EN/EN61000-4-11	100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods

OTHERS

MTBF: 3550.0K hrs min. Telcordia SR-332 (Bellcore) ; 628.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION (L*W*H): 76.2*50.8*24mm or 3" * 2" *0.945" inch
PACKING: 0.09Kg; 120pcs/11.8Kg/0.94CUFT

Test conditions and notes8

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
6. Touch current was measured from primary input to DC output.
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

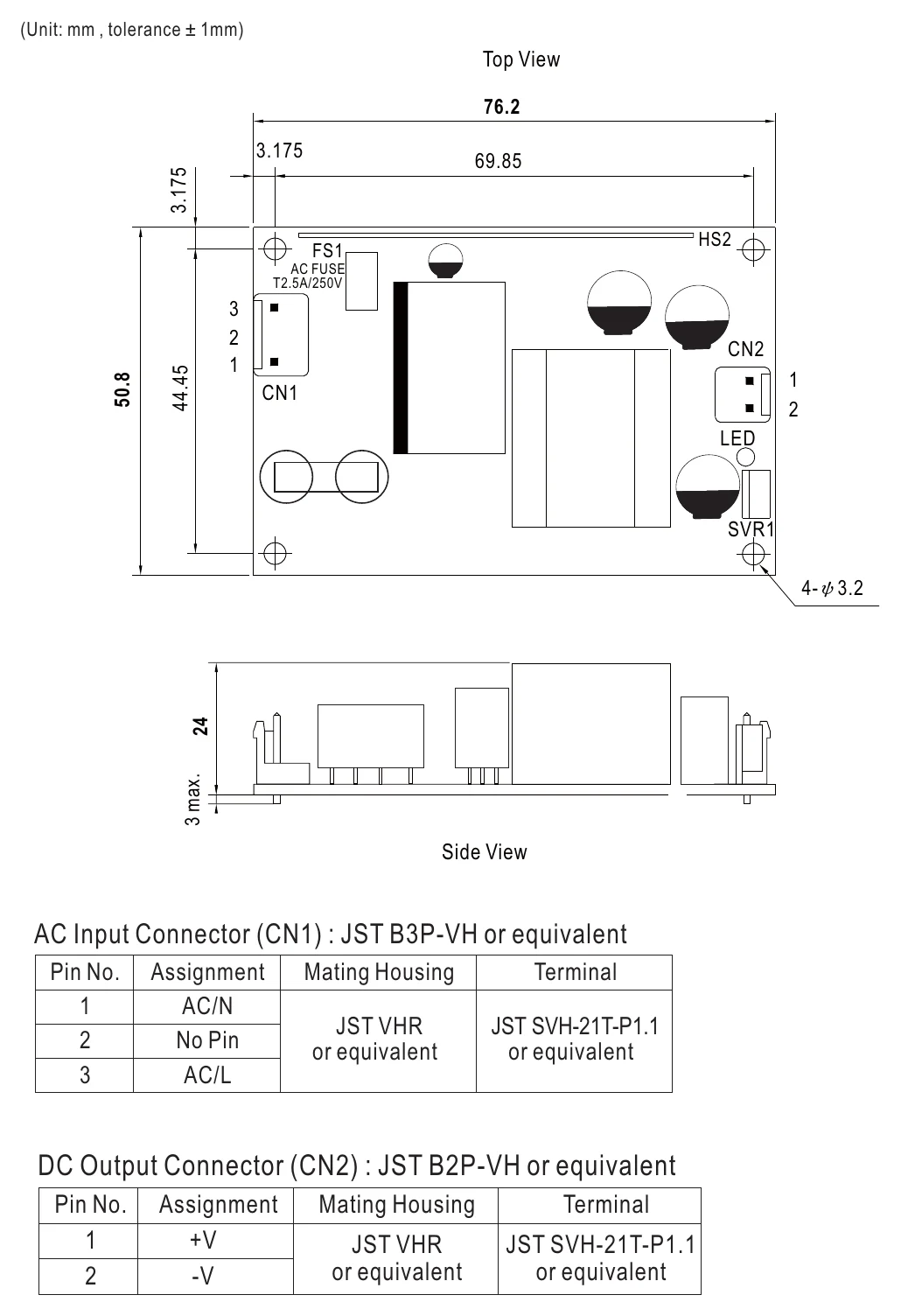

RPS-30-12 Mechanical Specification — Mechanical Specification

Typical applications

Oral irrigator
Hemodialysis machine
Medical computer monitors
Sleep apnea devices

Downloads

Certificates6

Mean Well E227340 UL Certificate PDF Download

Mean Well 0147476-EAC Certificate PDF Download

Mean Well RPS-30-TUV Certificate PDF Download

Mean Well RPS-30-ECM Certificate PDF Download

Mean Well RPS-30-CE-dec Certificate PDF Download

Mean Well RPS-30-UK-dec Certificate PDF Download

Test reports1

Mean Well RPS-30-12 Test Report PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the RPS-30-12 for a small 12V embedded system or controller?

Yes, it provides constant 12V output up to 2.5A with a total power rating of 30W, which suits compact embedded or controller loads within that range. Its 80-264VAC input also supports use across a wide AC input range.

Is the RPS-30-12 suitable for 12V sensors, relays, or interface modules in industrial equipment?

It can be a good fit for low-power 12V industrial electronics that need a regulated constant-voltage source and stay within 2.5A. The compact 76.2 x 50.8 x 24.0 mm size is useful where space is limited inside the host equipment.

Can this model be used in portable or compact medical devices?

Yes, it is described as medical safety approved and has extremely low leakage current, which is relevant for compact medical equipment needing 12V DC. The available output is limited to 30W at 12V and 2.5A.

How does the RPS-30-12 compare with the other RPS-30 versions?

In the RPS-30 group, the outputs are 3.3V at 6A and 19.8W, 5V at 6A and 30W, 7.5V at 4A and 30W, 12V at 2.5A and 30W, 15V at 2A and 30W, 24V at 1.25A and 30W, and 48V at 0.625A and 30W. The main difference is the DC voltage and current combination, while this version is the 12V, 2.5A model.

Can the RPS-30-12 be used outdoors or in cold industrial spaces?

Its operating temperature range is -30°C to +70°C, so the temperature spec covers both cold and hot equipment environments. No IP rating is listed in the provided specs, so it should be used in a protected enclosure rather than treated as an exposed outdoor power supply.
