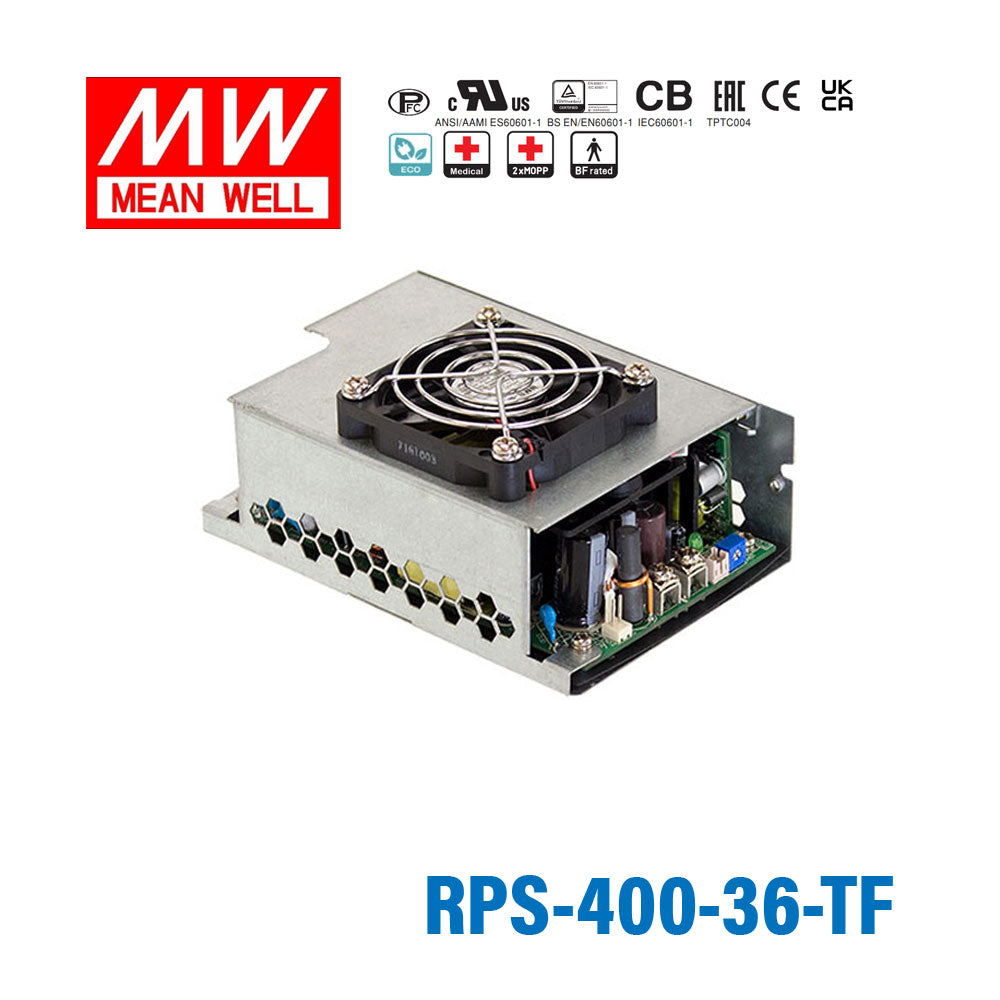

Mean Well RPS-400-36-TF Green Power Supply W 36V 7A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-400-36-TF Green Power Supply W 36V 7A - Medical Power...
The RPS-400-36 is a 400W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: IEC60601-1, TUV EN60601-1, EAC TP TC 004 , UL ANSI / AAMI ES60601-1 (3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating252 Watt
-
Output Voltage36 Volt
-
Rated Current7 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length5.12 in
-
Width3.39 in
-
Height2.62 in
-
Weight1.28 lb
::specification::
Frequently Asked Questions
Can the RPS-400-36-TF power a 36V automation controller or industrial electronics assembly?
Yes, it provides constant 36V output with up to 7A available current. That gives it a 252W capacity for 36V industrial electronics, automation controllers, and other fixed-voltage assemblies within that load range.
Is this 36V model suitable for medical OEM equipment?
It is specified as a medical power supply and includes medical safety approval with extreme low leakage current. For OEM medical equipment that requires 36V DC and up to 7A, its specs are consistent with that type of application.
Can I use the RPS-400-36-TF in a 36V embedded platform with limited footprint?
Its footprint is 130.0 x 86.0 mm, with a height of 66.5 mm, so it can suit compact embedded platforms where that form factor fits. Electrically, it supports a constant 36V rail up to 252W or 7A.
Would this power supply fit a 36V lab or diagnostics platform?
It can be used for laboratory or diagnostics equipment that needs a regulated 36V supply and stays within 7A output current. The wide 80-264VAC input also supports deployment in facilities with varying AC input standards.
How does the RPS-400-36-TF sit within the RPS 36V lineup?
The available 36V siblings shown range from the RPS-75-36 at 75.6W and 2.1A up to the RPS-500-36-SF and RPS-500-36-TF at 500.4W and 13.9A. The RPS-400-36, RPS-400-36-C, RPS-400-36-SF, and RPS-400-36-TF are grouped at 252W and 7A, with the RPS-500-36 at 320.4W and 8.9A and the RPS-500-36-C at 309.6W and 8.6A above them.
Can the RPS-400-36-TF be used in cold or hot operating areas?
The stated operating temperature range is -30°C to +70°C, so it is designed to handle both low and high indoor ambient conditions within that range. Because no IP rating is provided, the listed specs do not confirm outdoor or moisture-exposed use.
