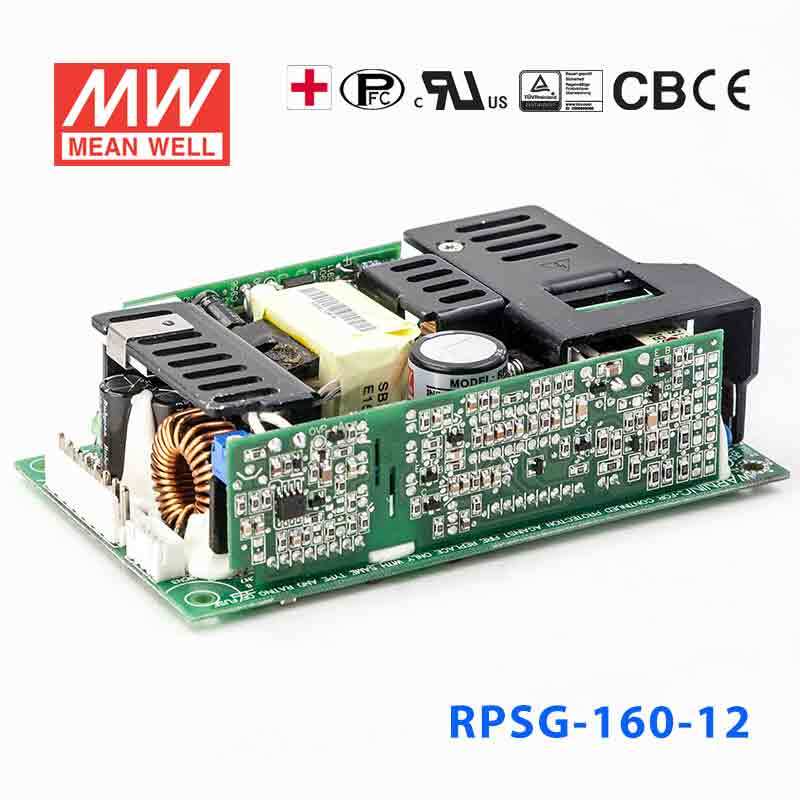

Mean Well RPSG-160-12 Green Power Supply W 12V 9.1A - Medical Power...
The RPSG-160 is a 160W Mean Well power converter (input range: 6~264VAC).
Key Features
- ✓ Input voltage range: 6~264VAC
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: TUV EN60601-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating112.2 Watt
-
Output Voltage12 Volt
-
Rated Current9.1 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length5 in
-
Width3 in
-
Height1.36 in
-
Weight0.71 lb
::specification::
Frequently Asked Questions
Can I use the RPSG-160-12 for 12V industrial control hardware?
Yes, if the equipment requires constant 12V DC and the load stays within 9.1A and 112.2W. It can fit industrial control panels, automation devices, and embedded systems built around a 12V bus.
Is the RPSG-160-12 suitable for 12V medical equipment?
It can be used with 12V medical equipment that needs constant voltage and draws no more than 9.1A or 112.2W. The product is listed as a medical power supply, which can be important for medical-system designs.
Can this model power a 12V HMI, display, or embedded computing assembly?
It can support 12V HMI, display, and embedded assemblies as long as the total requirement does not exceed 9.1A and 112.2W. That gives more current capacity than small 12V board-level supplies for multi-board or peripheral-heavy builds.
Is the RPSG-160-12 designed for outdoor conditions?
The stated operating temperature is -20°C to +70°C, which suits a wide range of indoor equipment environments. No IP rating is provided, so it should be treated as a power supply for protected indoor enclosures rather than exposed outdoor use.
How does the RPSG-160-12 compare with the other RPSG-160 models?
The RPSG-160 family includes RPSG-160-5 at 103W and 5V 20A, RPSG-160-12 at 112.2W and 12V 9.1A, RPSG-160-15 at 112.5W and 15V 7.3A, RPSG-160-24 at 113.4W and 24V 4.6A, and RPSG-160-48 at 113.4W and 48V 2.3A. The core difference is the output voltage and current available from each version.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other RPSG-160 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well RPSG-160-5 Green Power Supply W 5V 20A - Medical Power Supply | 103W | 5V | 20A | Indoor | $57.74 | View |
| Mean Well RPSG-160-48 Green Power Supply W 48V 2.3A - Medical Power Supply | 113.4W | 48V | 2.3A | Indoor | $57.74 | View |
| Mean Well RPSG-160-24 Green Power Supply W 24V 4.6A - Medical Power Supply | 113.4W | 24V | 4.6A | Indoor | $57.74 | View |
| Mean Well RPSG-160-15 Green Power Supply W 15V 7.3A - Medical Power Supply | 112.5W | 15V | 7.3A | Indoor | $57.74 | View |
