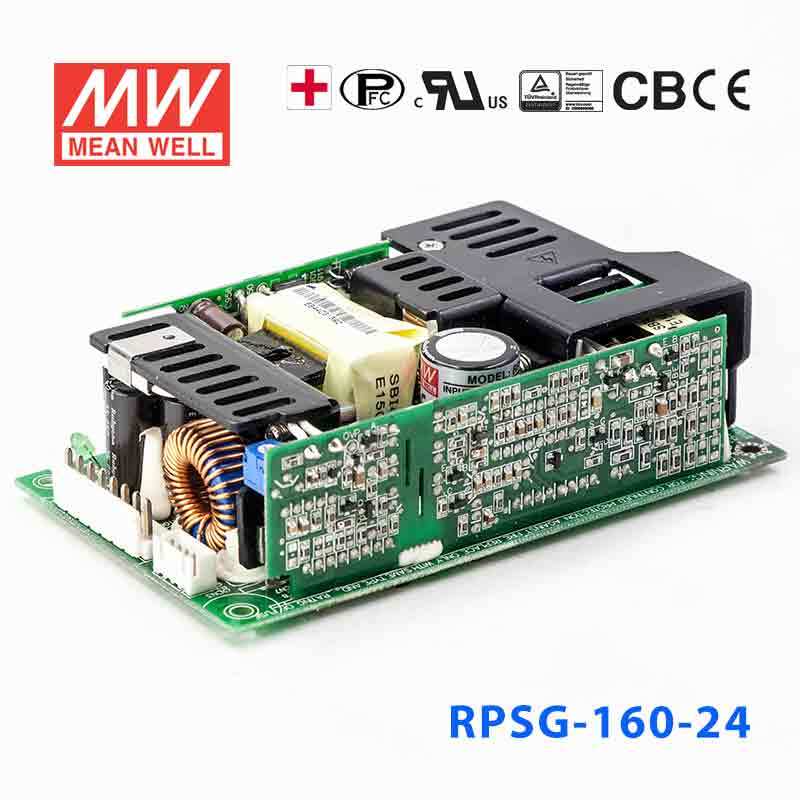

Mean Well RPSG-160-24 Green Power Supply W 24V 4.6A - Medical Power...
The RPSG-160 is a 160W Mean Well power converter (input range: 6~264VAC).
Key Features
- ✓ Input voltage range: 6~264VAC
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: TUV EN60601-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating113.4 Watt
-
Output Voltage24 Volt
-
Rated Current4.6 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length5 in
-
Width3 in
-
Height1.36 in
-
Weight0.71 lb
::specification::
Frequently Asked Questions
Can I use the RPSG-160-24 for 24V PLC, relay, or industrial control systems?
Yes, if the system requires constant 24V DC and draws no more than 4.6A or 113.4W. That makes it a fit for many 24V industrial control and automation loads within that power range.
Is the RPSG-160-24 suitable for 24V medical equipment or lab devices?
It can support 24V medical or laboratory equipment that needs constant voltage and stays within 4.6A and 113.4W. The product is identified as a medical power supply, which can matter in medical equipment selection.
Can this model power 24V embedded or machine-interface hardware?
It can fit 24V embedded systems, operator interfaces, and machine electronics when the total load remains at or below 4.6A and 113.4W. It is intended for constant voltage applications rather than loads that require a different output voltage.
Is the RPSG-160-24 okay for outdoor or unprotected locations?
Its operating temperature range is -20°C to +70°C, which supports use in a wide range of indoor equipment conditions. No IP rating is listed, so it is better suited to protected indoor enclosures than to exposed outdoor environments.
How does the RPSG-160-24 compare with the rest of the RPSG-160 series?
The available models are RPSG-160-5 at 103W and 5V 20A, RPSG-160-12 at 112.2W and 12V 9.1A, RPSG-160-15 at 112.5W and 15V 7.3A, RPSG-160-24 at 113.4W and 24V 4.6A, and RPSG-160-48 at 113.4W and 48V 2.3A. The main distinction between them is the DC output level and corresponding current rating.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other RPSG-160 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well RPSG-160-5 Green Power Supply W 5V 20A - Medical Power Supply | 103W | 5V | 20A | Indoor | $57.74 | View |
| Mean Well RPSG-160-48 Green Power Supply W 48V 2.3A - Medical Power Supply | 113.4W | 48V | 2.3A | Indoor | $57.74 | View |
| Mean Well RPSG-160-15 Green Power Supply W 15V 7.3A - Medical Power Supply | 112.5W | 15V | 7.3A | Indoor | $57.74 | View |
| Mean Well RPSG-160-12 Green Power Supply W 12V 9.1A - Medical Power Supply | 112.2W | 12V | 9.1A | Indoor | $57.74 | View |
