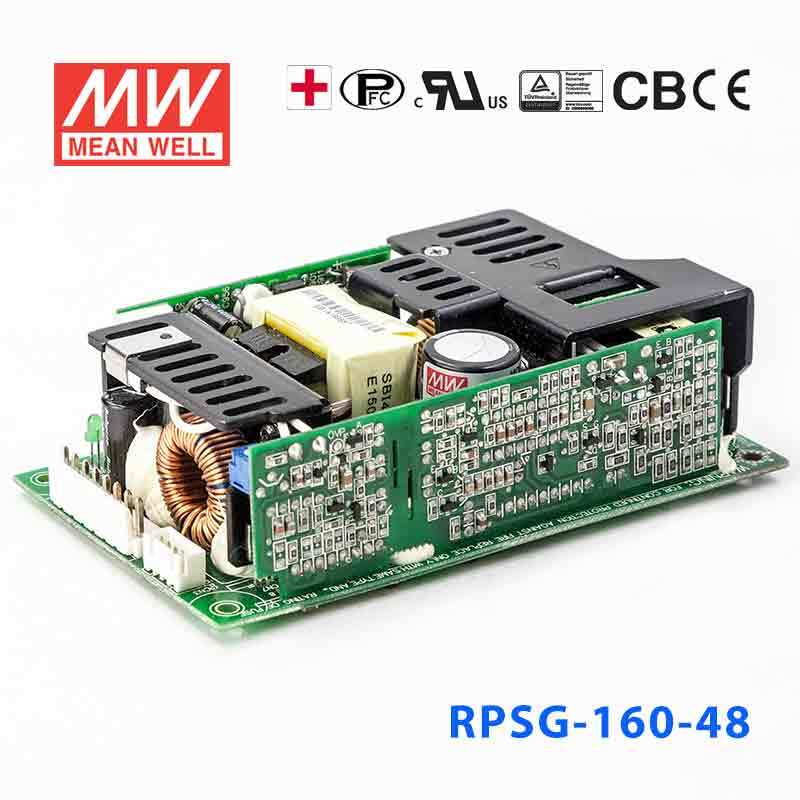

Mean Well RPSG-160-48 Green Power Supply W 48V 2.3A - Medical Power...
The RPSG-160 is a 160W Mean Well power converter (input range: 6~264VAC).
Key Features
- ✓ Input voltage range: 6~264VAC
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: TUV EN60601-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating113.4 Watt
-
Output Voltage48 Volt
-
Rated Current2.3 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length5 in
-
Width3 in
-
Height1.36 in
-
Weight0.71 lb
::specification::
Frequently Asked Questions
Can I use the RPSG-160-48 for a 48V industrial controller or PLC-related device?
This model is a constant voltage 48V power supply with up to 2.3A output. It is generally suited to 48V industrial or automation equipment that requires a regulated 48V supply and stays within the 113.4W power rating.
Is the RPSG-160-48 suitable for 48V embedded or medical electronic systems?
The unit provides a constant 48V output and is identified as a medical power supply. Buyers evaluating embedded or medical equipment should confirm the load stays within 2.3A and 113.4W and that the listed CB, CE, cUL, EAC, and c_shide approvals match the end application.
Can this 48V power supply be used in industrial monitoring or communication equipment?
It can fit 48V industrial monitoring or communication hardware that needs a constant voltage source rather than a current-regulated supply. The available output is 48V at 2.3A, with a total power limit of 113.4W.
Is the RPSG-160-48 intended for indoor or outdoor use?
The listed operating temperature is -20°C to +70°C, so the temperature range is broad for indoor equipment environments. No IP rating is provided in the specs, so the product page does not establish outdoor or washdown suitability from enclosure protection data.
How does the RPSG-160-48 compare with the other RPSG-160 models?
Within the RPSG-160 family, the listed siblings are 5V 20A at 103W, 12V 9.1A at 112.2W, 15V 7.3A at 112.5W, 24V 4.6A at 113.4W, and this 48V 2.3A version at 113.4W. All are shown in the same series, while the output voltage, output current, and wattage vary by model.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other RPSG-160 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well RPSG-160-5 Green Power Supply W 5V 20A - Medical Power Supply | 103W | 5V | 20A | Indoor | $57.74 | View |
| Mean Well RPSG-160-24 Green Power Supply W 24V 4.6A - Medical Power Supply | 113.4W | 24V | 4.6A | Indoor | $57.74 | View |
| Mean Well RPSG-160-15 Green Power Supply W 15V 7.3A - Medical Power Supply | 112.5W | 15V | 7.3A | Indoor | $57.74 | View |
| Mean Well RPSG-160-12 Green Power Supply W 12V 9.1A - Medical Power Supply | 112.2W | 12V | 9.1A | Indoor | $57.74 | View |
