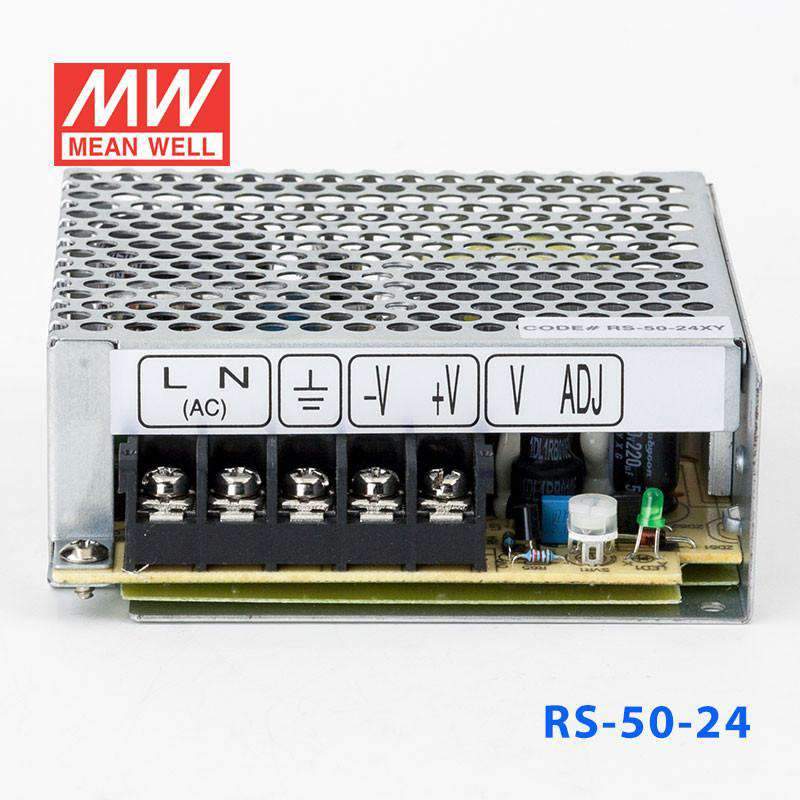

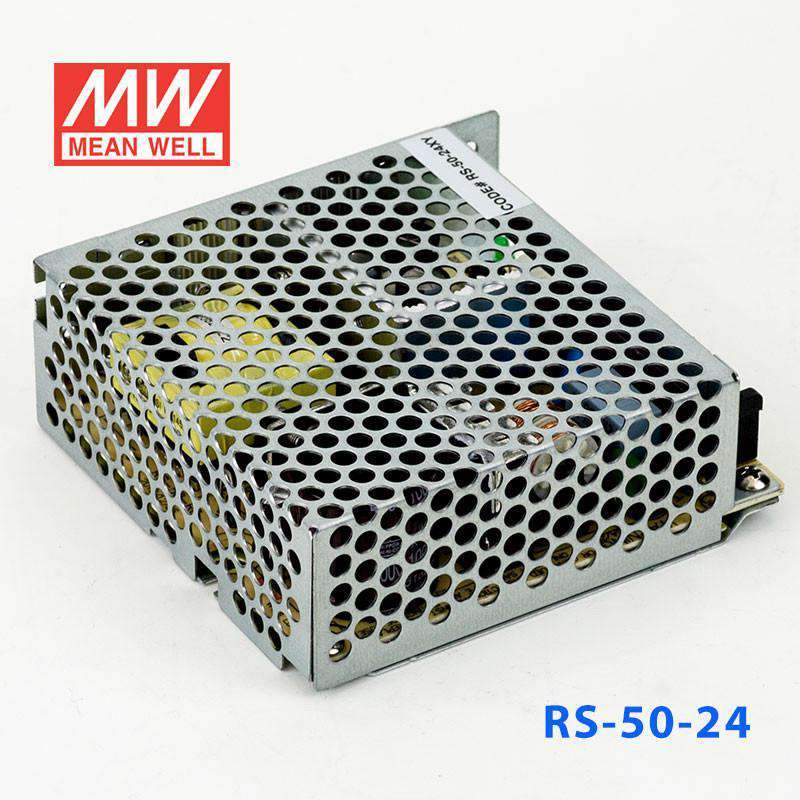

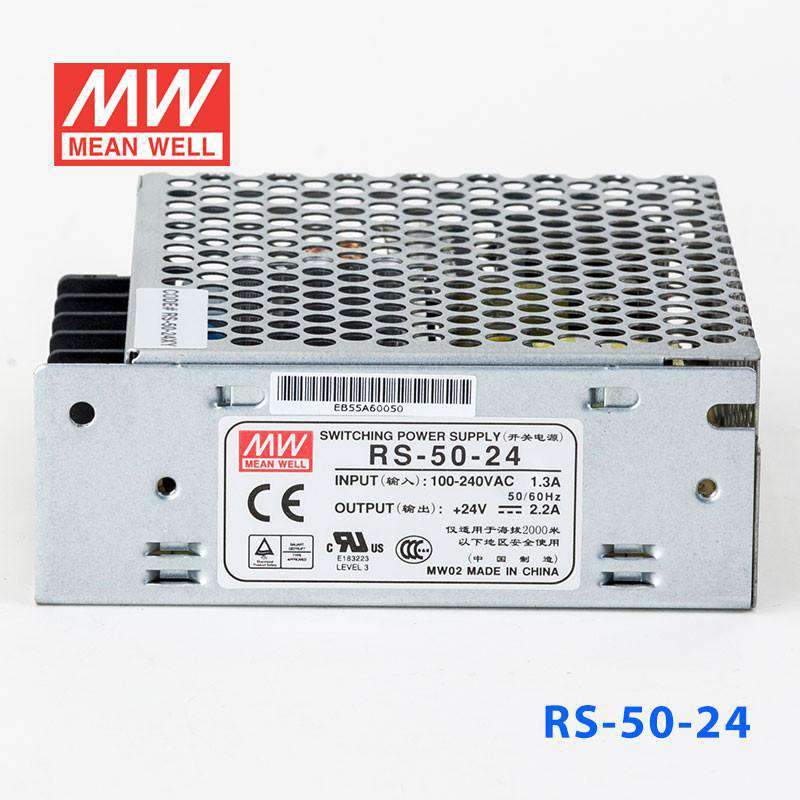

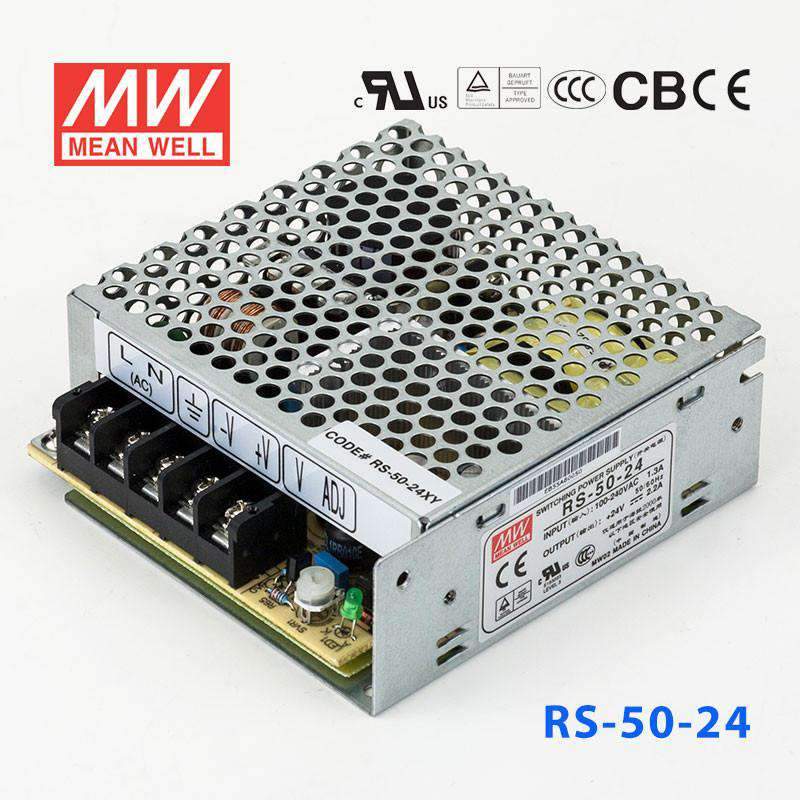

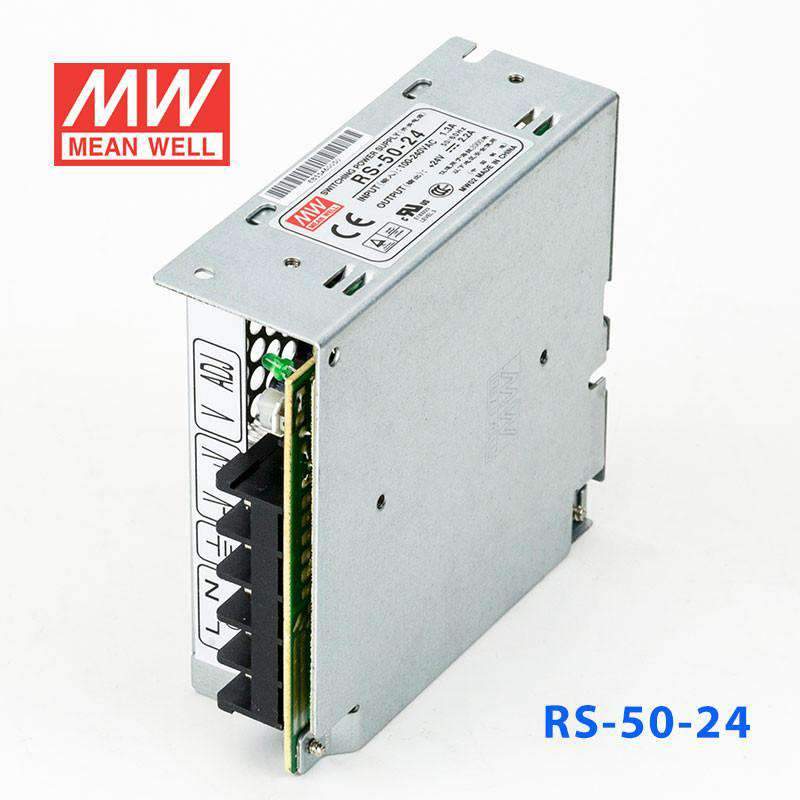

Mean Well RS-50-24 Power Supply 50W 24V
No load power consumption <0.2W for 35W/50W; <0.3W for 75W/100WUniversal AC input / Full rangeWithstand 300VAC surge input for 5 secondsUltra compact and 1U low profileWithstand 5G vibration testHigh operating temperature up to 70oCProtections: Short circuit / Overload / Over voltageCooling by free air convectionCompliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliancesOperating altitude up to 5000 metersHigh efficiency, long life and high reliabilityLED indicator for power onLow cost3 years warranty
Key Features
- ✓85~264VAC; 120~370VDC
- ✓Cold start, 45A at 230VAC
- ✓±10% by potentiometer
- ✓110%~150%
- ✓Type Hiccup mode, auto-recovery
- ✓115%~135% rated output voltage
- ✓Shut down o/p voltage, re-power on to recover
- ✓3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.25kVAC, 1 minute
- ✓-30~+70°C (refer to output derating curve)
- ✓UL60950-1, IEC/EN60950-1, IEC/EN61558-1, EN61558-2-16, IEC/EN60335-1, CCC GB4943 approved
- ✓EN55022 class B, EN55014, EN61000-3-2, 3, EN61000-4,2,3,4,5,6,8,11, GB9254
- ✓5P/9.5mm pitch terminal block
- ✓99x 82x 30
-
BrandMean Well
-
SeriesRS Series
-
Power Rating52.8 Watt
-
Output Voltage24 Volt
-
Rated Current2.2 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length3.9 in
-
Width3.82 in
-
Height1.42 in
-
Weight0.9 lb
::specification::
Frequently Asked Questions
Can I use the RS-50-24 for 24V PLC I/O, sensors, or compact automation loads?
Yes, if the connected 24V DC load does not exceed 2.2A and the total power stays within 52.8W. That makes it suitable for many low-power industrial control devices that are designed for a constant 24V input.
Is the RS-50-24 a good fit for 24V industrial communication or control electronics?
It can be used where the equipment requires constant 24V output and stays within the supply's 2.2A and 52.8W ratings. This is typically the right class of supply for compact 24V control electronics rather than higher-draw 24V loads.
Can this 24V power supply support small machine or panel-mounted accessories?
It can support 24V accessories that are specified for constant-voltage operation and remain at or below 2.2A. The 52.8W output makes it better suited to modest 24V panel devices than to larger 24V equipment with heavier current demand.
How does the RS-50-24 compare with other 24V models in the RS series?
The listed 24V RS models are RS-15-24 at 15W and 0.62A, RS-25-24 at 26.4W and 1.1A, RS-35-24 at 35W and 1.5A, RS-50-24 at 52.8W and 2.2A, RS-75-24 at 76.8W and 3.2A, RS-100-24 at 108W and 4.5A, and RS-150-24 at 156W and 6.5A. The RS-50-24 is a mid-range 24V option between the 35W and 76.8W models.
Can the RS-50-24 handle industrial temperature swings, and is it outdoor-rated?
The operating temperature range is -25°C to +70°C, and the product is specified to withstand 5G vibration. Because no IP rating is provided, the published specifications do not establish outdoor exposure resistance, so it is better treated as a protected-environment power supply.
