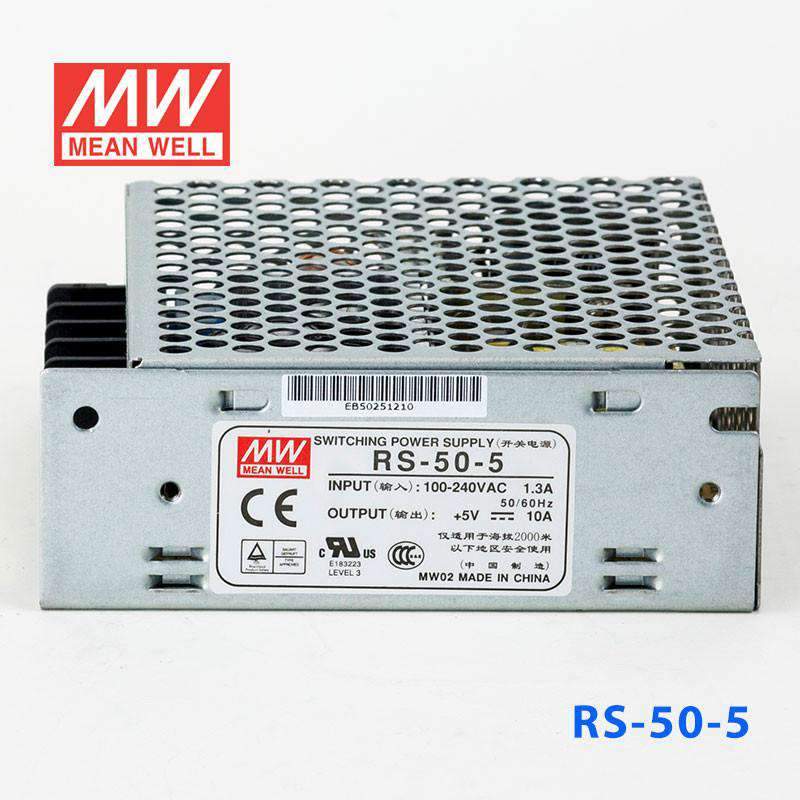

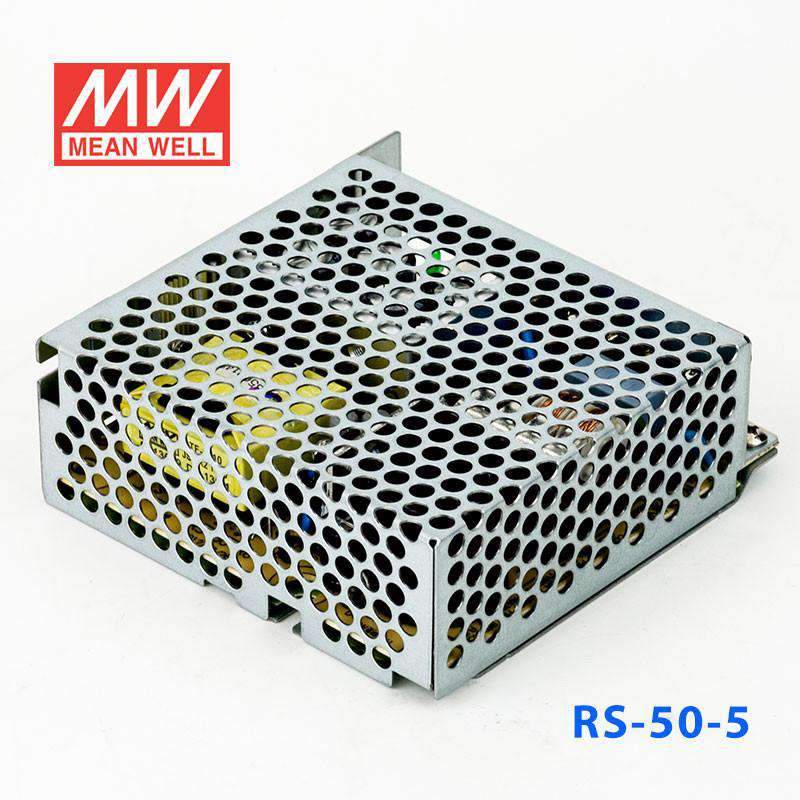

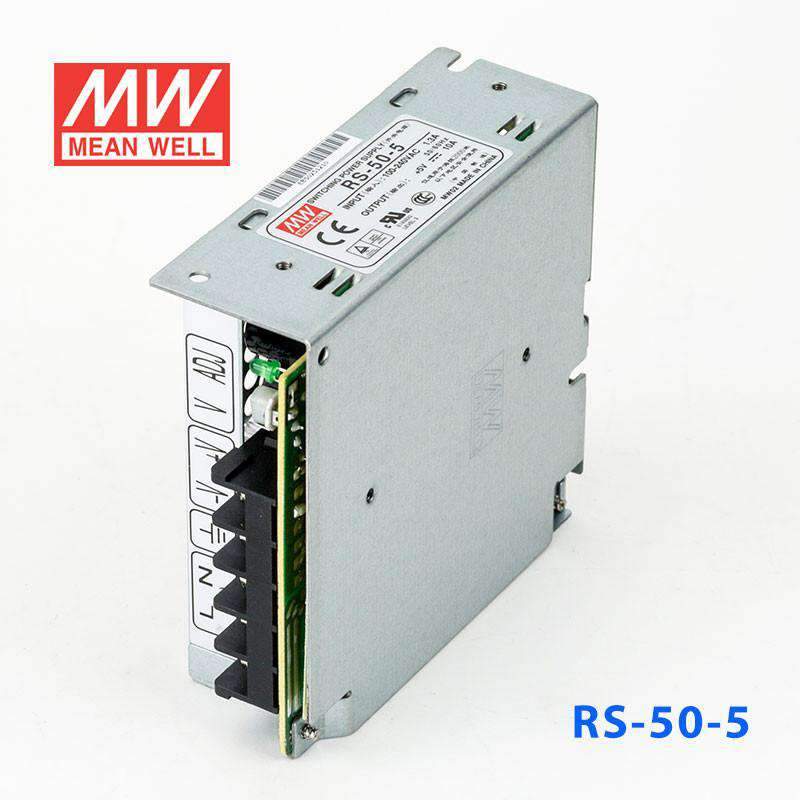

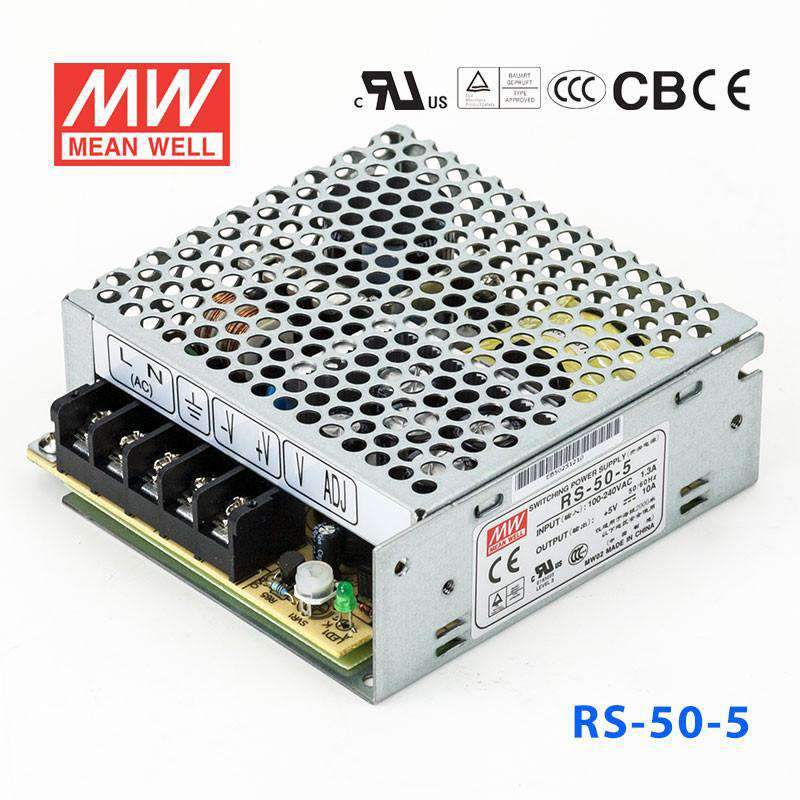

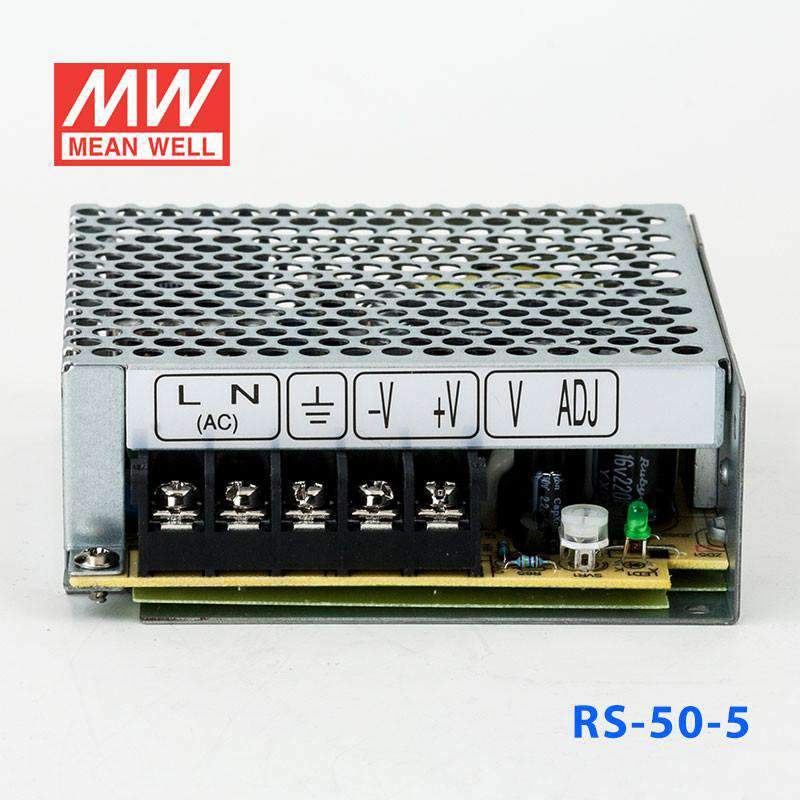

Mean Well RS-50-5 Power Supply 50W 5V 10A
The RS-50 is a 50W Mean Well power supply (input: 88~264VAC, operating temperature: -25~+70°C).
Key Features
- ✓ Input voltage: 88~264VAC
- ✓ Output voltage (max): 5V
- ✓ Rated output current: 10A
- ✓ Operating temperature: -25~+70°C
- ✓ Safety certifications: CB, CCC, CE, EAC, TÜV, UL
- ✓ 3 year warranty
-
BrandMean Well
-
SeriesRS Series
-
Power Rating50 Watt
-
Output Voltage5 Volt
-
Rated Current10 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length3.9 in
-
Width3.82 in
-
Height1.42 in
-
Weight0.9 lb
::specification::
Frequently Asked Questions
Can I use the RS-50-5 for a 5V industrial controller or logic board?
Yes, if the equipment requires 5V constant voltage and draws no more than 10A or 50W. That makes it suitable for many 5V control and logic applications in industrial or embedded systems.
Is the RS-50-5 suitable for powering a 5V embedded computer or development platform?
It can be a fit for 5V embedded hardware when the combined load stays within 10A and 50W. The wide 88-264VAC input also supports use in systems that need broad AC input compatibility.
Can this model power multiple 5V peripherals in one enclosure?
Yes, as long as the total 5V load remains at or below 10A and 50W. Its constant-voltage output makes it appropriate for grouped 5V electronics that share the same power requirement.
Would the RS-50-5 work in an industrial cabinet with vibration and limited space?
It is designed for 5G vibration and has a compact 99.0 x 97.0 x 36.0 mm form factor. That combination can be useful in tighter control cabinets where a 5V, 10A supply is needed.
Can the RS-50-5 be used outdoors or in high-temperature environments?
The specified operating range is -25C to +70C, so it supports a broad temperature window. No IP rating is provided here, so the specs do not establish outdoor or washdown suitability.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other RS-50 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well RS-50-12 Power Supply 50W 12V 4.2A | 50.4W | 12V | 4.2A | Indoor | $16.87 | View |
| Mean Well RS-50-48 Power Supply 50W 48V 1.1A | 52.8W | 48V | 1.1A | Indoor | $16.86 | View |
| Mean Well RS-50-3.3 Power Supply 50W 3.3V 10A | 33W | 3.3V | 10A | Indoor | $16.86 | View |
| Mean Well RS-50-24 Power Supply 50W 24V 2.2A | 52.8W | 24V | 2.2A | Indoor | $16.87 | View |
| Mean Well RS-50-15 Power Supply 50W 15V 3.4A | 51W | 15V | 3.4A | Indoor | $16.87 | View |
