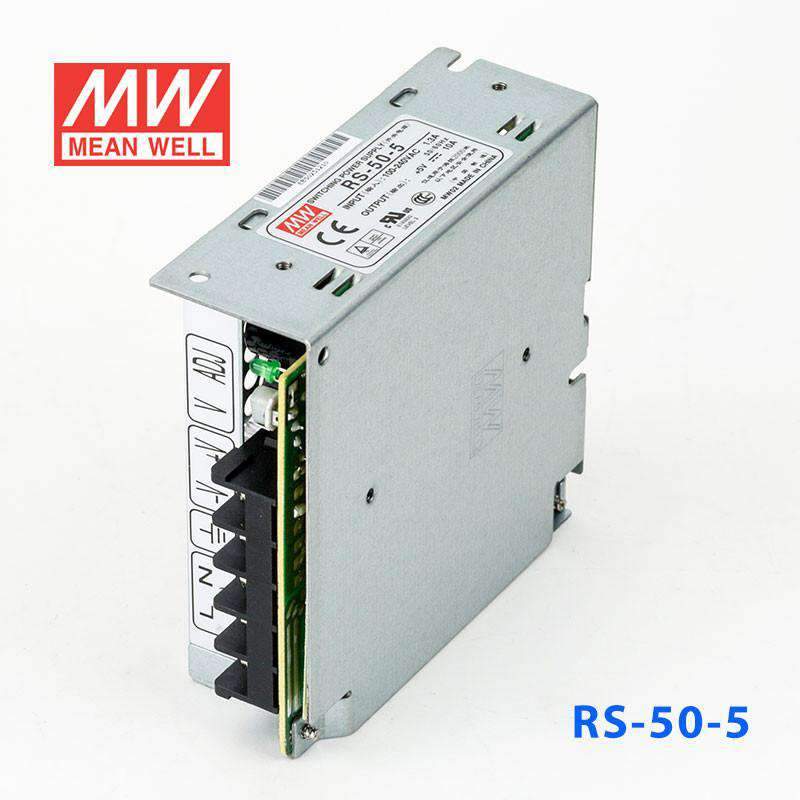

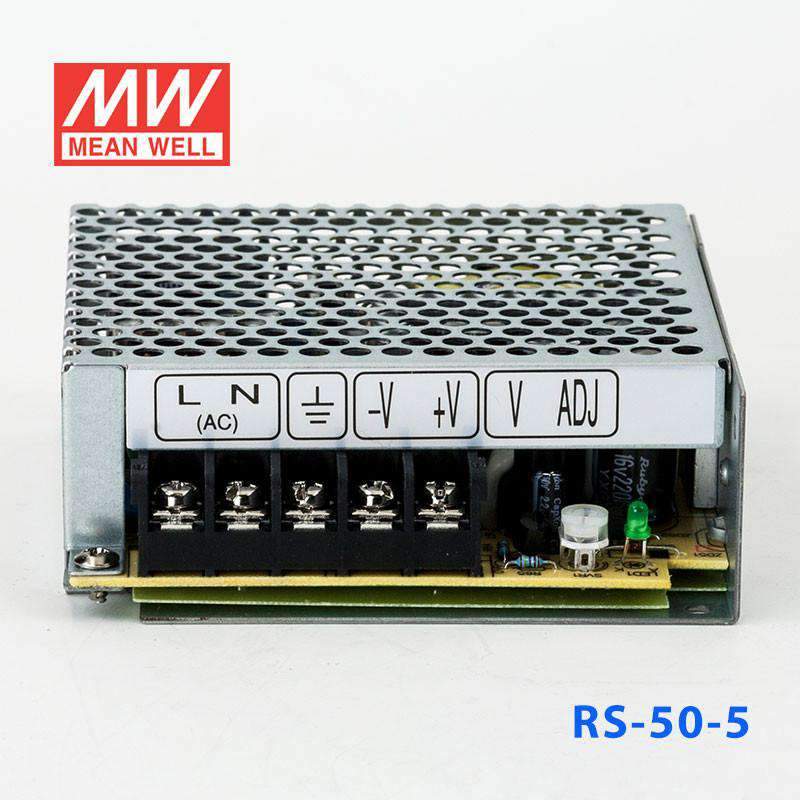

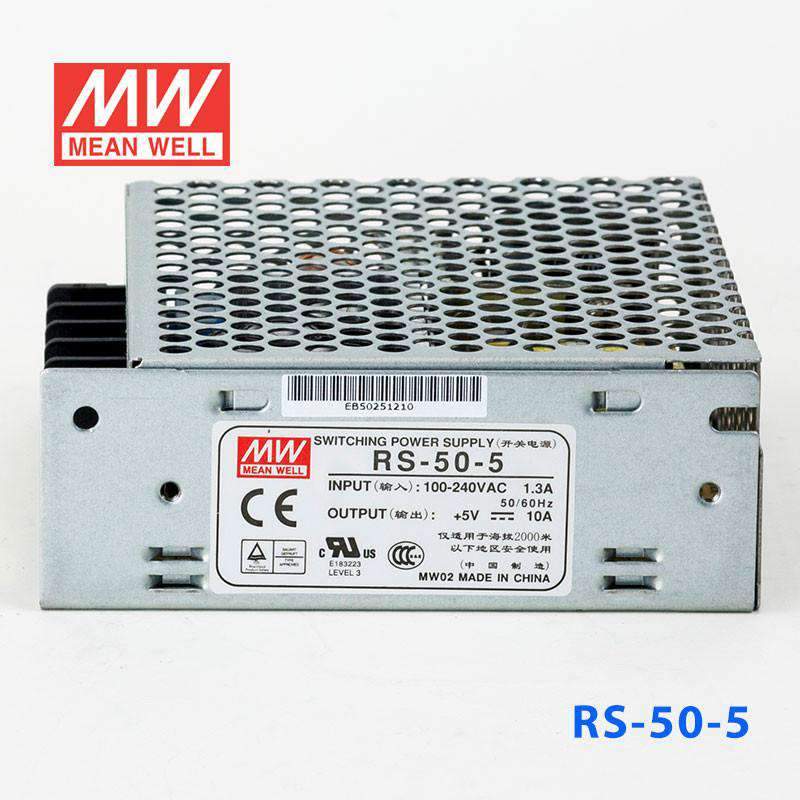

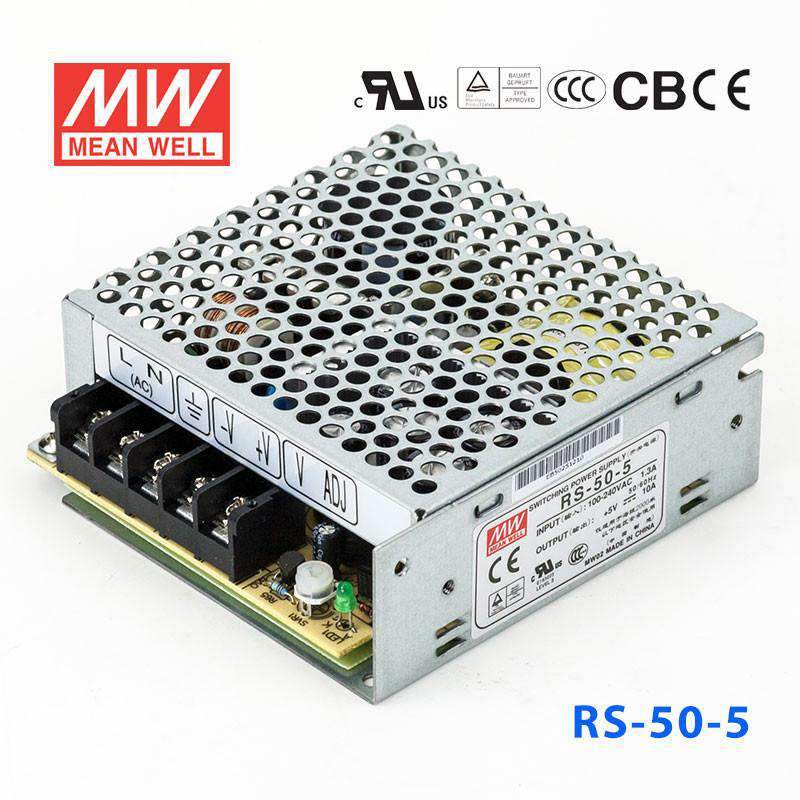

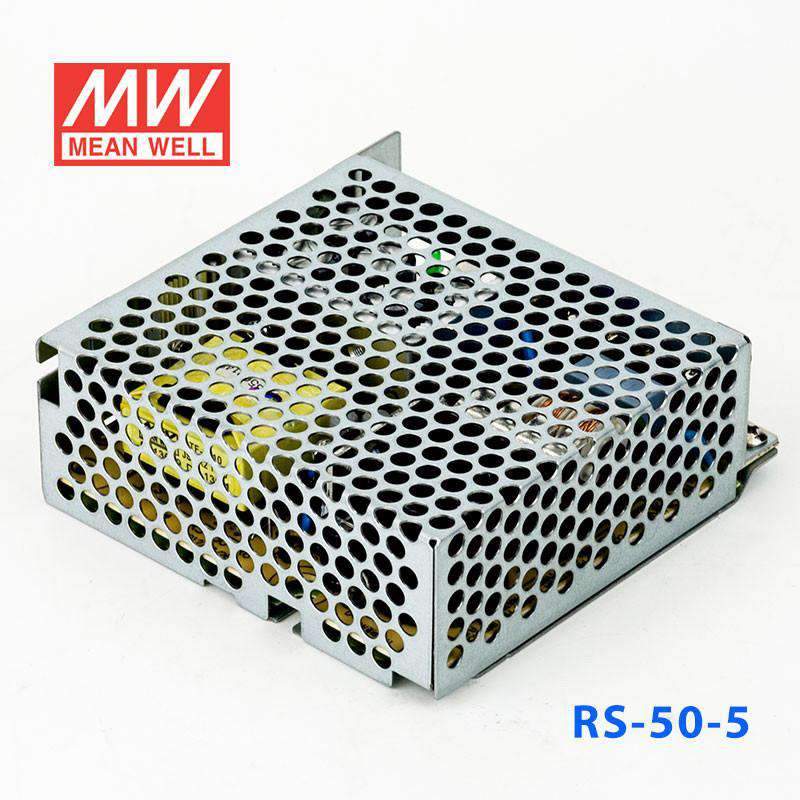

Mean Well RS-50-5 Power Supply 50W 5V
No load power consumption <0.2W for 35W/50W; <0.3W for 75W/100WUniversal AC input / Full rangeWithstand 300VAC surge input for 5 secondsUltra compact and 1U low profileWithstand 5G vibration testHigh operating temperature up to 70oCProtections: Short circuit / Overload / Over voltageCooling by free air convectionCompliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliancesOperating altitude up to 5000 metersHigh efficiency, long life and high reliabilityLED indicator for power onLow cost3 years warranty
Key Features
- ✓85~264VAC; 120~370VDC
- ✓Cold start, 45A at 230VAC
- ✓±10% by potentiometer
- ✓110%~150%
- ✓Type Hiccup mode, auto-recovery
- ✓115%~135% rated output voltage
- ✓Shut down o/p voltage, re-power on to recover
- ✓3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.25kVAC, 1 minute
- ✓-30~+70°C (refer to output derating curve)
- ✓UL60950-1, IEC/EN60950-1, IEC/EN61558-1, EN61558-2-16, IEC/EN60335-1, CCC GB4943 approved
- ✓EN55022 class B, EN55014, EN61000-3-2, 3, EN61000-4,2,3,4,5,6,8,11, GB9254
- ✓5P/9.5mm pitch terminal block
- ✓99x 82x 30
-
BrandMean Well
-
SeriesRS Series
-
Power Rating50 Watt
-
Output Voltage5 Volt
-
Rated Current10 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length3.9 in
-
Width3.82 in
-
Height1.42 in
-
Weight0.9 lb
::specification::
Frequently Asked Questions
Can I use the RS-50-5 for a 5V industrial controller or logic board?
Yes, if the equipment requires 5V constant voltage and draws no more than 10A or 50W. That makes it suitable for many 5V control and logic applications in industrial or embedded systems.
Is the RS-50-5 suitable for powering a 5V embedded computer or development platform?
It can be a fit for 5V embedded hardware when the combined load stays within 10A and 50W. The wide 88-264VAC input also supports use in systems that need broad AC input compatibility.
Can this model power multiple 5V peripherals in one enclosure?
Yes, as long as the total 5V load remains at or below 10A and 50W. Its constant-voltage output makes it appropriate for grouped 5V electronics that share the same power requirement.
Would the RS-50-5 work in an industrial cabinet with vibration and limited space?
It is designed for 5G vibration and has a compact 99.0 x 97.0 x 36.0 mm form factor. That combination can be useful in tighter control cabinets where a 5V, 10A supply is needed.
Can the RS-50-5 be used outdoors or in high-temperature environments?
The specified operating range is -25C to +70C, so it supports a broad temperature window. No IP rating is provided here, so the specs do not establish outdoor or washdown suitability.
