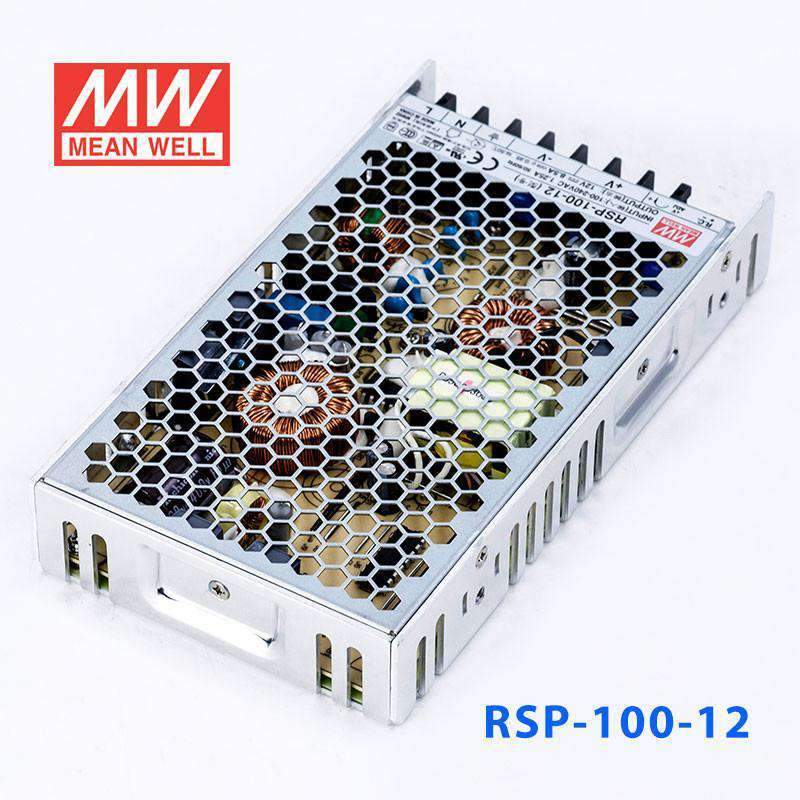

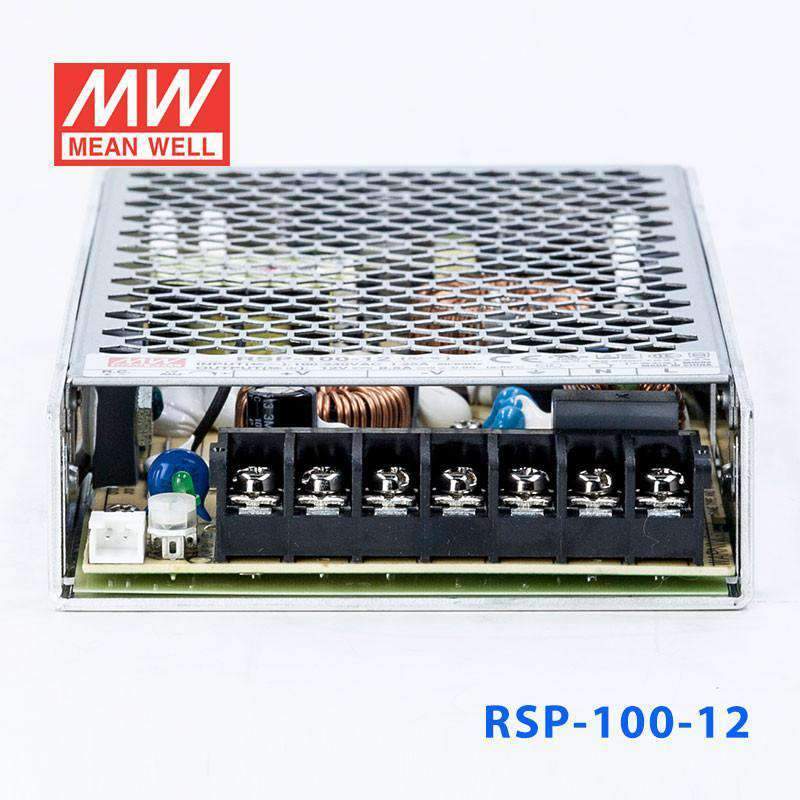

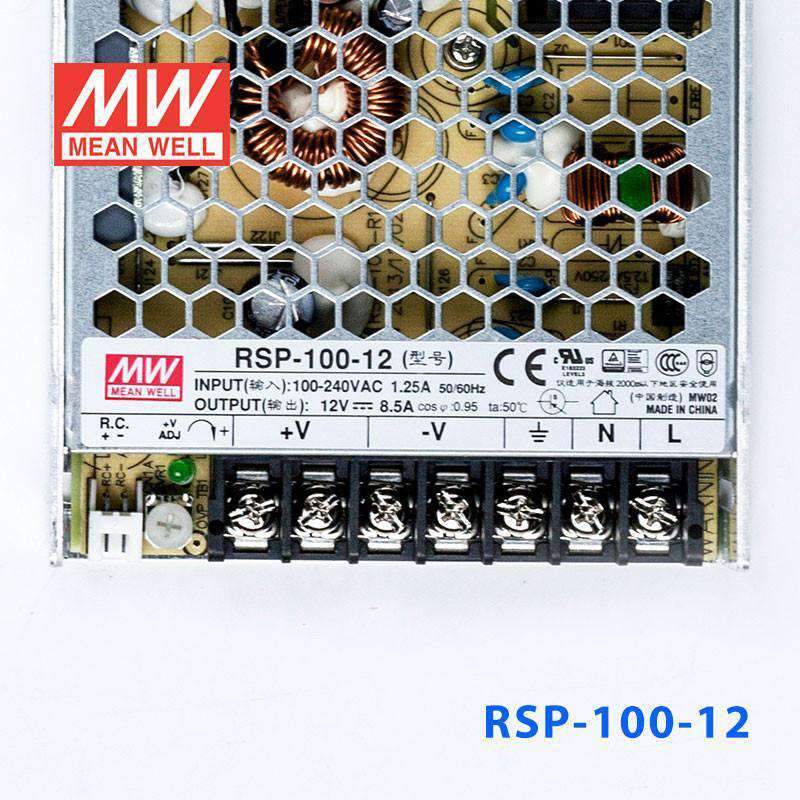

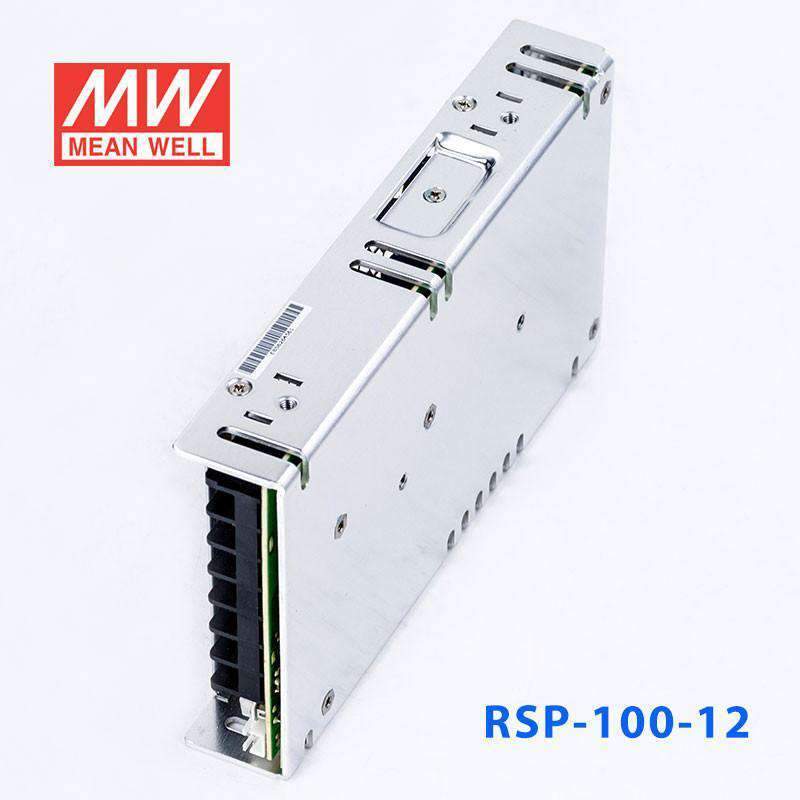

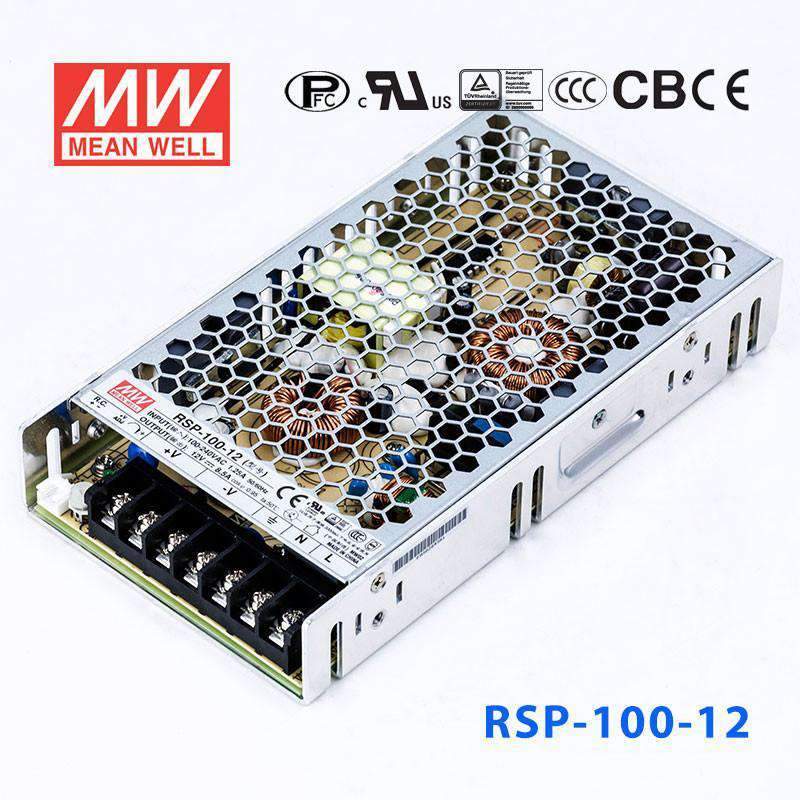

Mean Well RSP-100-12 Power Supply 100W 12V
EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024
Key Features
- ✓Universal AC input / Full range
- ✓Built-in active PFC function
- ✓Built-in constant current limiting circuit
- ✓Protections:Short circuit/ Overload / Over voltage / Over temperature
- ✓Cooling by free air convection
- ✓1U low profile 30mm
- ✓Remote ON-OFF control
- ✓LED indicator for power on
- ✓100% full load burn-in test
- ✓3 years warranty
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating102 Watt
-
Output Voltage12 Volt
-
Rated Current8.5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length7.05 in
-
Width3.9 in
-
Height1.18 in
-
Weight1.15 lb
::specification::
Frequently Asked Questions
Is the RSP-100-12 suitable for powering 12V industrial control panels or PLC systems?
Yes. The RSP-100-12 delivers 12V at up to 8.5A (102W total), which is well suited for 12V DC control panels, PLC rack power, and embedded automation systems. Its universal input range of 85–264VAC means it operates on both 110V and 230V mains without reconfiguration. The operating temperature range of -30°C to +70°C also suits factory floor environments.
Can the RSP-100-12 be used in IT rack enclosures?
The RSP-100-12 is a 1U low-profile unit measuring 179.0 × 99.0 × 30.0 mm, making it physically compatible with standard 1U rack enclosures. At 102W output and 0.52 kg, it is suitable for powering 12V rack accessories, network switches, or embedded servers where board-level 12V power is required.
What are the differences between RSP-100 voltage variants?
All RSP-100 variants share the same 179.0 × 99.0 × 30.0 mm 1U chassis and 85–264VAC input. The voltage options and their output current ratings are: RSP-100-3.3 (66W/3.3V/20A), RSP-100-5 (100W/5V/20A), RSP-100-7.5 (101.25W/7.5V/13.5A), RSP-100-12 (102W/12V/8.5A), RSP-100-13.5 (101.25W/13.5V/7.5A), RSP-100-15 (100.5W/15V/6.7A), RSP-100-24 (100.8W/24V/4.2A), RSP-100-27 (102.6W/27V/3.8A), RSP-100-48 (100.8W/48V/2.1A). Higher voltage variants deliver lower current at similar wattage. Select the variant matching your load's nominal voltage.
What is the operating temperature range of the RSP-100-12, and does it suit outdoor enclosures?
The RSP-100-12 is rated for -30°C to +70°C operation. It does not carry an IP rating for moisture ingress protection, so it should be housed in a sealed enclosure for outdoor or wet-location installations. For indoor industrial and commercial environments it operates without restriction across the full temperature range.
What certifications does the RSP-100-12 hold?
The RSP-100-12 carries BSMI, CB, CCC, CE, EAC, TÜV, and UL certifications. These cover North America, Europe, China, Taiwan, and Russia/CIS markets, simplifying compliance for multi-region product deployments.
