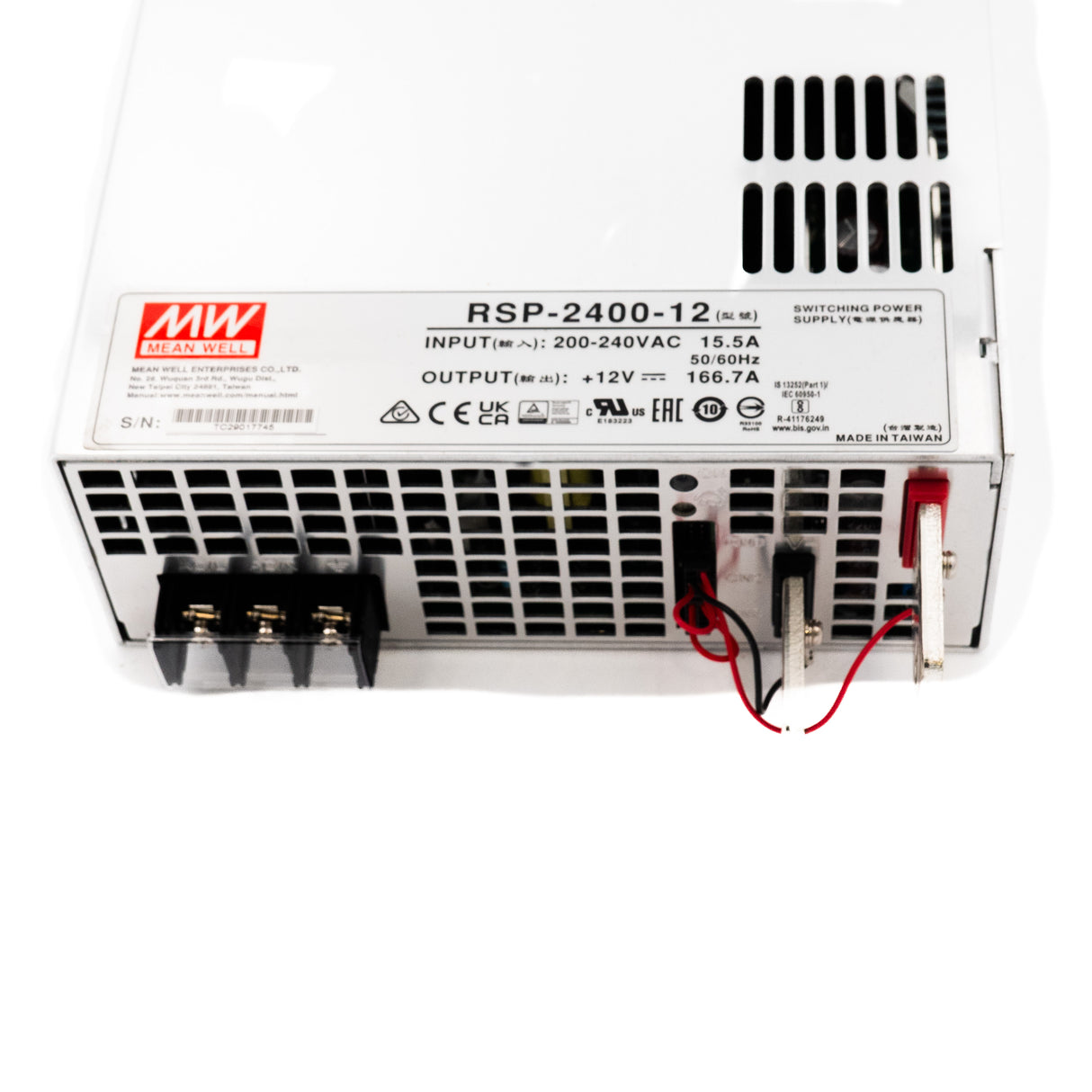

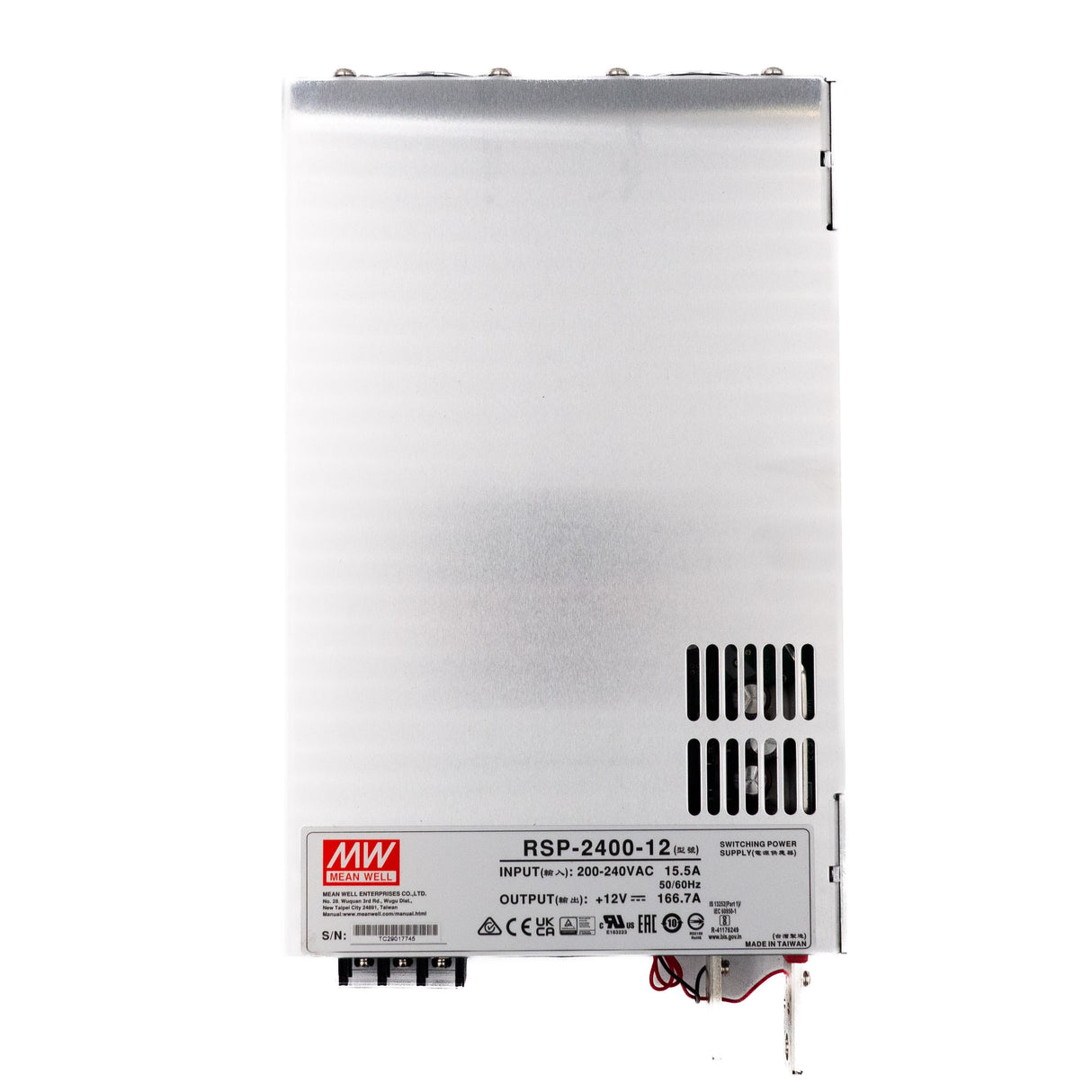

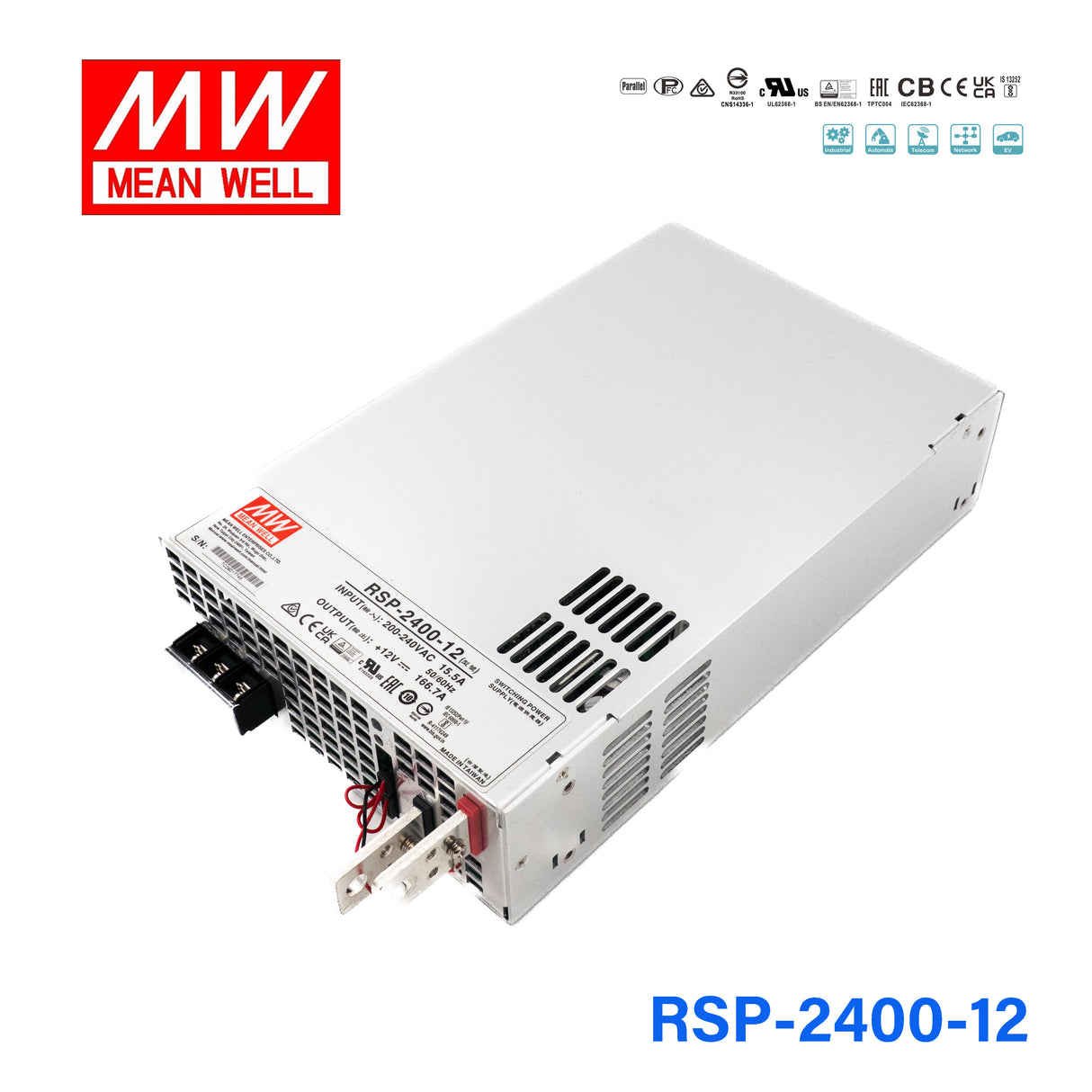

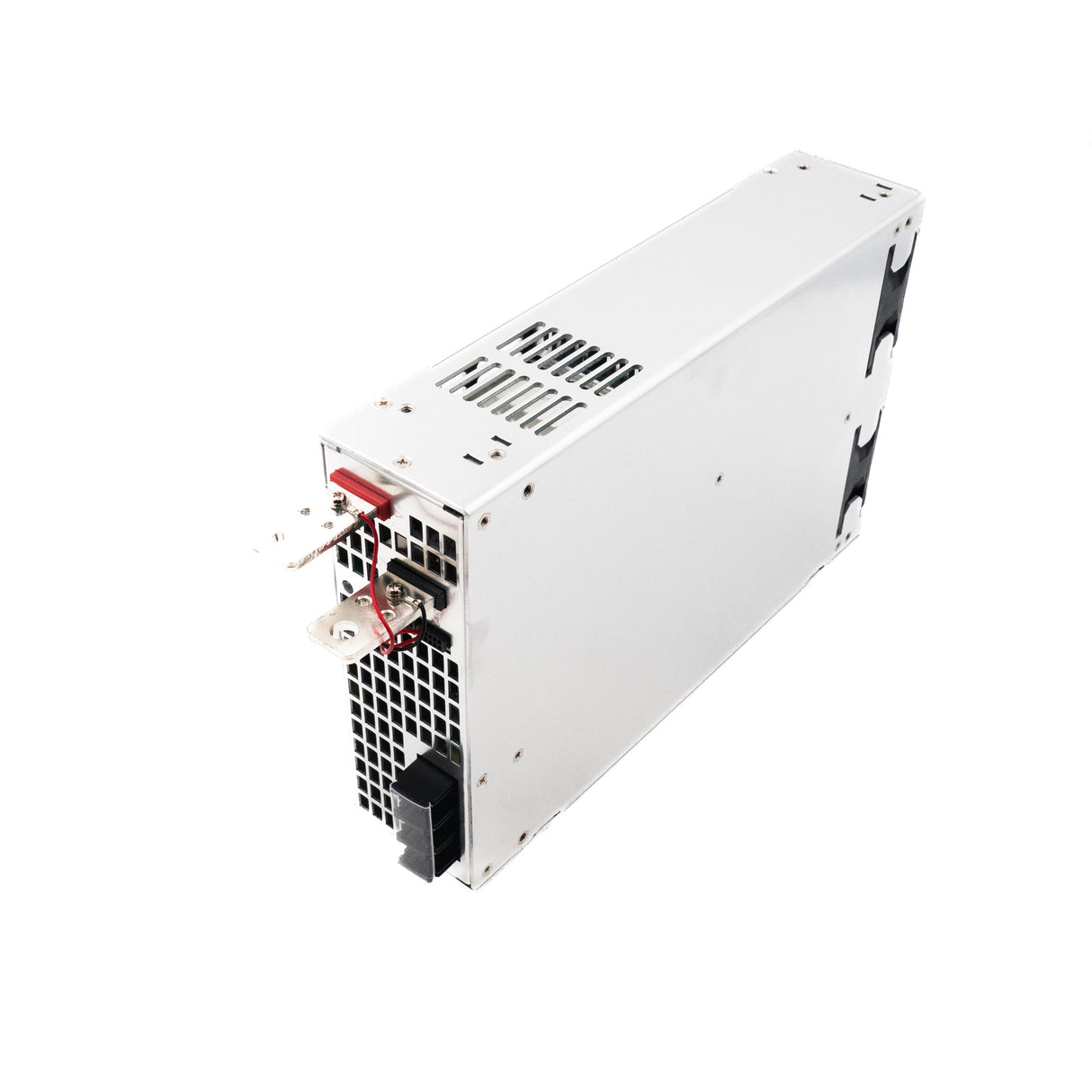

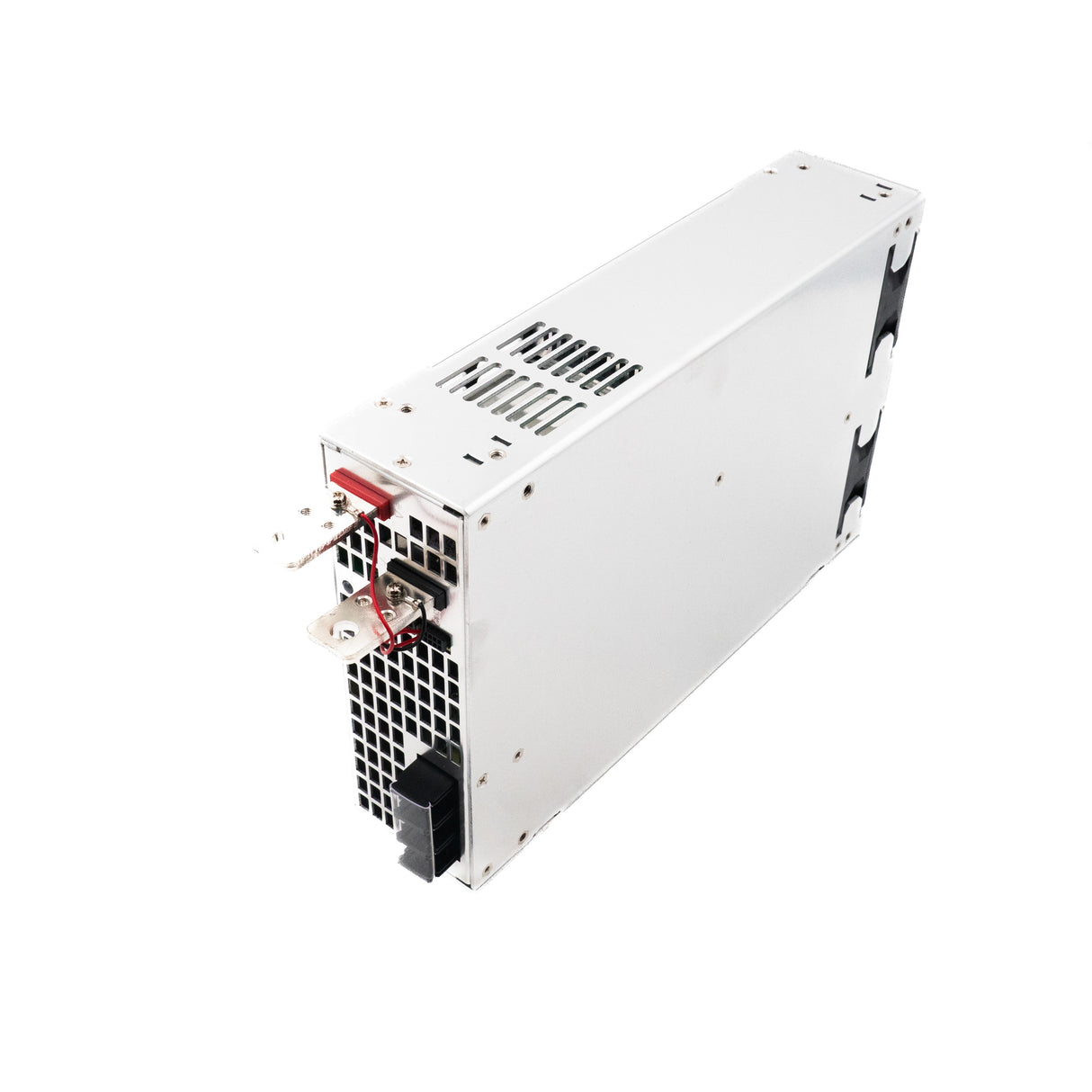

Mean Well RSP-2400-12 Power Supply 2000W 12V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RSP-2400-12 Power Supply 2000W 12V
The RSP-2400 is a 2400W Mean Well power converter (input range: 180~264VAC).
Key Features
- ✓ Input voltage range: 180~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL62368-1, TUV EN62368-1, EAC TP TC 004, BSMI CNS14336-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating2000.4 Watt
-
Output Voltage12 Volt
-
Rated Current166.7 Ampere
-
Input Voltage180V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty5 Year
-
Length10.94 in
-
Width7 in
-
Height2.5 in
-
Weight7.28 lb
::specification::
Frequently Asked Questions
What loads can the RSP-2400-12 power at 12V?
The RSP-2400-12 outputs 12V at up to 166.7A (2000.4W total), making it appropriate for high-current 12V loads such as telecom rectifier banks, large-scale embedded computing arrays, and industrial DC bus systems. Its 180-264VAC input requires a dedicated 200V-class AC supply.
What is the operating temperature range of the RSP-2400-12?
The RSP-2400-12 is rated for operation from -20°C to +70°C and is designed for indoor enclosed use. It carries UL, CE, TÜV, CB, BSMI, and EAC certifications and comes with a 5-year warranty.
How does the RSP-2400-12 compare to the RSP-3000-12 at the same voltage?
Both units output 12V and share the same 278.0 × 177.8 × 63.5 mm chassis. The RSP-2400-12 provides 2000.4W at 166.7A, while the RSP-3000-12 increases output to 2400W at 200A. Both require 180-264VAC input and support up to 2+1 active current sharing.
Does the RSP-2400-12 support redundant paralleling?
Yes. The RSP-2400-12 supports active current sharing with a 2+1 configuration, enabling N+1 redundancy for mission-critical 12V systems. This allows two units to share the load while a third operates as a hot standby.
