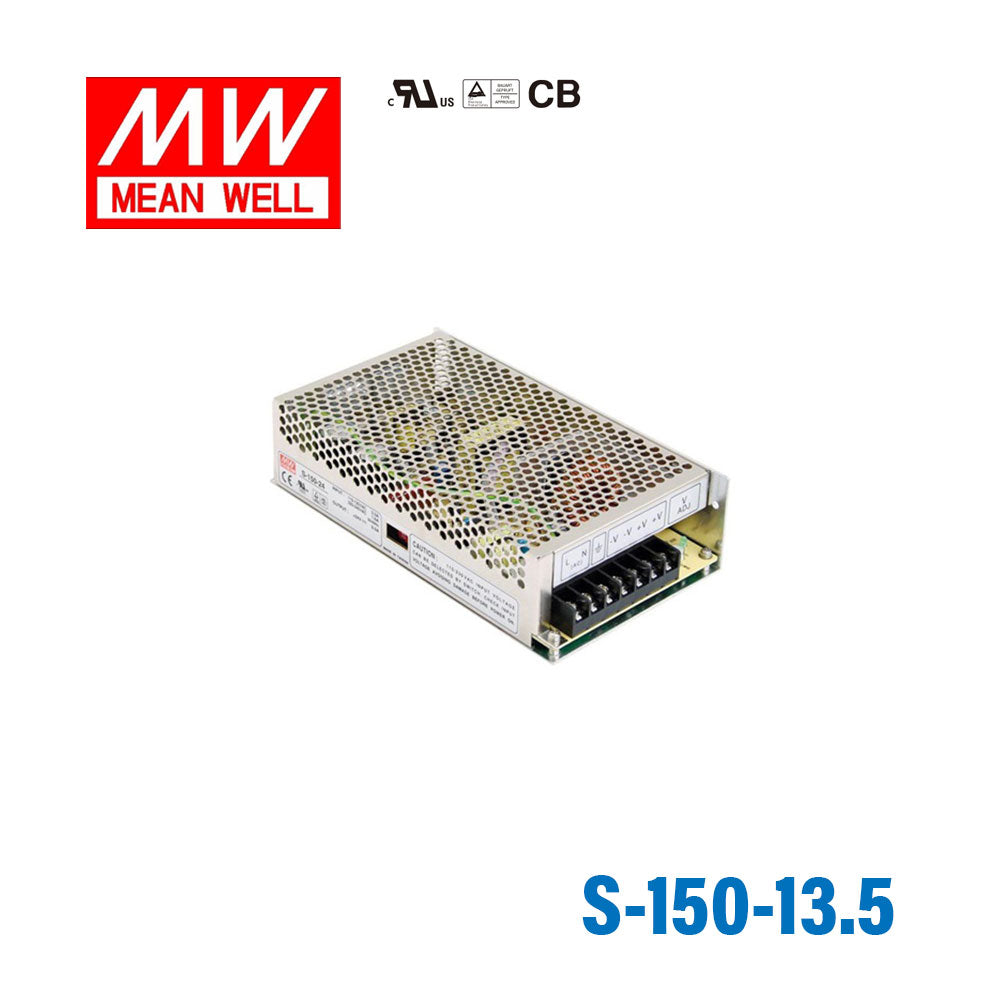

Mean Well S-150-13.5 Switching Power Supply
$18.72 USD
Unit price /
Unavailable
The S-150 is a 150W Mean Well power converter (input range: 88~132VAC, operating temperature: -10~+60℃).
Key Features
- ✓ Input voltage range: 88~132VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -10~+60℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: WITHSTAND VOLTAGE 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes UL1012, UL60950-1, TUV EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesS Series
-
Power Rating151.2 Watt
-
Output Voltage13.5 Volt
-
Rated Current11.2 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetCB,CCC,UL
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length7.83 in
-
Width4.33 in
-
Height1.97 in
-
Weight1.76 lb
