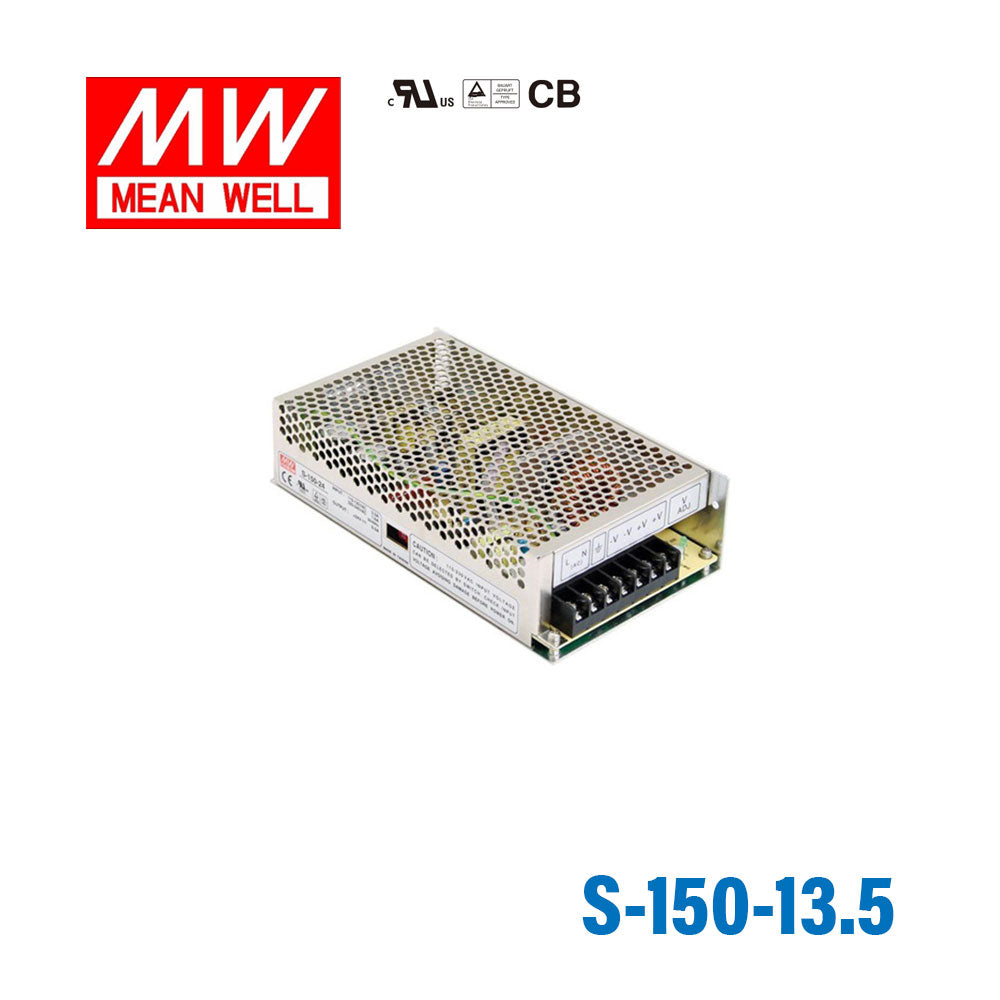

Mean Well S-150-13.5 Switching Power Supply
$18.72 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range |
| Protections: Short circuit / Overload / Over voltage |
| Cooling by free air convection |
| 100% full load burn-in test |
| Fixed switching frequency at 25KHz |
| 2 years warranty |
General Specification
| Line regulation (max.) | ± 0.3% |
| Load regulation (max.) | ± 0.3% |
| Overload protection Range | 105 ~ 150% rated output power |
| Overload protection Type | Shut down o/p voltage, re-power on to recover |
| Over-voltage protection | Shut down o/p voltage, re-power on to recover |
| Withstand voltage | I/P-O/P:3KVAC | I/P-FG:1.5KVAC | O/P-FG:0.5KVAC |
| Isolation resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH |
| Working temperature | -10 ~ +60 ℃ (Refer to "Derating Curve") |
| Safety standards | UL1012, UL60950-1, TUV EN60950-1 approved |
| Dimension (LxWxH) (mm) | 199*110*50mm (L*W*H) |
| Packing | 0.8Kg; 16pcs/13.8Kg/0.95CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesS Series
-
Power Rating151.2 Watt
-
Output Voltage13.5 Volt
-
Rated Current11.2 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetCB,CCC,UL
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length7.83 in
-
Width4.33 in
-
Height1.97 in
-
Weight1.76 lb
File Downloads
File Downloads
::specification::
