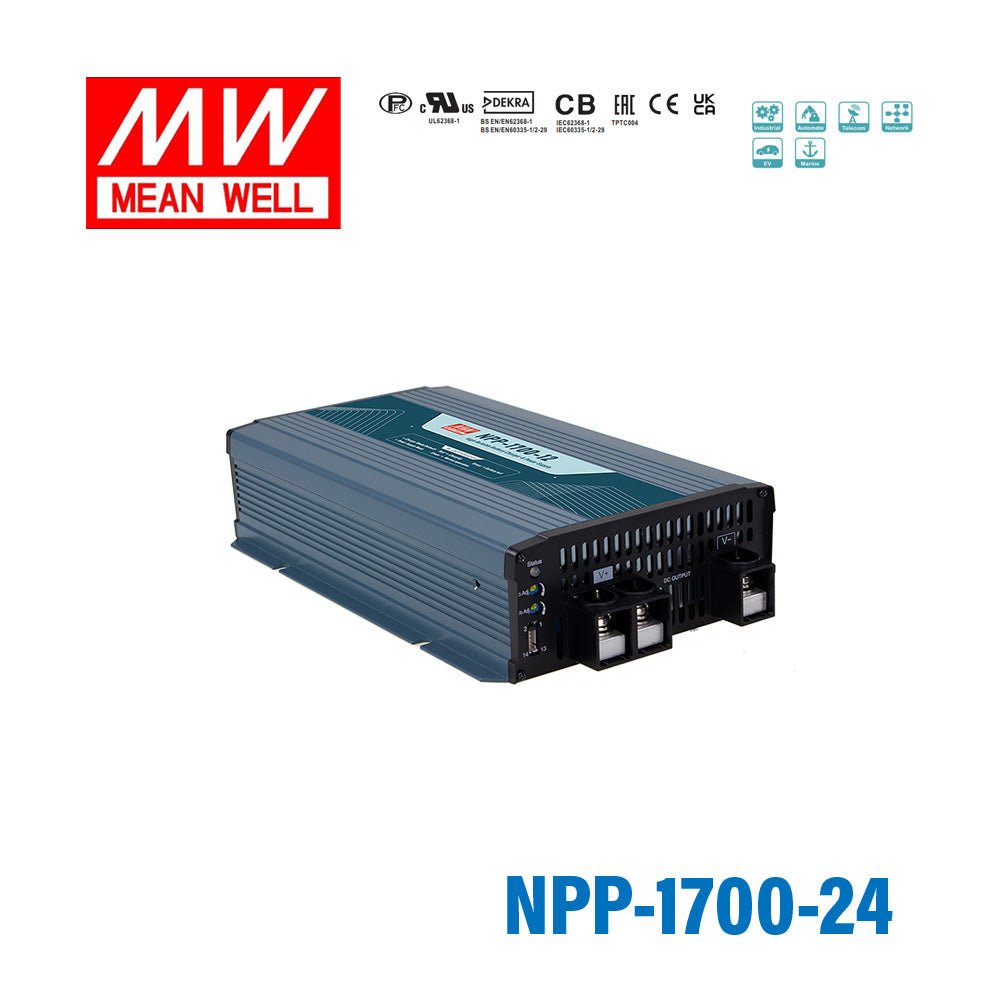

Mean Well NPP-1700-24 1680W 24V Battery Charge& Power Supply 2-in-1, Selectable via Jumper 50A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NPP-1700-24 1680W 24V Battery Charge& Power Supply 2-...
The NPP-1700 is a 1700W Mean Well battery charger (input: 90~264VAC, operating temperature: -30~+70°C).
Key Features
- ✓ Input voltage: 90~264VAC
- ✓ Output voltage (max): 28.8V
- ✓ Rated output current: 50A
- ✓ Operating temperature: -30~+70°C
- ✓ Safety certifications: CB, CCC, CE, EAC, ENEC, UL
- ✓ 3 year warranty
-
BrandMean Well
-
SeriesNPP Series
-
Power Rating1700 Watt
-
Output Voltage28.8 Volt
-
Rated Current50 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length11.81 in
-
Width7.24 in
-
Height2.76 in
-
Weight6.53 lb
::specification::
Frequently Asked Questions
What is the Mean Well NPP-1700-24 designed for?
The NPP-1700-24 is a 2-in-1 unit that can operate as either a battery charger or a power supply, selectable by jumper. It is intended for higher-power 24V applications where buyers want one model that can support charging mode or regulated DC output mode. This makes it relevant for commercial and industrial use cases that need flexibility within a single platform.
What are the main output ratings of the NPP-1700-24?
This model is rated for 1680W output power and 50A rated current. The listed output voltage for this version is 28.8V, which aligns with 24V system applications. It also features adjustable output voltage and output current via front-panel controls.
Can the NPP-1700-24 be used with different battery chemistries?
Yes, the product description states that it is suitable for both lead-acid and li-ion batteries. It also includes a 3-stage charging curve when used in charging mode. Buyers comparing charger platforms should confirm their broader system requirements, but this model is positioned for both of those battery types.
How adjustable is the NPP-1700-24 for different output requirements?
The NPP-1700 series offers ultra-wide output voltage ranges, with front-panel adjustment ranges of 10.5 to 21V, 21 to 42V, and 42 to 80V depending on the version. This NPP-1700-24 version is the 24V class model with a listed 28.8V output. Output current is also adjustable from 50% to 100%, which helps buyers match the unit to their application requirements.
Is the NPP-1700-24 suitable for harsh or demanding environments?
This model is specified for operation from -30°C to +70°C, which is a wide operating temperature range for demanding environments. It also uses a thermal-controlled cooling fan to reduce noise while supporting thermal management. For buyers evaluating durability, the unit also includes built-in protections for short circuit, overload, over voltage, and over temperature.
What certifications and warranty does the NPP-1700-24 include?
The NPP-1700-24 is described as complying with ITE IEC/EN/UL 62368-1 and household appliance EN60335-1/-2-29 safety standards. The listed approvals include CB, UL, DEKRA, EAC, CE, and UKCA. Mean Well also specifies a 3-year warranty for this model.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other NPP-1700 Models
2 other models| Model | Power | Battery Type | Battery Voltage | Charging Current | Price | |
|---|---|---|---|---|---|---|
| Mean Well NPP-1700-48 1680W 48V Battery Charge& Power Supply 2-in-1, Selectable via Jumper 25A | 1700 Watt | Lithium and Lead Acid Battery | — | — | $319.75 | View |
| Mean Well NPP-1700-12 1428W 12V Battery Charge& Power Supply 2-in-1, Selectable via Jumper 85A | 1700 Watt | Lithium and Lead Acid Battery | — | — | $319.75 | View |
